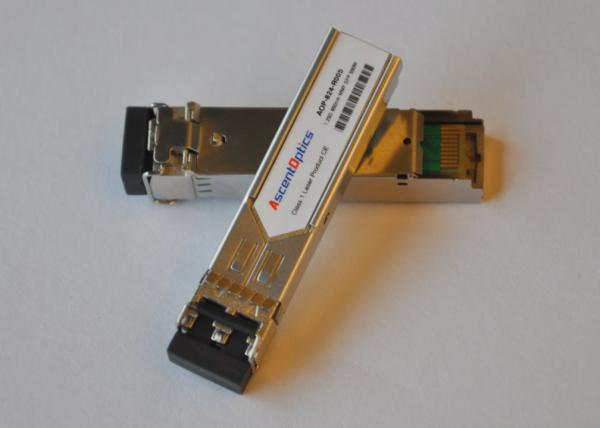

HD-SDI Video SFP Transceiver Single Transmitter 1.5G For SMPTE
HD-SDI Video SFP Transceiver Single Transmitter 1.5G For SMPTE
HD-SDI Video SFP Transceiver Single Transmitter 1.5G For SMPTE
HD-SDI Video SFP Transceiver Single Transmitter 1.5G For SMPTE
HD-SDI Video SFP Transceiver Single Transmitter 1.5G For SMPTE
HD-SDI Video SFP Transceiver Single Transmitter 1.5G For SMPTE
HD-SDI Video SFP Transceiver Single Transmitter 1.5G For SMPTE
HD-SDI Video SFP Transceiver Single Transmitter 1.5G For SMPTE
HD-SDI Video SFP Transceiver Single Transmitter 1.5G For SMPTE
HD-SDI Video SFP Transceiver Single Transmitter 1.5G For SMPTE
Specifications
Place of Origin :
Shenzhen,China
Brand Name :
AscentOptics/Neuter, OEM
Certification :
CE,FCC,RoHS
Model Number :
AVP1G1311-SDI10
MOQ :
1PCS
Price :
Get Latest Price
Packaging Details :
10 or 20PCS /Plastic tray, 1PC/Gift box
Delivery Time :
Within 1-3 working days after PO confirmed
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
50,000pcs/Month
Product Name :
Video SFP Transceiver
Sensitivity(dbm) :
-22
Datarate :
50-3000 (Mb/s)
Application :
3G Video System
Connector :
SC
Distance :
10Km
Description


HD-SDI Video SFP Transceiver Single Transmitter 1.5G For SMPTE


Specification:

P/N

AVP1G1311-SDI10

Datarate

50~1500 (Mb/s)

Number of optical input

1

Number of optical output

1

Typical powervalue (dbm)

-3~10

Sensitivity(dbm)

-22

Estimated reach @3Gb/s (km)

10Km

Connector

LC

Application

3G Video System

Operating Temperature

0℃~ +70℃

Voltage Supply

3.3V

Certification

CE/FCC/RoHS/TUV/UL

Brand

AscentOptics/Neuter, OEM

Standards

SMPTE 292M HD-SDI/ SMPTE 348M HD-SDTI

SMPTE 259M SD-SDI/ SMPTE 314M SD-SDTI


SMPTE video SFP 1.5G 1310nm FP/PIN transceiver 3G/HD-SDI/SD-SDI

Description:

1. SMPTE 424M/297M compliant
2. Robust Error free transmission of signals from 50Mbps to 3.0Gbps
3. Supports video pathological patterns for 3G/HD-SDI/SD-SDI
4. PIN defination is compatible with MSA
5. SFP Package.Hot-pluggable
6. Metal enclosure for lower EMI
7. +3.3V single power supply.
8. Digital diagnostics and control via I²C interface, including:
1)Monitoring laser bias current, average output power, supply voltage and temperature
2)Alarm reporting when transmitter is at fault
3)Module ID polling
9. Compliant ROHS and lead free



Applications

  1. SMPTE 297-2006 Compliant
  2. Electrical-to-Optical Interfaces
  3. 3G Video System

Competitive advantage:
1. Excellent quality and 3 years warranty
2. Competitive pricing
3. Full compatible (CISCO/HP/Extreme/Juniper/H3C…)
4. OEM/ODM Customized label
5. Keep stock,Fast delivery

HD-SDI Video SFP Transceiver Single Transmitter 1.5G For SMPTE
