Small Form Pluggable 10gbase-ER SFP+ Optical Transceiver 1550nm For SMF


Specification:

10G SFP+ ER 1550nm 40KM Single-mode Datacom 10G Ethernet/ 2x 4x 8x FC

Description:

The AscentOptics 10GBASE SFP+ modules offer customers a wide variety of 10 Gigabit Ethernet connectivity options for data center, enterprise wiring closet, and service provider transport applications.It is a mallest 10G form factor

Supports 10GBASE Ethernet and OTU2/OTU2e

Hot-swappable input/output device that plugs into an Ethernet SFP+ port of a switch. Provides flexibility of interface choice .Supports "pay-as-you-populate" model. Supports digital optical monitoring capability

Optical interoperability with 10GBASE XENPAK, 10GBASE X2, and 10GBASE XFP interfaces on the same link

Features

• 10Gb/s serial optical interface compliant to 802.3ae 10GBASE-ER/EW

• Electrical interface compliant to SFF-8431 specifications for enhanced 8.5 and 10 Gigabit small form factor pluggable module “SFP+”

• 1550nm cooled EML transmitter with TEC, PIN photo-detector

• 2-wire interface for management specifications compliant with SFF 8472 digital diagnostic monitoring interface for optical transceivers

• perating case temperature: 0 to 70 °C

• ll-metal housing for superior EMI performance

• Low power consumption, less than 1.5w

• Advanced firmware allow customer system encryption information to be stored in transceiver

• Cost effective SFP+ solution, enables higher port densities and greater bandwidth

• RoHS compliant

Applications

• High-speed storage area networks
• Computer cluster cross-connect
• Custom high-speed data pipes

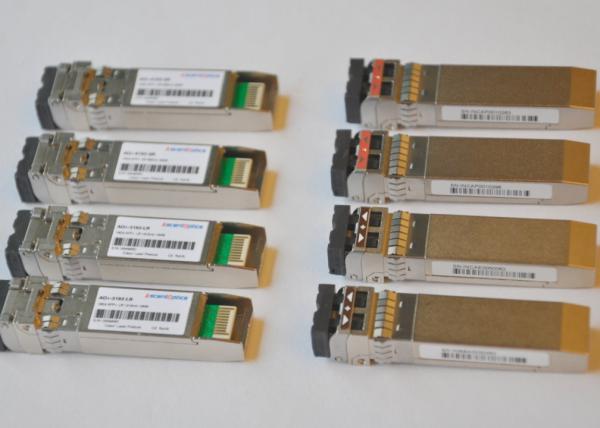

AscentOptics 10G SFP+

Competitive advantage:

1. Excellent quality and 3 years warranty
2. Competitive pricing
3. Full compatible (CISCO/HP/Extreme/Juniper/H3C…)
4. OEM/ODM Customized label
5. Keep stock,Fast delivery
