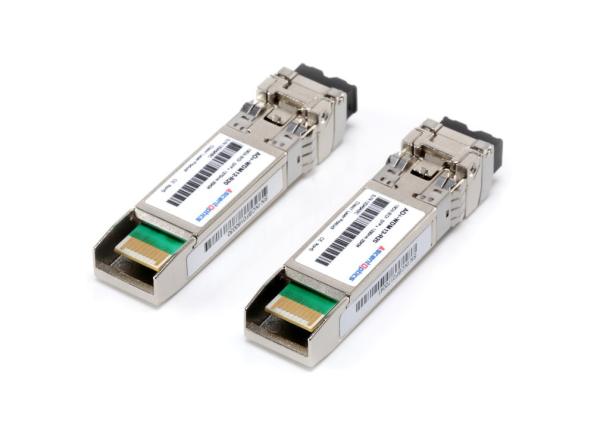

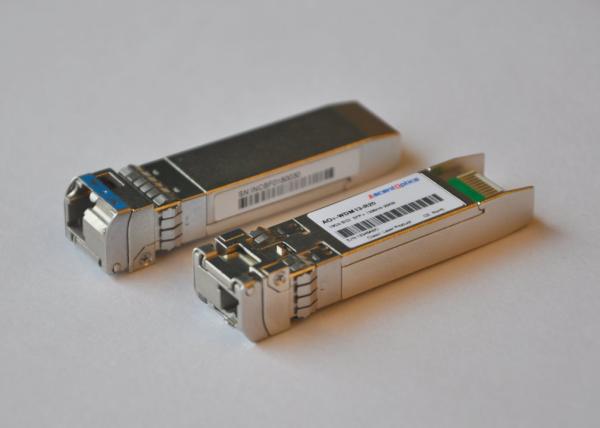

RX 1330nm 20KM SMF SFP+ Optical Transceiver 10G BIDI WDM TX

Specifications:

10G BIDI (WDM) SFP+ TX 1270nm/RX 1330nm 20KM Single-mode Datacom 10G Ethernet/ 2x 4x 8x FC

Description:

The AscentOptics 10GBASE SFP+ modules offer customers a wide variety of 10 Gigabit Ethernet connectivity options for data center, enterprise wiring closet, and service provider transport applications.It is a mallest 10G form factor

Supports 10GBASE Ethernet and OTU2/OTU2e

Hot-swappable input/output device that plugs into an Ethernet SFP+ port of a switch. Provides flexibility of interface choice .Supports "pay-as-you-populate" model. Supports digital optical monitoring capability

Optical interoperability with 10GBASE XENPAK, 10GBASE X2, and 10GBASE XFP interfaces on the same link

Features

• 10Gb/s serial optical interface compliant to 802.3ae 10GBASE-LR, single LC connector for bi-directional application, over 20km SMF

• Electrical interface compliant to SFF-8431 specifications for enhanced 8.5 and 10 Gigabit small form factor pluggable module “SFP+”

• 1270/1330nm DFB transmitter, PIN photo-detector

• 2-wire interface for management specifications compliant with SFF 8472 digital diagnostic monitoring interface for optical transceivers

• Part number(-40°C to 85°C):

• -AO+-WDM12-R20, 1270TX/1330RX

• -AO+-WDM13-R20, 1330TX/1270RX

• line side, client side loopback function

• Advanced firmware allow customer system encryption information to be stored in transceiver

• ROHS compliant

Applications

• High-speed storage area networks
• Computer cluster cross-connect
• Custom high-speed data pipes

AscentOptics SFP+

Competitive advantage:

1. Excellent quality and 3 years warranty
2. Competitive pricing
3. Full compatible (CISCO/HP/Extreme/Juniper/H3C…)
4. OEM/ODM Customized label
5. Keep stock,Fast delivery
