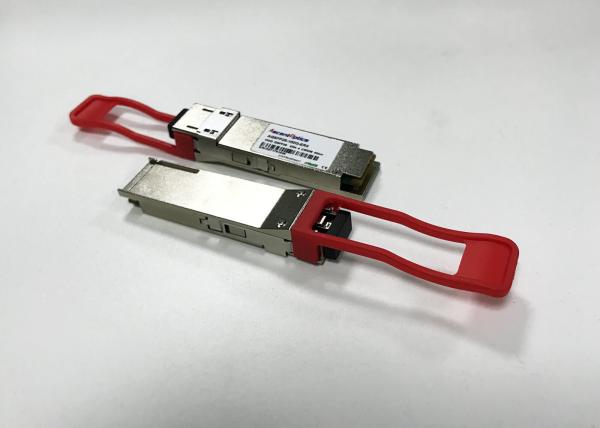

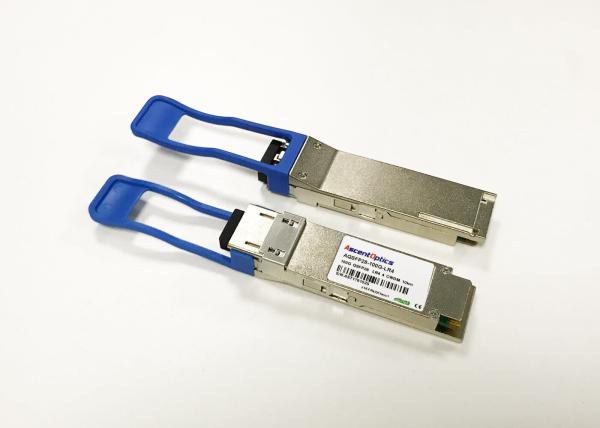

Compact SMF 10Km CWDM QSFP28 Optical Transceiver 100G / ps AQSFP -100G-LR4
Compact SMF 10Km CWDM QSFP28 Optical Transceiver 100G / ps AQSFP -100G-LR4
Compact SMF 10Km CWDM QSFP28 Optical Transceiver 100G / ps AQSFP -100G-LR4
Compact SMF 10Km CWDM QSFP28 Optical Transceiver 100G / ps AQSFP -100G-LR4
Specifications
Place of Origin :
Shenzhen,China
Brand Name :
AscentOptics/Neuter, OEM
Certification :
CE/FCC/RoHS/TUV/UL
Model Number :
AQSFP-100G-LR4
MOQ :
1PCS
Packaging Details :
10 or 20PCS /Plastic tray, 1PC/Gift box
Delivery Time :
Within 1-3 working days after PO confirmed
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
50,000pcs/Month
Product name :
QSFP28 Optical Transceiver
Datarate :
100G/ps
Distance :
10KM
Wavelenth :
4 CWDM Lane 1270 1290 1310 1330
Application :
100G Ethernet/ 40G Infiniband
DDM/DOM :
YES
Description
Compact SMF 10Km CWDM QSFP28 Optical Transceiver 100G / ps AQSFP -100G-LR4
Description:

This product is a 100Gb/s transceiver module designed for optical communication applications compliant to 100GBASE-LR4 of the IEEE P802.3ba standard. The module converts 4 input channels of 25Gb/s electrical data to 4 channels of LAN WDM optical signals and then multiplexes them into a single channel for 100Gb/s optical transmission. Reversely on the receiver side, the module de-multiplexes a 100Gb/s optical input into 4 channels of LAN WDM optical signals and then converts them to 4 output channels of electrical data.
The central wavelengths of the 4 LAN WDM channels are 1295.56, 1300.05, 1304.58 and 1309.14 nm as members of the LAN WDM wavelength grid defined in IEEE 802.3ba. The high performance cooled LAN WDM

DFB transmitters and high sensitivity PIN receivers provide superior performance for 100Gigabit Ethernet applications up to 10km links and compliant to optical interface with IEEE802.3ba Clause 88 100GBASE-LR4 requirements.
The product is designed with form factor, optical/electrical connection and digital diagnostic interface according to the QSFP+ Multi-Source Agreement (MSA). It has been designed to meet the harshest external operating conditions including temperature, humidity and EMI interference.


Features

  • 4 channels full-duplex transceiver modules

  • Transmission data rate up to 26Gbps per channel

  • 4 x 26Gb/s DFB-based LAN-WDM Cooling transmitter

  • 4 channels PIN ROSA

  • Internal CDR circuits on both receiver and transmitter channels

  • Low power consumption <3.5W

  • Hot Pluggable QSFP form factor

  • Duplex LC receptacles

  • Built-in digital diagnostic functions

  • Operating case temperature 0°C to +70°C

  • 3.3V power supply voltage

  • RoHS 6 compliant(lead free)

  • Up to reach 10km for G.652 SMF

Applications

  • 100GBASE-LR4 Ethernet Links
  • Infiniband QDR, SDR and DDR interconnects
  • Client-side 100G Telecom connections
  • IEEE 802.3ba 100GBASE LR4

Specification:

P/N

AQSFP28-100G-LR4

Datarate

10G/ps

Distance

10KM

Wavelenth

4 CWDM Lane 1270 1290 1310 1330

Media

SMF

DDM/DOM

YES

Connector

LC

Application

100G Ethernet/ 40G Infiniband

Operating Temperature

0℃~ +70℃

Voltage Supply

3.3V

Certification

CE/FCC/RoHS/TUV/UL

Brand

AscentOptics/Neuter, OEM

Ordering Information

Part Number Product Description
AQSFP28-100G-LR4 100GE, QSFP28, 100GBASE-LR4, LAN-WDM 10Km


Competitive advantage:


1. OEM/ODM Customized label
2. Competitive pricing
3. Full compatible (CISCO/HP/Extreme/Juniper/H3C…)
4. Excellent quality and 3 years warranty
5. Keep stock,Fast delivery
