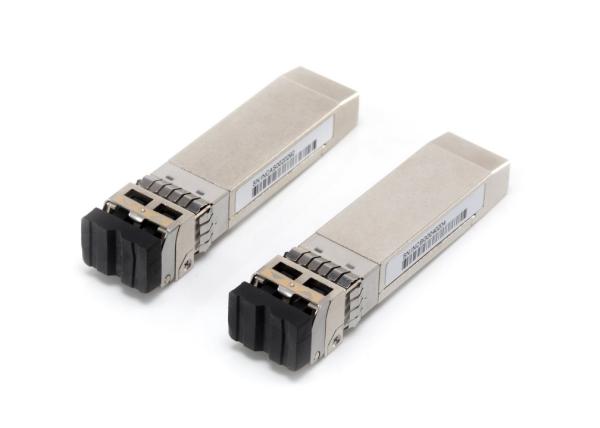

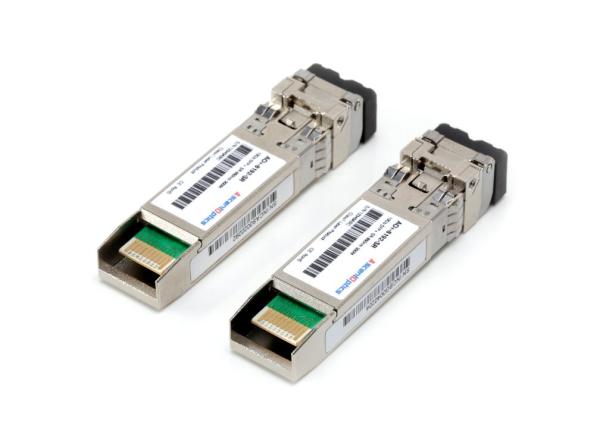

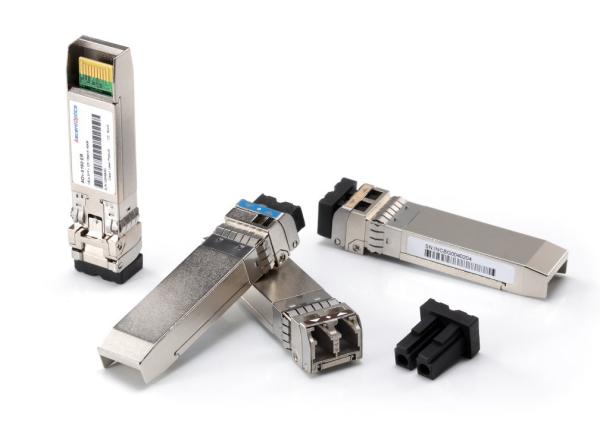

10GBASE-SR CISCO SFP+ Optical Transceiver 850nm SFP-10G-SR

Specification:

Description:

10GBASE-SR SFP+ transceiver module for MMF, 850-nm wavelength, LC duplex connector

The AscentOptics 10GBASE SFP+ modules offer customers a wide variety of 10 Gigabit Ethernet connectivity options for data center, enterprise wiring closet, and service provider transport applications.It is a mallest 10G form factor

Supports 10GBASE Ethernet and OTU2/OTU2e

Hot-swappable input/output device that plugs into an Ethernet SFP+ port of a switch. Provides flexibility of interface choice .Supports "pay-as-you-populate" model. Supports digital optical monitoring capability

Optical interoperability with 10GBASE XENPAK, 10GBASE X2, and 10GBASE XFP interfaces on the same link

Features

• 10Gb/s serial optical interface compliant to 802.3ae 10GBASE-SR
• Electrical interface compliant to SFF-8431 specifications for enhanced 8.5 and 10 Gigabit small form factor pluggable module “SFP+”
• 850nm VCSEL transmitter, PIN photo-detector
• 2-wire interface for management specifications compliant with SFF 8472 digital diagnostic monitoring interface for optical transceivers
• Operating case temperature: 0 to 70°C
• ll-metal housing for superior EMI performance
• Low power consumption
• Advanced firmware allow customer system encryption information to be stored in transceiver
• Cost effective SFP+ solution, enables higher port densities and greater bandwidth
• RoHS compliant

Applications

• High-speed storage area networks
• Computer cluster cross-connect
• Custom high-speed data pipes

Cisco 10G SFP+

Competitive advantage:

1. Excellent quality and 3 years warranty
2. Competitive pricing
3. Full compatible (CISCO/HP/Extreme/Juniper/H3C…)
4. OEM/ODM Customized label
5. Keep stock,Fast delivery
