Er4 Cfp2 Transceiver For Ethernet , 100g Optical Modules 3 Years Warranty
Er4 Cfp2 Transceiver For Ethernet , 100g Optical Modules 3 Years Warranty
Er4 Cfp2 Transceiver For Ethernet , 100g Optical Modules 3 Years Warranty
Er4 Cfp2 Transceiver For Ethernet , 100g Optical Modules 3 Years Warranty
Specifications
Brand Name :
AscentOptics/Neuter, OEM
Model Number :
ACFP2-100G-ER4
Certification :
CE/FCC/RoHS/TUV/UL
Place of Origin :
Shenzhen,China
MOQ :
1PCS
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
1000pcs/Month
Delivery Time :
Within 1-3 working days after PO confirmed
Packaging Details :
10 or 20PCS /Plastic tray, 1PC/Gift box
Description

Er4 Cfp2 Transceiver For Ethernet , 100g Optical Modules 3 Years Warranty

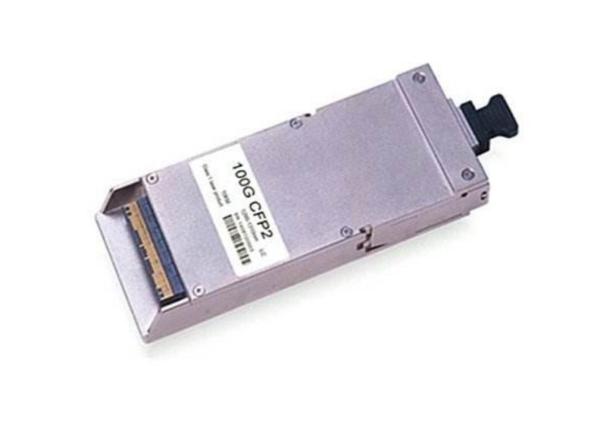

100G CFP2 ER4 FOR ETHERNET CFP2 ER4 1310nm 40KM Optical Transceiver

Specification:

P/N ACFP2-100G-ER4
Datarate 100G/ps
Distance 40KM
Wavelenth 4 CWDM Lane 1270 1290 1310 1330
Media SMF
DDM/DOM YES
Connector LC
Application 100G Ethernet/ 100G Metro Network
Operating Temperature 0℃~ +70℃
Voltage Supply 3.3V
Certification CE/FCC/RoHS/TUV/UL
Brand AscentOptics/Neuter, OEM

Description:

100G CFP2 ER4 FOR ETHERNET CFP2 ER4 1310nm 40KM Optical Transceiver

100GBASE-LR4 CFP2 is designed for use in 100 Gigabit Ethernet and 4x28G OTN client interfaces over single mode fiber.
They are compliant with the CFP MSA1, IEEE 802.3ba 100GBASE-LR42 and OTU4 4I1-9D1F requirements specified in ITU-T Recommendations G.959.1/G.709 and Supplement 39 (G.sup39). Digital diagnostics functions are available via the MDIO interface, as specified by the CFP MSA. The transceiver is RoHS-6 compliant and lead-free per Directive 2002/95/EC3.



Applications
  • Hot-pluggable CFP2 form factor
  • Supports 103.1Gb/s and 112Gb/s aggregate bit rates
  • Power dissipation < 8W
  • RoHS-6 compliant (lead-free)
  • Commercial case temperature range of 0°C to 70°C
  • Single 3.3V power supply
  • Maximum link length of 10km on Single Mode Fiber (SMF)
  • 4x28Gb/s DFB-based LAN-WDM transmitter
  • 4x28G electrical interface
  • Duplex LC receptacles

Competitive advantage:


1. Excellent quality and 3 years warranty
2. Competitive pricing
3. Full compatible (CISCO/HP/Extreme/Juniper/H3C…)
4. OEM/ODM Customized label
5. Keep stock,Fast delivery
