6G SFP+ 1310nm LC 10km SFP Optical Transceiver Module
6G SFP+ 1310nm LC 10km SFP Optical Transceiver Module
6G SFP+ 1310nm LC 10km SFP Optical Transceiver Module
6G SFP+ 1310nm LC 10km SFP Optical Transceiver Module
6G SFP+ 1310nm LC 10km SFP Optical Transceiver Module
6G SFP+ 1310nm LC 10km SFP Optical Transceiver Module
Specifications
Brand Name :
Opticking
Model Number :
KSFP06-0031SL10X
Certification :
CE/FCC/RoHS/TUV/UL
Place of Origin :
China
MOQ :
100
Payment Terms :
L/C, T/T
Supply Ability :
15000Piece/Pieces per Month
Delivery Time :
Within 1-8 working days after PO confirmed
Product Name :
6G SFP+ 1310nm 10KM LC Optical Module
Supply Voltage :
3.3V
Wavelength :
1310nm
Transmission Distance :
10KM
Fiber Type :
SMF
DDM :
Yes
Description

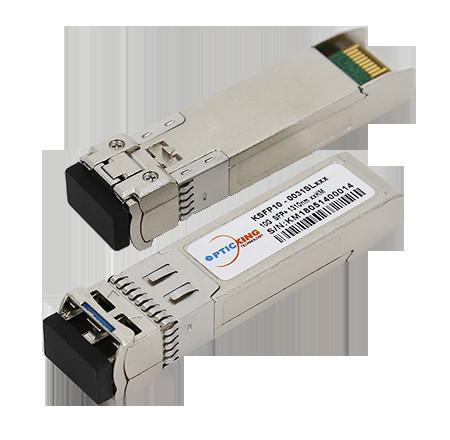

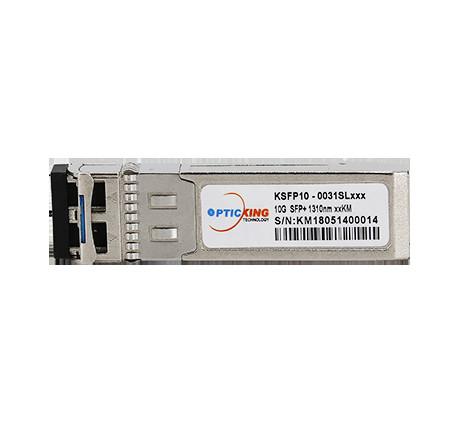

6G SFP+ 1310nm 10km LC Optical Module Optical Transceiver

Description and Characteristics

This transceiver is hot pluggable 3.3V Small-Form-Factor transceiver module. It designed expressly for high-speed communication applications that require rates up to 6Gbps,it designed to be compliant

with SFF-8472 and SFP+ MSA. The module data link up to 10km in single mode fiber.

OPTICKING SFP+ transceivers provide a unique enhanced digital diagnostic monitoring interface, which allows real-time access to device operating parameters such as transceiver temperature,laser bias current, transmitted optical power, received optical power and transceiver supply voltage.It also defines a sophisticated system of alarm and warning flags, which alerts end-users when particular operating parameters are outside of a factory set normal range.

Product Features

Class I laser product EN 60528-1-standards

Duplex LC connector

Hot pluggable

Low Power Dissipation

3.3V single Power supply

Operation Temperature Range : X means C( 0~70°C) ; I(-40~85°C).

RoHS-6 Compliant

Ordering Information

Product Number

Wavelength

Data rate

Distance

TX Power

RX Sens

LD

PD

DDM

KSFP060085ML03X

850nm

6.25Gb/s

300M

-9~-2dbm

<-9.9dbm

VCSEL

PIN

YES

KSFP060031SL10X

1310nm

6.25Gb/s

10KM

-6.5~-0.5dbm

<-14dbm

DFB

PIN

YES

KSFP080085ML03X

850nm

8.5Gb/s

300M

-6~-1dbm

<-10dbm

VCSEL

PIN

YES

KSFP080031SL10X

1310nm

8.5Gb/s

10KM

-8.2~0.5dbm

<-14dbm

DFB

PIN

YES
