Specifications
Brand Name :
SFT
Model Number :
MZ45
Place of Origin :
China
MOQ :
negotiable
Price :
negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
50000PCS/MONTH
Delivery Time :
20-45DAYS
Packaging Details :
carton,pallet
Material :
Chrome steel
Outer Diameter :
125 mm
Torque capacity :
950Nm
Width :
25-220 mm
Type :
Sprag
Inner Diameter :
45mm
Description

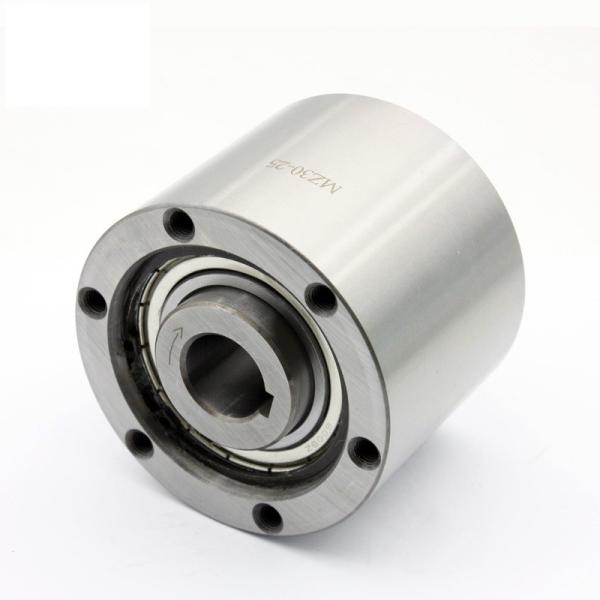

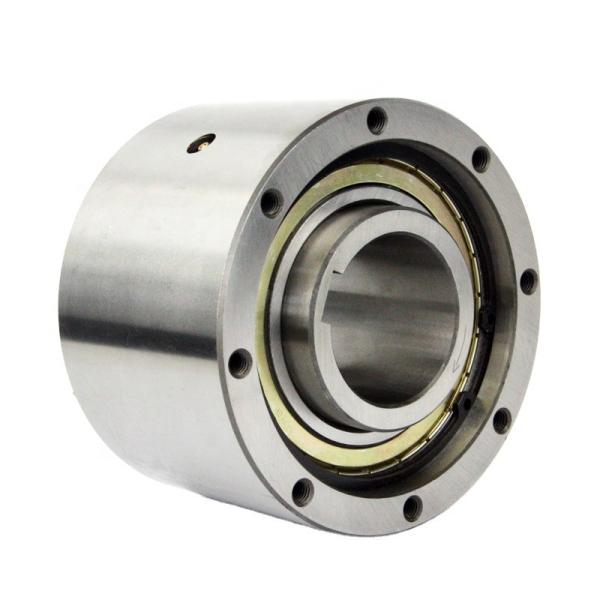

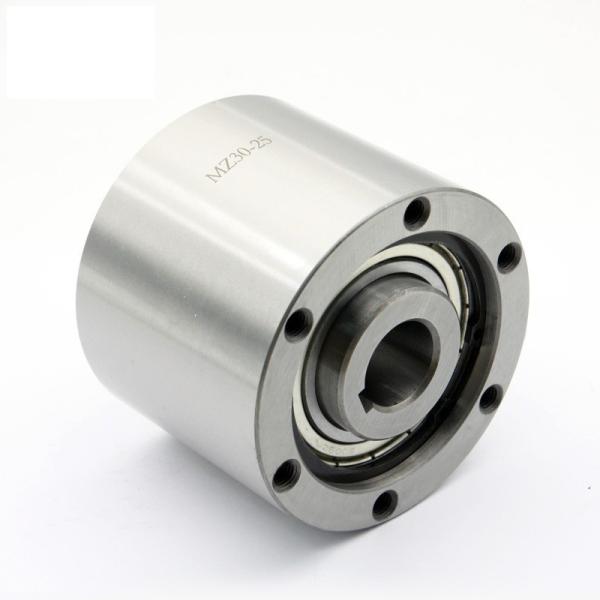

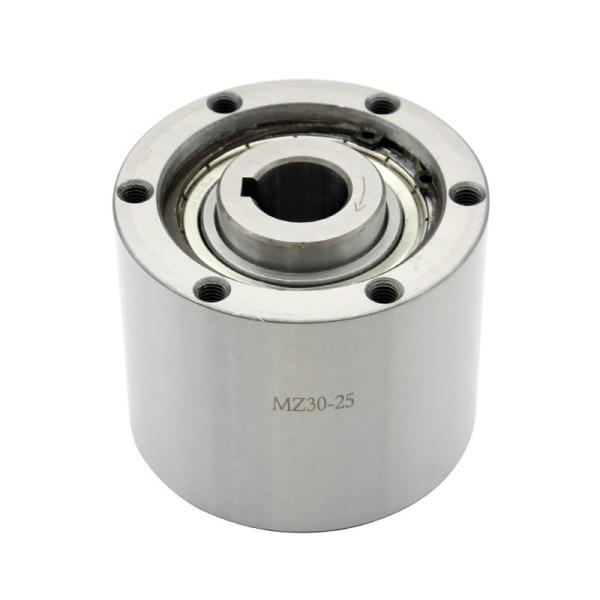

MZ45 One Way Overrunning Bearing Cam Clutch

Description of MZ45 One way overrunning bearing cam clutch

1. MZ Series Cam Clutch is Shielded by shield bearings on both ends, packed with a special grease, and are ready for use. No additional lubricant is required.
2. For attaching pulleys, gears or sprockets to the clutches, insert hubs (with f7 tolerance of ISOR773) along the inner surface of the outer race and screw the bolts (high tension) into the tapped holes on the clutch end.
3. Recommended shaft tolerances are shown in the table on the lower left.
4. External thrust load should be supported by other devices, not by the Cam Clutch.
5. Use only a parallel key to secure the clutch to the shaft. Do not use a tapered Key.
6. When mounting the clutch onto the shaft, apply pressure to the inner race but never to the outer race.

Dimensions and Capacities :

Chrome Steel One Way Clutch Bearings OD 125mm Cam Overrunning Clutch Bearing

Model Capacity
Torque
(Nm)		 Torque
Drag
(Nm)

Over

running
(r/min)

Max.
Inner

Race

Over

running
(r/min)

Max.
Outer

Race

indexing
Max.
(cycle

/min)

Bore Size
Dia

(H7)

Key

way

 A B C PCDD

(M6)

E

 F G

H-M No.

of Tapped x
HolesSize×

Pitch

 S Wt
(kg)
MZ15 186 0.20 2,200 900 150 15 5*2.3 62 68 60 58 47 25 5.5 6*M5*P0.8 10 1.4
MZ17 215 0.20 2,000 800 150 17 5*2.3 66 75 64 64 52 28 6.3 6*M5*P0.8 10 1.8
MZ20 323 0.29 1,900 700 150 20 6*2.8 67 80 65 68 55 30 7.6 6*M6*P1.0 12 2.0
MZ30-22 735 0.39 1,800 500 150 22 6*2.8 82 100 80 88 75 45 8.9 6*M8*P1.25 16 3.7
MZ30-25 735 0.39 1,800 500 150 25 8*3.3 82 100 80 88 75 45 8.9 6*M8*P1.25 16 3.7
MZ30 735 0.39 1,800 500 150 30 10*3.3 82 100 80 88 75 45 8.9 6*M8*P1.25 16 3.7
MZ35 1,080 0.49 1,700 300 150 35 10*3.3 87 110 85 95 80 50 8.7 6*M8*P1.25 16 4.8
MZ45-40 1,620 0.69 1,700 300 150 40 12*3.3 92 125 90 110 95 60 8.4 8*M8*P1.25 16 6.2
MZ45 1,620 0.69 1,700 300 150 45 14*3.8 92 125 90 110 95 60 8.4 8*M8*P1.25 16 6.2
MZ60-50 2,110 0.98 1,600 250 150 50 14*3.8 102 155 100 140 125 80 9.1 8*M8*P1.25 16 10.2
MZ60-55 2,110 0.98 1,600 250 150 55 16*4.3 102 155 100 140 125 80 9.1 8*M8*P1.25 16 10.2
MZ60 2,110 0.98 1,600 250 150 60 18*4.4 102 155 100 140 125 80 9.1 8*M8*P1.25 16 10.2
MZ70-65 3,040 1.27 1,300 250 150 65 18*4.4 105 175 103 162 145 95 8.6 8*M8*P1.25 16 13.2
MZ70 3,040 1.27 1,300 250 150 70 20*4.9 105 175 103 162 145 95 8.6 8*M8*P1.25 16 13.2

Chrome Steel One Way Clutch Bearings OD 125mm Cam Overrunning Clutch Bearing

Chrome Steel One Way Clutch Bearings OD 125mm Cam Overrunning Clutch Bearing

Chrome Steel One Way Clutch Bearings OD 125mm Cam Overrunning Clutch Bearing

Application

By matching with reducer, it is widely used on Transport machinery, Elevator, Metallurgy Machinery, Mining Machinery, Cement Machinery, Power Station Machinery and so on.
