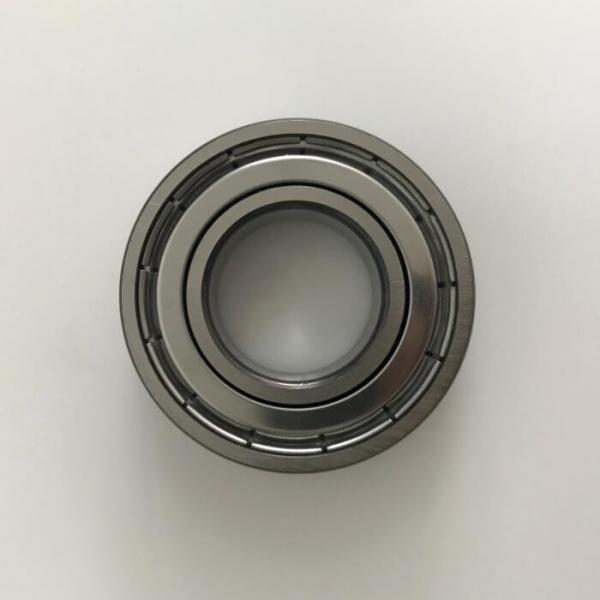

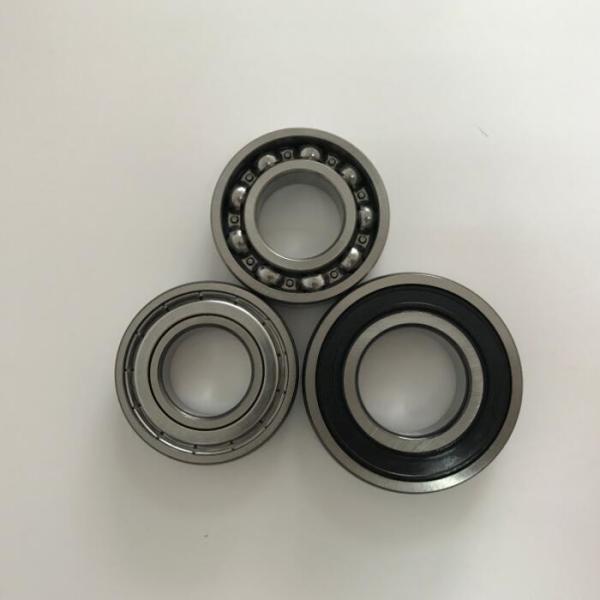

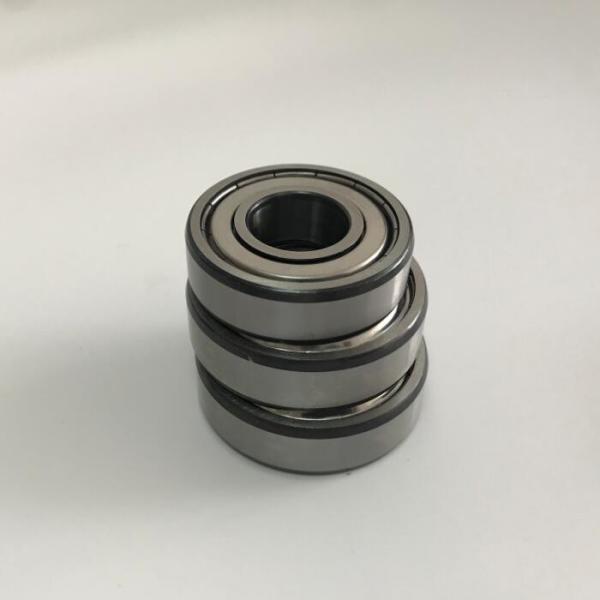

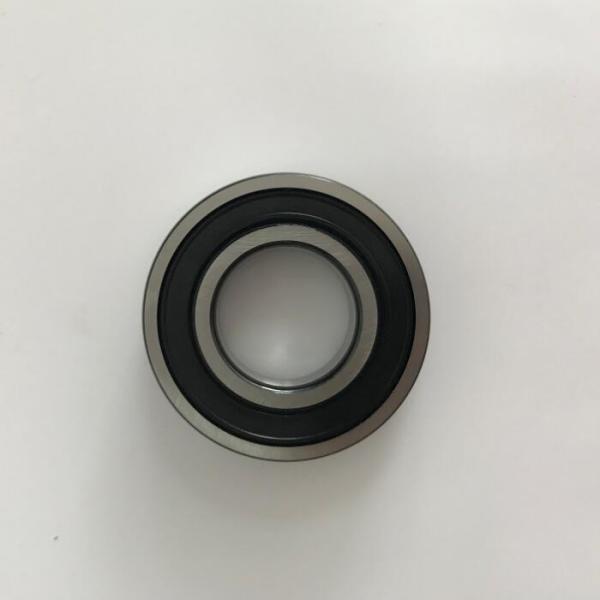

Industrial Eccentric Single Row Electric Motor Bearing With Nylon Cage
Industrial Eccentric Single Row Electric Motor Bearing With Nylon Cage
Industrial Eccentric Single Row Electric Motor Bearing With Nylon Cage
Industrial Eccentric Single Row Electric Motor Bearing With Nylon Cage
Industrial Eccentric Single Row Electric Motor Bearing With Nylon Cage
Industrial Eccentric Single Row Electric Motor Bearing With Nylon Cage
Industrial Eccentric Single Row Electric Motor Bearing With Nylon Cage
Industrial Eccentric Single Row Electric Motor Bearing With Nylon Cage
Specifications
Brand Name :
SFT
Model Number :
6303
Place of Origin :
China
MOQ :
negotiable
Price :
negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
50000PCS/MONTH
Delivery Time :
20-45DAYS
Packaging Details :
carton,pallet
Outside Diameter :
10 - 50 mm
Number of Row :
Single Row
Application :
Machinery
Cage :
Steel Cage.copper Cage.nylon Cage
Seals Type :
OPEN ZZ 2RS RS
Vibration :
Z1V1 Z2V2 Z3V3 Z4V4
Description

High precision industrial eccentric Deep Groove Ball Bearing

Deep groove ball bearings are versatile, self-retaining bearings with solid outer rings, inner rings and ball and cage assemblies. These products are of simple design, durable in operation and easy to maintain; they are available in single and double row designs and and in open and sealed variants. Due to the production technology used, open bearings can still have turned recesses on the outer ring for seals or shields. Due to their low frictional torque, they are suitable for high speeds.

Feature of deep groove ball bearing:

Shield / closure: open ball bearing, Z, ZZ, RS, 2RS,N,NR.

Tolerance codes: ABEC-1, ABEC-3, ABEC-5,

Vibration level codes: V4, V3, V2, V1

Ball bearings bore size: 1 - 200mm

Application:

The deep groove ball bearing can be used in many different places such as:

Gearbox, instruments and meters, electric motor, electric appliance, internal combustion engines, transportation vehicles, agricultural machinery, construction machinery, construction machinery, and so on.

Specification for deep groove ball bearing 6300 series

Bearing Type Bearing Specification(mm) Net Weight(kg)
634 4*16*5 0.005
635 5*19*6 0.008
6300 10*35*11 0.0524
6301 12*37*12 0.0586
6302 15*42*13 0.082
6303 17*47*14 0.109
6304 20*52*15 0.142
6305 25*62*17 0.22
6306 30*72*19 0.34
6307 35*80*21 0.453
6308 40*90*23 0.636
6309 45*100*25 0.825
62309 45*100*35 1.14
6310 50*110*27 1.05
62310 50*110*40 1.57
6311 55*120*29 1.36
62311 55*120*43 1.62
6312 60*130*31 1.67
6313 65*140*33 2.08
6314 70*150*35 2.55
6315 75*160*37 3.02
6316 80*170*39 3.6
6317 85*180*41 4.22
6318 90*190*43 4.91
6319 95*200*45 5.7
6320 100*215*47 7.2
6321 105*190*36 7.84
6322 110*240*50 9.22
6324 120*260*55 14.78
6326 130*280*58 16.52
6328 140*300*62 22.76
6330 150*320*65 26
6332 160*340*68 26.4
6334 170*360*72 35.6
6336 180*380*75 40.53
6338 190*400*78 50.53
6350 200*420*80 59.2

Industrial Eccentric Single Row Electric Motor Bearing With Nylon CageIndustrial Eccentric Single Row Electric Motor Bearing With Nylon CageIndustrial Eccentric Single Row Electric Motor Bearing With Nylon Cage
