Specifications
Brand Name :
SFT
Model Number :
UCPX05-14
Place of Origin :
China
MOQ :
negotiable
Price :
negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
50000PCS/MONTH
Delivery Time :
20-45DAYS
Packaging Details :
carton,pallet
Bearing Material :
100% Chrome Steel/GCr15
Feature :
Set Screw Locking,heavy duty
Lubrication :
Oil or Grease
Cage :
Steel, Brass, Nylon
Samples :
available
Description

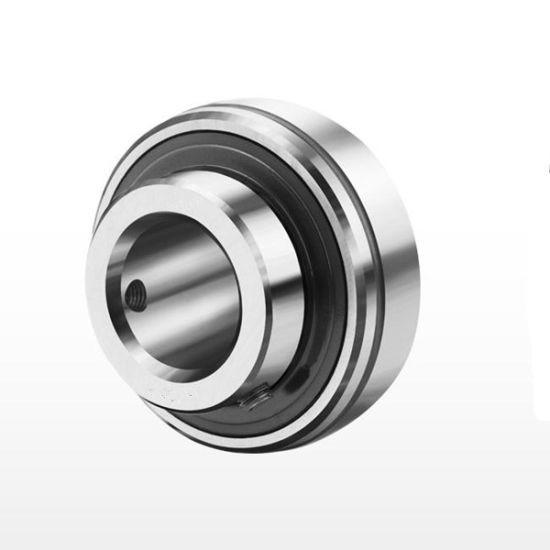

pillow block bearing UB207 bearing for Agricultural machinery

UCPX05-14 Pillow block, whose cap and base can be separated, mainly bear radial load. UCPX05-14 fits for self-aligning spherical roller bearings or self-aligning spherical ball bearing. UCPX05-14 are used in metallurgy, mining, conveyor systems, environment protecting and other industry. The main model No is SN series, SD series, SNU series, SNL series, 1500, 1600 series, Z2500Y, Z2600Y series, GZ2, GZ4 series and so on. The main difference is load and seal type (oil felt, TG, U-lock, TS ). They has good heat conduction, and also can simplify mounting and dismounting procedures, improve sealing efficiency etc.

Application:

Splitting machine, towline, soil tillage equipment, stainless steel reactor, etching machine, low temperature freezers, forklifts, construction materials, plastic welding machine, rubber cutting machines, weaving machines, rolling mills, radial drilling machine, feeding machine, pneumatic mixer, crushing equipment, leak-free pumps, red version of the machine, etc.

Plummer block housing units:Cast iron housing, with long base, radial insert ball bearing with grub screws in inner ring, RSR seals.

The castings are made from high-quality cast iron, and finished on all unmachined surfaces with an electrostatic air drying paint.

Specifications:
Mounting Two-Bolt Base
Bore diameter 25-40 mm
Overall length 52-80 mm
Housing material Cast Iron
Locking device Set Screw
Lubrication type Lubrication Fitting
Seal type Contact Seal with Flinger
Bore type Round
Duty type Light Duty

UCP series pillow block housing bearing size

Model NO. Length(mm) Width(mm) Thickness(mm) Weight(kg)
UCP201 127 38 60.7 0.76
UCP202 127 38 60.7 0.74
UCP203 127 38 60.7 0.72
UCP204 127 38 64 0.7
UCP205 140 38 69.5 0.76
UCP206 160 44 82 1.25
UCP207 167 48 92 1.55
UCP208 180 52 98 1.9
UCP209 189 54 106 2.2
UCP210 204 57 112 2.75
UCP211 217 60 125 3.3
UCP212 238 66 137 4.7
UCP213 262 70 149 5.6
UCP214 266 72 155 6.6
