Electronic Component 22213e/Ek Spherical Roller Thrust Bearing For Rolling Mill
Electronic Component 22213e/Ek Spherical Roller Thrust Bearing For Rolling Mill
Electronic Component 22213e/Ek Spherical Roller Thrust Bearing For Rolling Mill
Electronic Component 22213e/Ek Spherical Roller Thrust Bearing For Rolling Mill
Electronic Component 22213e/Ek Spherical Roller Thrust Bearing For Rolling Mill
Electronic Component 22213e/Ek Spherical Roller Thrust Bearing For Rolling Mill
Electronic Component 22213e/Ek Spherical Roller Thrust Bearing For Rolling Mill
Electronic Component 22213e/Ek Spherical Roller Thrust Bearing For Rolling Mill
Specifications
Brand Name :
SFT
Model Number :
22213e/ek
Place of Origin :
China
MOQ :
negotiable
Price :
negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
50000PCS/MONTH
Delivery Time :
20-45DAYS
Packaging Details :
carton,pallet
Hardness :
HRC58-62
Clearance :
C2 C3 C4 C5
Seals Type :
Open
Weight :
36kg
Vibration :
V1, V2, V3, V4 /Z1, Z2, Z3, Z4
Description

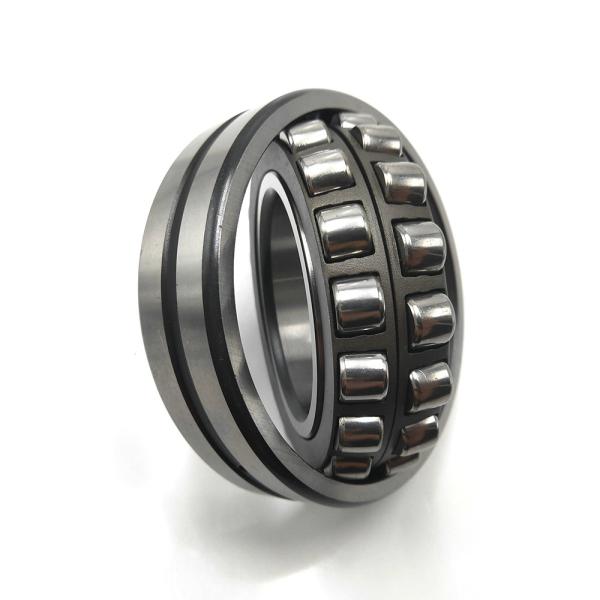

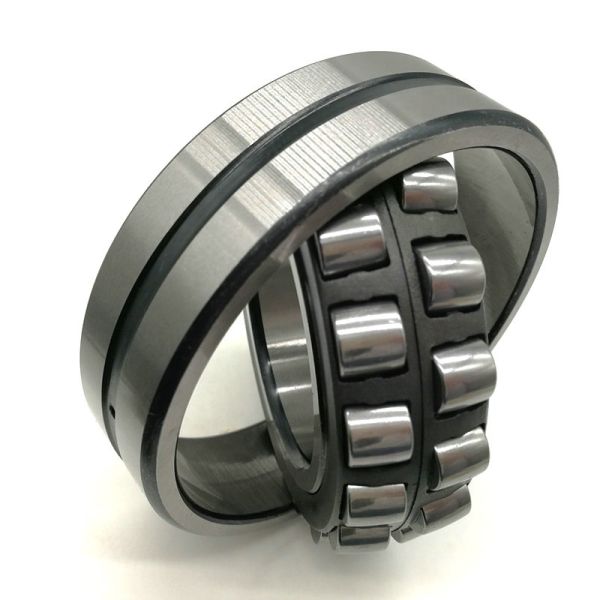

Electronic Component 22213e/ek thrust spherical roller bearing

spherical roller bearings features:

  • 1.Increase Load Rating
  • 2.Longer Operating Life
  • 3.Low Noise
  • 4.High Temperature Lasting (up to 200 Celsius)
  • 5.Suitable for application where misalignment can arise from error in mounting or from shaft deflection.
  • 6.Extremely high radial load capability because of the line contact to the rollers and raceway.
  • 7.Wide array of product line : from ID 25mm , 0ver OD 1000mm

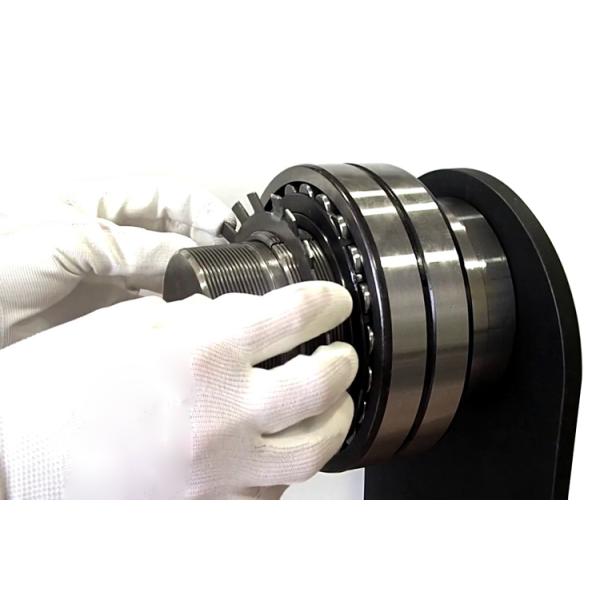

  • 8.Easy mounting and dismounting by tapered bore
  • 9.Press fitting adapter sleeves make internal clearance adjustment.

spherical roller bearings application:

1.papermaking machinery, deceleration device, railway vehicle axle, rolling mill, roller gearbox,crusher,

vibrating screen, printing machinery, woodworking machinery, various industrial reducer,

vertical insert self-aligning bearing

2.Spherical Roller Bearings are suitable for the high axial , impulse and heavy load applications

such as paper manufacturing, rolling and other large size machineries.

Other Designs and Variants Type

Double row spherical roller bearings

*Most widely used.

Single row spherical roller bearings

*Radial load and compensation misalignment

Split spherical roller bearings

*Carrying out replacement work quickly and easily

Sealed spherical roller bearings

*Harsh environment applications

Spherical roller bearings for vibratory machinery

*Vibration machinery application

Exterior Designs

W33
Annular groove and three lubrication holes in the outer ring
■
K
Tapered bore, taper 1:12
■
K30
Tapered bore, taper 1:30
■
W20
Three lubrication holes in the outer ring
■
W26
Six lubrication holes in the inner ring
■
W
Without annular groove and lubrication holes
■
SH
Outer ring screw holes (can be customized)
■
2RS
Contact seal, NBR, on one or both sides
■

Sperical Roller bearing Related models

model list d(mm) D(mm) B(mm) Cr( N) C0r(N) m(kg)
22308 40 90 33 73500 90500 1.041
22309 45 100 36 108000 140000 1.387
22310 50 110 40 140800 170000 1.827
22311 55 120 43 170500 198000 2.299
22312 60 130 46 184800 225000 2.881
22313 65 140 48 206800 252000 3.494
22314 70 150 51 253000 315000 4.212
22315 75 160 55 288200 388000 5.225
22316 80 170 58 316800 405000 6.296
22317 85 180 60 338800 440000 7.36
22318 90 190 64 401500 542000 8.878
22319 95 200 67 423500 570000 10.38
22320 100 215 73 495000 668000 12.941
22322 110 240 80 599500 832000 17.85
22324 120 260 86 709500 992000 22.378
22326 130 280 93 794200 1140000 28.13
22328 140 300 102 907500 1340000 34.84
22330 150 320 108 1230000 1600000 43.6
22332 160 340 114 1380000 1790000 51.9
22334 170 360 120 1420000 2060000 60.75
22336 180 380 126 1470000 2270000 68.08
22338 190 400 132 1529000 2530000 83.22

Electronic Component 22213e/Ek Spherical Roller Thrust Bearing For Rolling Mill

Electronic Component 22213e/Ek Spherical Roller Thrust Bearing For Rolling Mill

Electronic Component 22213e/Ek Spherical Roller Thrust Bearing For Rolling Mill
