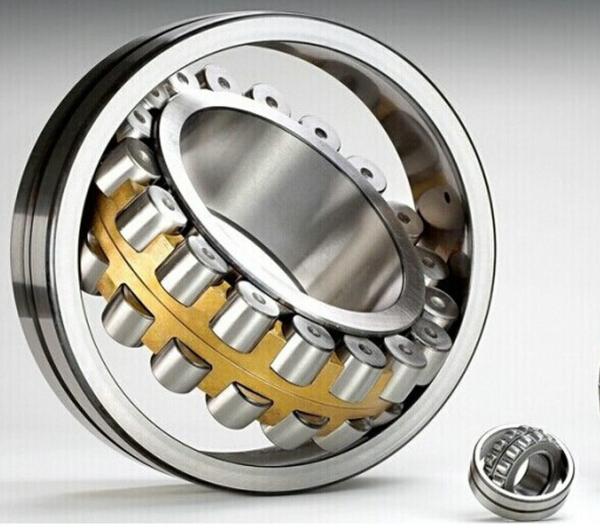

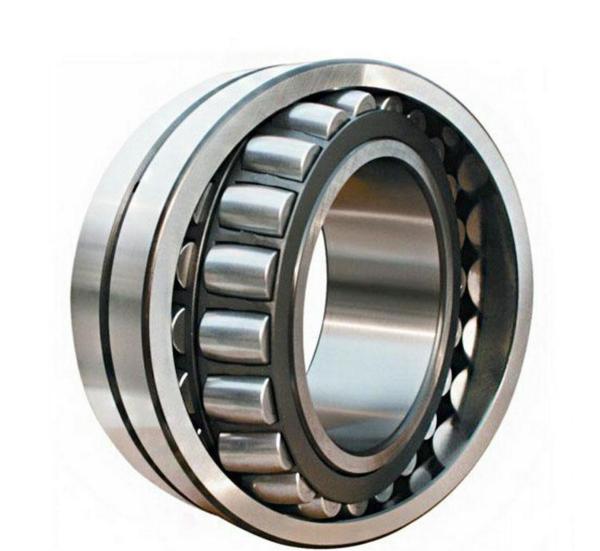

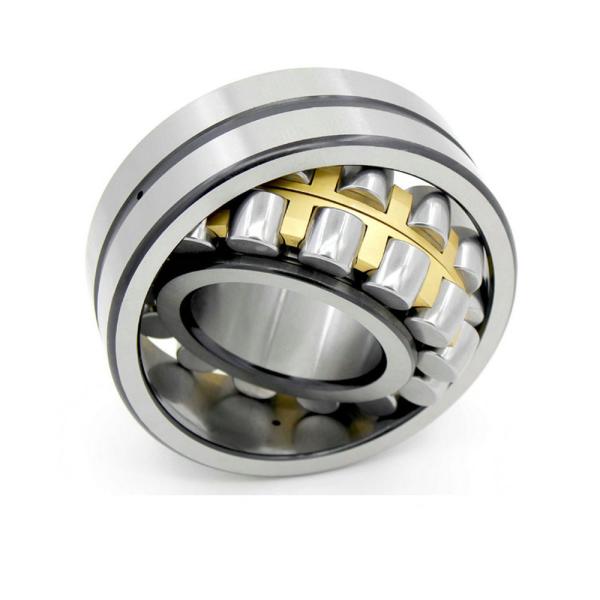

Auto Spare Parts Single Row Axial Spherical Roller Bearing With Steel Cage
Auto Spare Parts Single Row Axial Spherical Roller Bearing With Steel Cage
Auto Spare Parts Single Row Axial Spherical Roller Bearing With Steel Cage
Auto Spare Parts Single Row Axial Spherical Roller Bearing With Steel Cage
Auto Spare Parts Single Row Axial Spherical Roller Bearing With Steel Cage
Auto Spare Parts Single Row Axial Spherical Roller Bearing With Steel Cage
Auto Spare Parts Single Row Axial Spherical Roller Bearing With Steel Cage
Auto Spare Parts Single Row Axial Spherical Roller Bearing With Steel Cage
Specifications
Brand Name :
SFT
Place of Origin :
China
MOQ :
negotiable
Price :
negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
50000PCS/MONTH
Delivery Time :
20-45DAYS
Packaging Details :
carton,pallet
Model Number :
22320 22322
Cage :
Steel Cage
Application :
Machinery
Material :
Chrome Steel GCr15
Type :
spherical roller bearing
Structure :
Spherical
Number of row :
Double Row,Single Row
Description

Auto spare parts car used spherical roller bearing

Spherical roller bearings mainly used to bear the radial and axial joint load.The general should not be alone to bear the axial load,The bearing can be respectively arranged on inner ring(with a full set of roller and the retainer and the outer ring).The bearings do not allow the shaft relative to the casing having an inclined load in the radial direction, appointment would produce an additional axial force.This kind of axial clearance of bearing size, can work closely, When the axial clearance is too small, high temperature rise; axial clearance of bearing large, easily damaged.

Feature of spherical roller bearing:
With low operation temperature and long service life

With a larger radial internal clearance of cylindrical or conical hole design

Material Chrome Steel, Carbon Steel, Stainless steel
Precision Grade P0, P6, P5
Seal type Open
Cage material Steel, nylon , Brass
Package Single box or according to buyers requirement
Details 1.Low price
2.Low vibration
3.high rolling accuracy
Payment Term TT or L/C or Western Union
Service 1.OEM
2.Good Service Offered
3.Buyer Label Offered
Port Tianjin Shanghai Ningbo
model list d(mm) D(mm) B(mm) Cr( N) C0r(N) m(kg)
22308 40 90 33 73500 90500 1.041
22309 45 100 36 108000 140000 1.387
22310 50 110 40 140800 170000 1.827
22311 55 120 43 170500 198000 2.299
22312 60 130 46 184800 225000 2.881
22313 65 140 48 206800 252000 3.494
22314 70 150 51 253000 315000 4.212
22315 75 160 55 288200 388000 5.225
22316 80 170 58 316800 405000 6.296
22317 85 180 60 338800 440000 7.36
22318 90 190 64 401500 542000 8.878
22319 95 200 67 423500 570000 10.38
22320 100 215 73 495000 668000 12.941
22322 110 240 80 599500 832000 17.85
22324 120 260 86 709500 992000 22.378
22326 130 280 93 794200 1140000 28.13
22328 140 300 102 907500 1340000 34.84
22330 150 320 108 1230000 1600000 43.6
22332 160 340 114 1380000 1790000 51.9
22334 170 360 120 1420000 2060000 60.75
22336 180 380 126 1470000 2270000 68.08
22338 190 400 132 1529000 2530000 83.22

Auto Spare Parts Single Row Axial Spherical Roller Bearing With Steel Cage

Auto Spare Parts Single Row Axial Spherical Roller Bearing With Steel Cage

Auto Spare Parts Single Row Axial Spherical Roller Bearing With Steel Cage

Applications of spherical roller bearing:

Engineering machinery, large-scale transportation equipment, chemical machinery, petroleum machinery, metallurgical industry, large-scale steel mills, cement plants, energy industry and so on.
