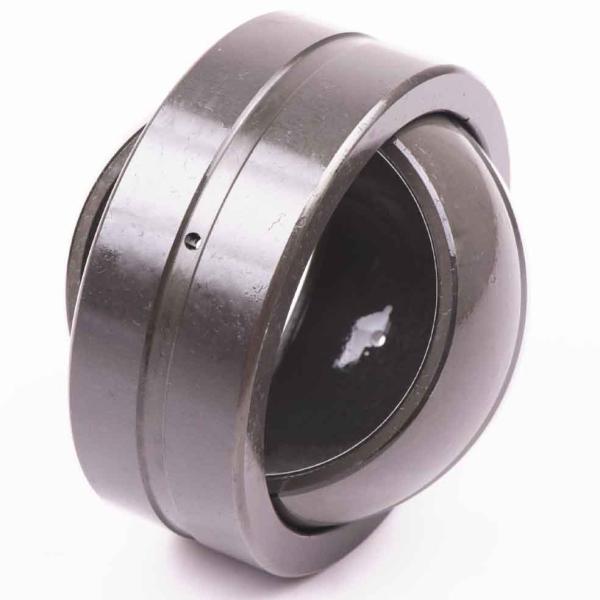

GEG6C Maintenance Free Radial Spherical Plain Bearings GE6-FW GEH 6 C Size 6X16X9 Mm
GEG6C Maintenance Free Radial Spherical Plain Bearings GE6-FW GEH 6 C Size 6X16X9 Mm
GEG6C Maintenance Free Radial Spherical Plain Bearings GE6-FW GEH 6 C Size 6X16X9 Mm
GEG6C Maintenance Free Radial Spherical Plain Bearings GE6-FW GEH 6 C Size 6X16X9 Mm
GEG6C Maintenance Free Radial Spherical Plain Bearings GE6-FW GEH 6 C Size 6X16X9 Mm
GEG6C Maintenance Free Radial Spherical Plain Bearings GE6-FW GEH 6 C Size 6X16X9 Mm
GEG6C Maintenance Free Radial Spherical Plain Bearings GE6-FW GEH 6 C Size 6X16X9 Mm
GEG6C Maintenance Free Radial Spherical Plain Bearings GE6-FW GEH 6 C Size 6X16X9 Mm
Specifications
Brand Name :
SFT
Model Number :
GEG6C
Place of Origin :
China
MOQ :
negotiable
Price :
negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
50000PCS/MONTH
Delivery Time :
20-45DAYS
Packaging Details :
carton,pallet
Finishing :
Black, Antioxidant
Size :
6X16X9 mm
Weight :
0.008 kg
Type :
P0 P6 P5
Precision Rating :
Industry,engineering
Sliding contact surfaces :
Steel / PTEF composite
Description

GEG6C Maintenance-Free Radial Spherical Plain Bearings GE6-FW GEH 6 C Size 6X16X9 mm

Product Description of Spherical Plain Bearing:

Radial spherical plain bearings have an inner ring with a sphered convex outside diameter and an outer ring with a correspondingly sphered but concave inside surface. Their design makes them particularly suitable for bearing arrangements where alignment movements between shaft and housing have to be accommodated, or where oscillating or recurrent tilting or slewing movements must be possible at relatively slow sliding speeds.

Radial spherical plain bearings requiring maintenance have the sliding contact surface combination steel-on-steel. Bearings with this sliding contact surface combination require regular relubrication. The high wear resistance of the sliding surfaces makes these bearings especially suitable for bearing arrangements where heavy loads of alternating direction, shock loads or heavy static loads have to be accommodated. Bearings which have cylindrical extensions at both sides of the inner ring are intended for applications where normally spacer sleeves are arranged at either side of the bearing, or are specially designed for the bearing arrangements of hydraulic cylinders.

design and features

Radial spherical plain bearings have an inner ring with a sphered convex outside diameter and an outer ring with a correspondingly sphered but concave inside surface.

The maintenance-free spherical plain radial bearing GEG_C without seals is particularly suitable for loads where low friction is needed. It has a sliding contact surface combination hard chrome/PTFE.

specifications

Designations : GEG6C,GE6-FW,GEH 6 C
d : 6 mm
D : 16 mm
B : 9 mm
C : 5 mm
dk : 13 mm
α : 21°
Weight : 0.008 kg
Ring Material : Chrome Steel
Contact Surface : Steel / PTFE
Sealed : OPEN
Lubricant : Maintenance free , dry lubrication
Extended Inner Ring: No

Bearing No. Dimensions mm Load ratings kN Weight
d D B C dk rs r1s α° Dyn Stat Kg
min min ≈ C Co
GEGZ31ES 1.25 2.4375 1.39 1.125 2.155 0.024 0.04 15 125 375 0.454
GEGZ31ES-2RS 1.25 2.4375 1.39 1.125 2.155 0.024 0.04 15 125 375 0.454
GEGZ38ES 1.5 2.8125 1.58 1.312 2.515 0.024 0.04 14 170 510 0.726
GEGZ38ES-2RS 1.5 2.8125 1.58 1.312 2.515 0.024 0.04 14 170 510 0.726
GEGZ44ES 1.75 3.1875 1.82 1.5 2.875 0.024 1 14 224 670 1.14
GEGZ44ES-2RS 1.75 3.1875 1.82 1.5 2.875 0.024 1 14 224 670 1.14
GEGZ50ES 2 3.5625 2.07 1.687 3.235 0.024 1 14 280 850 1.68
GEGZ50ES-2RS 2 3.5625 2.07 1.687 3.235 0.024 1 14 280 850 1.68
GEGZ57ES 2.25 3.9375 2.318 1.875 3.59 0.024 1 14 355 1060 2.01
GEGZ57ES-2RS 2.25 3.9375 2.318 1.875 3.59 0.024 1 14 355 1060 2.01
GEGZ63ES 2.5 4.375 2.545 2.062 3.95 0.04 1 14 415 1250 2.95
GEGZ63ES-2RS 2.5 4.375 2.545 2.062 3.95 0.04 1 14 415 1250 2.95
GEGZ69ES 2.75 4.75 2.79 2.25 4.312 0.04 0.04 14 500 1500 3.63
GEGZ69ES-2RS 2.75 4.75 2.79 2.25 4.312 0.04 0.04 14 500 1500 3.63
GEGZ76ES 3 5.125 3.022 2.437 4.675 0.04 0.04 14 585 1760 4.36
GEGZ76ES-2RS 3 5.125 3.022 2.437 4.675 0.04 0.04 14 585 1760 4.36
GEGZ82ES 3.25 5.5 3.265 2.625 5.04 0.04 0.04 14 680 2040 5.31
GEGZ82ES-2RS 3.25 5.5 3.265 2.625 5.04 0.04 0.04 14 680 2040 5.31
GEGZ88ES 3.5 5.875 3.56 2.812 5.39 0.04 0.04 14 780 2360 6.81
GEGZ88ES-2RS 3.5 5.875 3.56 2.812 5.39 0.04 0.04 14 780 2360 6.81
GEGZ95ES 3.75 6.25 3.738 3 5.75 0.04 0.04 14 900 2650 8.85
GEGZ95ES-2RS 3.75 6.25 3.738 3 5.75 0.04 0.04 10 900 2650 8.85
GEGZ101ES 4 7 4.225 3.375 6.475 0.04 0.04 10 1120 3400 10.2
GEGZ101ES-2RS 4 7 4.225 3.375 6.475 0.04 0.04 10 1120 3400 10.2
GEGZ114ES 4.5 7.75 4.69 3.75 7.19 0.04 0.04 10 1400 4150 13.6
GEGZ114ES-2RS 4.5 7.75 4.69 3.75 7.19 0.04 0.04 10 1400 4150 13.6
GEGZ139ES 5.5 8.75 4.95 4.125 8.156 0.04 0.04 9 1730 5200 20.4
GEGZ139ES-2RS 5.5 8.75 4.95 4.125 8.156 0.04 0.04 9 1730 5200 20.4
