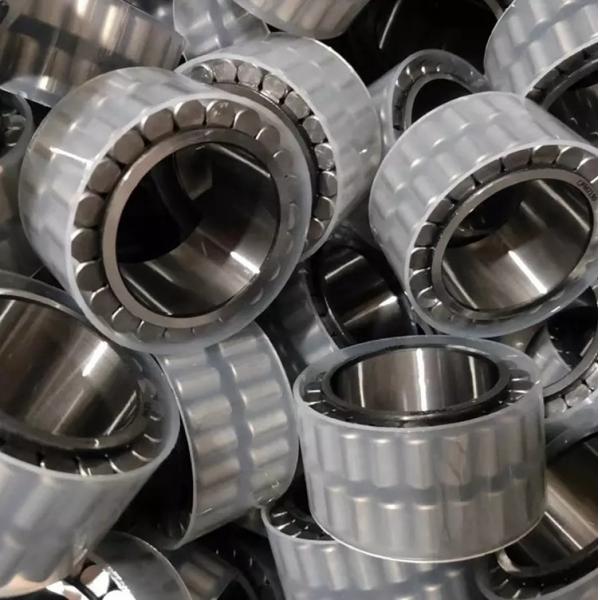

Double Row Radial Cylindrical Roller Bearing F-208098.RNN Size 35X52.09X26.5mm
Double Row Radial Cylindrical Roller Bearing F-208098.RNN Size 35X52.09X26.5mm
Double Row Radial Cylindrical Roller Bearing F-208098.RNN Size 35X52.09X26.5mm
Double Row Radial Cylindrical Roller Bearing F-208098.RNN Size 35X52.09X26.5mm
Double Row Radial Cylindrical Roller Bearing F-208098.RNN Size 35X52.09X26.5mm
Double Row Radial Cylindrical Roller Bearing F-208098.RNN Size 35X52.09X26.5mm
Double Row Radial Cylindrical Roller Bearing F-208098.RNN Size 35X52.09X26.5mm
Double Row Radial Cylindrical Roller Bearing F-208098.RNN Size 35X52.09X26.5mm
Specifications
Brand Name :
SFT
Model Number :
F-238902.RNN
Place of Origin :
China
MOQ :
negotiable
Price :
negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
50000PCS/MONTH
Delivery Time :
20-45DAYS
Packaging Details :
carton,pallet
Cage :
Brass,steel
Hardness :
60-63
Seals Type :
open
Number of Row :
Double row
CLEARANCE :
C0 C2 C3 C4 C5
Material :
Chrome Steel Gcr15
Description

Cylindrical Roller Bearing F-208098.RNN

The roller and raceway surface of cylindrical roller bearing is line contact,so the bearing

has high carrying radial load capacity,applicable to carrying heavy load and shock load.

Besides,owing to its structure,it's easy to high accuracy processing,applicable to highrate

rotary.Inner ring and orter ring are separable,convenient for mounting and dismounting.

The rollers are cylindrical in shape and crowned at the end in order to reduce the stress concentrations. They are also suitable for applications that require high speed because the rollers are guided by ribs which are either on the outer or inner ring.


The rollers of cylindrical roller bearings are a key component. Their geometry, the so-called logarithmic profile, provides an optimum stress distribution in the contact zones in the bearing, their surface finish maximizes lubricant film formation and optimizes rolling motion of the rollers. The benefits derived from this compared with traditional designs include enhanced operational reliability and a greater insensitivity to misalignment.

1.Cylindrical Roller Bearing Introductions:

Cylindrical roller bearings have various clearance and lubrication options available depending on the manufacturer and supplier. Cylindrical roller bearings can be made with a cage or as a full complement part.

2.Cylindrical Roller Bearing Features:

Cylindrical roller bearings feature high radial load capacity because the rollers and raceway are in linear contact.

3.Cylindrical Roller Bearing Application:

Others are used in construction equipment, crushers, electric motors, blowers and fans, gears and drives, plastics machinery, machine tools and traction motors and pumps.

Part of the bearing specification :

Bearing No. Weight(kg) d(mm) Dr(mm) B(mm)
F-227932 0.12 20 36 30
F-219593 0.144 25 42 30
F-204045 0.27 30 49 34
F-219590 0.28 35 55 36
F-123243 0.4 45 66 40
F-210408 0.46 50 72 40
HS-262 0.86 55 83 46
RNNX22AV 0.895 60 86 46
F-24*40.3*26 0.94 65 93 46
RNN3005X3V 1.12 70 100 54
F-217615 1.35 75 107 54
F-210304 1.8 80 116 60
RNN306X3V 1.85 85 121 60
F-32*46.6*28 2.6 90 130 67
F-208098 2.6 100 139 67
RNN3007X3V 3.95 110 156 80
F-385328 4.52 120 167 80
HS-263 6.7 130 183 95
RNNX10V 7.914 140 197 95
F-237005 8.215 150 206 100
F-229575.1 11.09 160 224 109
567079B 15.6 170 242 122

Double Row Radial Cylindrical Roller Bearing F-208098.RNN Size 35X52.09X26.5mmDouble Row Radial Cylindrical Roller Bearing F-208098.RNN Size 35X52.09X26.5mmDouble Row Radial Cylindrical Roller Bearing F-208098.RNN Size 35X52.09X26.5mm
