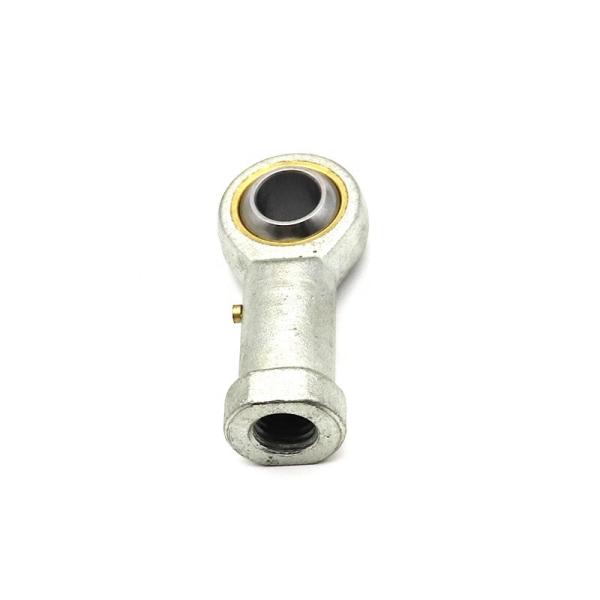

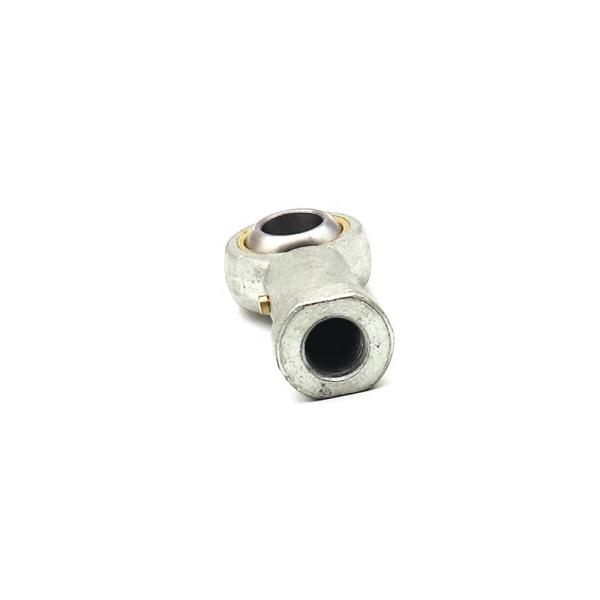

Metric Female Thread M6x1 PHS6 Inlaid Line Ball Joint Rod Ends Bearing PHS Series
Metric Female Thread M6x1 PHS6 Inlaid Line Ball Joint Rod Ends Bearing PHS Series
Metric Female Thread M6x1 PHS6 Inlaid Line Ball Joint Rod Ends Bearing PHS Series
Metric Female Thread M6x1 PHS6 Inlaid Line Ball Joint Rod Ends Bearing PHS Series
Metric Female Thread M6x1 PHS6 Inlaid Line Ball Joint Rod Ends Bearing PHS Series
Metric Female Thread M6x1 PHS6 Inlaid Line Ball Joint Rod Ends Bearing PHS Series
Metric Female Thread M6x1 PHS6 Inlaid Line Ball Joint Rod Ends Bearing PHS Series
Metric Female Thread M6x1 PHS6 Inlaid Line Ball Joint Rod Ends Bearing PHS Series
Specifications
Brand Name :
SFT
Model Number :
PHS6
Place of Origin :
China
MOQ :
negotiable
Price :
negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
50000PCS/MONTH
Delivery Time :
20-45DAYS
Packaging Details :
carton,pallet
Body Material :
Nickle Plated
Bore Size :
6mm
Precision Rating :
P0 P6 P5
Type :
Rod end
Weight :
19 KG
Feature :
High Temperature Resistance .carrying Capability
Description

Thread M6x1 PHS6 Inlaid Line Ball Joint Rod End Bearing

Products Description
Introduction

Ball Joint Rod End bearing is a kind of special structure of sliding bearing.

It is simple in structure than the rolling bearing, which is mainly composed of a spherical inner ring and a spherical outer ring, can bear larger load, according to the different types and structures, can be combined load to bear radial load, axial load and radial, axial exist at the same time.

Feature
1. Bearings with a stretching rod, stretching with right or left-hand male thread.
2. To plate zinc on the surface of rod body, the housing with a lubricartion hole or a grease nipple.
3. Rod ends permissible operating temperature, are available on - 30 °C to + 80 °C temperature range of use, and keep the right to bear ability.

Application
It is widely used in the industry of engineering hydraulic oil cylinder, metal forming machine, engineering machinery, automation equipment, auto damper, Water Conservancy Machine and so on.
it is generally used in low speed of swing motion, the angular motion, can bear larger load, can bear radial load, axial load or the joint of the radial, axial load.

Products Name
rod end bearing
Model
PHS6
Hole Size
6mm
Screw
M6*1
Thread
Female Thread
Material
Chrome Steel
Precision
High Precision
Package
Opp Bag/Box/As Per Your Requirement
Maintance required
1. Rod body with left or right hand female thread
2. Outer race lined with bronze liner
3. Surface of rod body zinc plated, rod body with a lubricating hole or grease nipple

SFT

Number

 Dimensions mm Load ratings KN Weight
≈kg
d d3 B C1
max		 W l3
min		 d2
max		 l4
max		 h1 l5
max		 d4
max		 d5
max		 dk α°
≈		 C Co
PHS5 5 M5 8 6 9 14 18 36 27 4 8.5 11 11.11 13 3.25 5.7 0.016
PHS6 6 M6 9 6.75 11 14 20 40 30 5 10 13 12.7 13 4.3 7.2 0.022
PHS8 8 M8 12 9 14 17 24 48 36 5 12.5 16 15.875 14 7.2 11.6 0.047
PHS10 10 M10 14 10.5 17 21 26 56 43 6.5 15 19 19.05 13 10 14.5 0.077
PHS12 12 M12 16 12 19 24 30 65 50 6.5 17.5 22 22.225 13 13.4 17 0.1
PHS14 14 M14 19 13.5 22 27 34 74 57 8 20 26 25.4 16 17 24 0.16
PHS16 16 M16 21 15 24 33 40 84 64 8 22 28 28.575 15 21.6 28.5 0.22
PHS18 18 M18X1.5 23 16.5 27 36 44 93 71 10 25 31 31.75 15 26 42.5 0.32
PHS20 20 M20X1.5 25 18 30 40 48 101 77 10 27.5 35 34.925 14 31.5 42.5 0.42
PHS22 22 M22X1.5 28 20 32 43 54 111 84 12 30 38 38.1 15 38 57 0.54
PHS25 25 M24X2 31 22 36 48 60 124 94 12 33.5 42 42.85 15 47.5 68 0.73
PHS28 28 M27X2 35 24 41 53 66 136 103 14 37 46 47.6 15 58 75 0.98
PHS30 30 M30X2 37 25 46 56 70 145 110 15 40 50 50.8 17 64 88 1.1

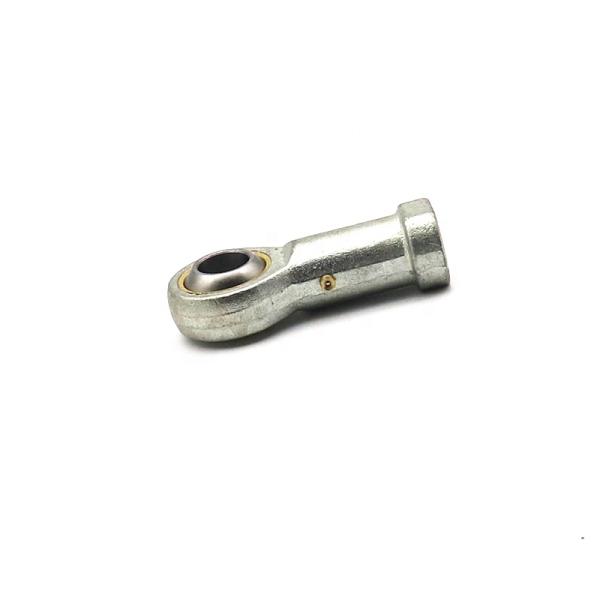

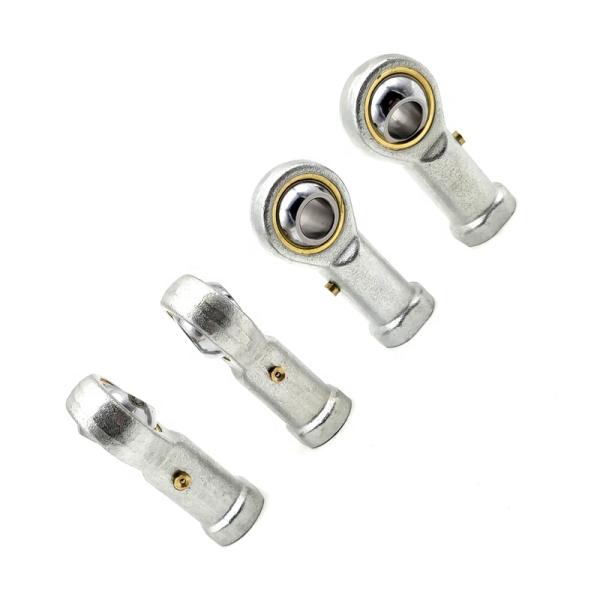

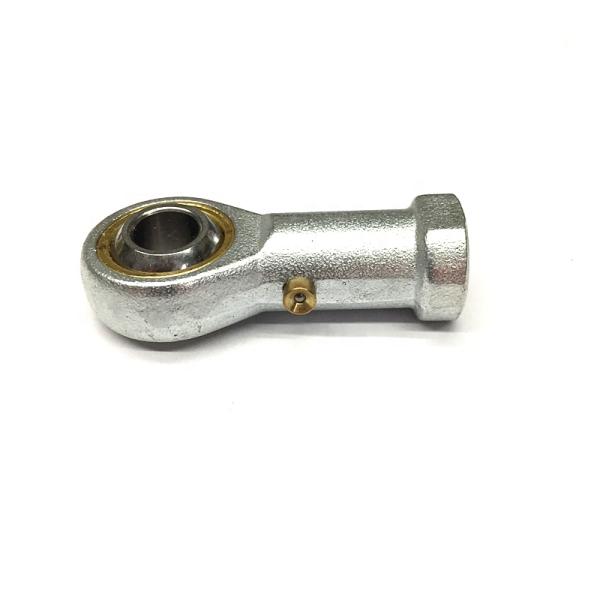

Metric Female Thread M6x1 PHS6 Inlaid Line Ball Joint Rod Ends Bearing PHS SeriesMetric Female Thread M6x1 PHS6 Inlaid Line Ball Joint Rod Ends Bearing PHS SeriesMetric Female Thread M6x1 PHS6 Inlaid Line Ball Joint Rod Ends Bearing PHS Series
