Specifications
Brand Name :
SFT
Model Number :
SI8T/K
Place of Origin :
China
MOQ :
negotiable
Price :
negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
50000PCS/MONTH
Delivery Time :
20-45DAYS
Packaging Details :
carton,pallet
Connection screw shape :
Male thread
Material :
Chrome steel
I.D.(Bore) :
8mm
Thread :
M8x1.25
Operating Temperature Range(℃) :
-20~80
Bore Size :
1 - 10 mm
Description

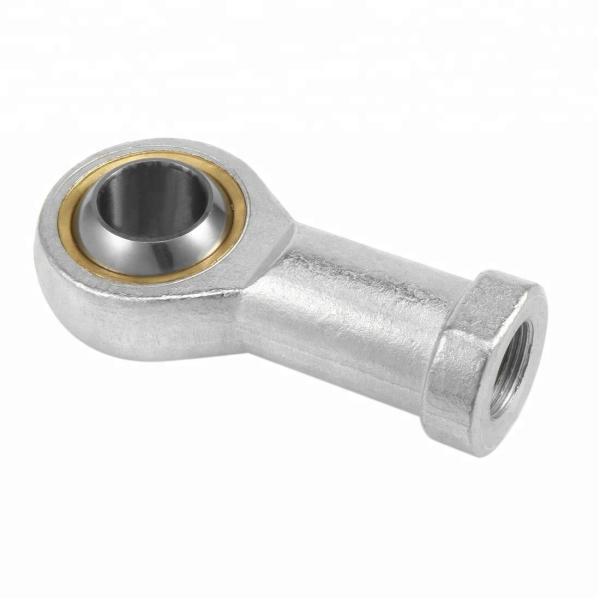

SI8T/K 8mm Bore Female Right Hand Maintenance Free Rod End Bearing

Product Description

Description:

Joint bearing is dominated by an inner and outer sphere within a spherical outer ring,can withstand a greater load.According to their different types and structures that can withstand the radial load,axial load or radial,axial joint load.Since the inner surface of the outer sphere inlaid composite materials,so that the work can be generated in the bearing selflubricating.Generally used for slower swing movement,but also for the tilt angle within a certain range of motion,when the supporting shaft and shaft misalignment large shell hole,still work properly.Self-lubricating auxiliary bearing joints used in water conservancy, specialized machinery and other industries.

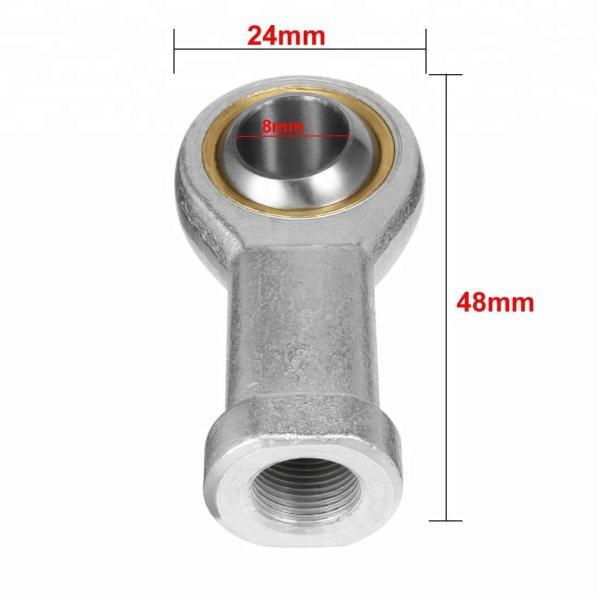

Dimensions

• Inside Diameter(Bore): 8mm

• Outside Diameter(Head): 24mm

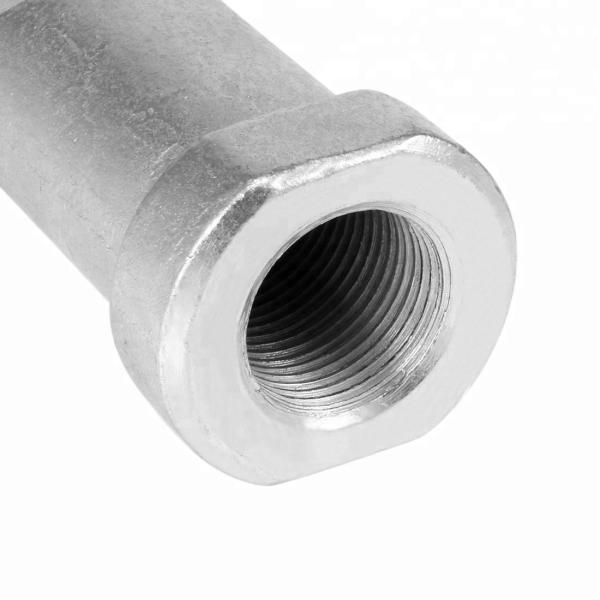

• Thread: M8x1.25(Right Hand)

• Total Length: 48mm

• Maximum Angular Misalignment: 14 Degree

• Center of Ball to Bottom of Shank: 36mm

• Length Through Bore: 12mm

• Thread Length: 16mm

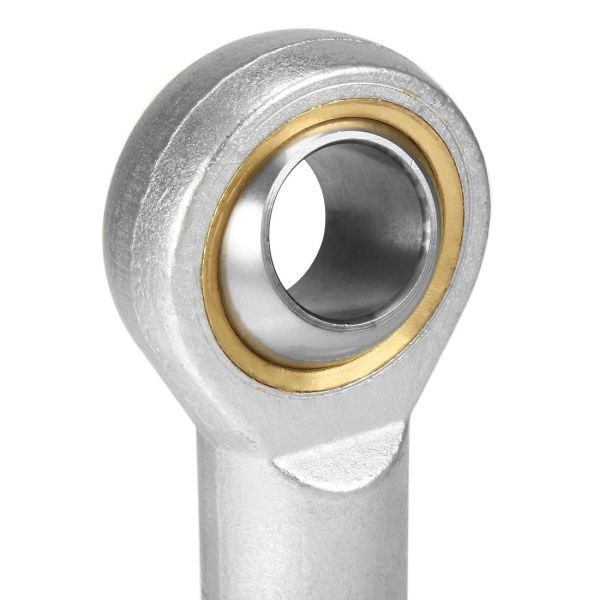

Features:

• Self-Lubrication

• Housing: carbon steel and white zinc plated

• Steel Ball: 52100 chrome steel, precision ground hardened and chrome plated

• Liner: PTFE-Strong & flexible bronze mesh spread with fluorine resin

• Race: Bronze

Application:

Joint bearings are widely used in hydraulic engineering, metal forming machine tools, construction machinery, automation equipment, automotive shock absorbers, irrigation machinery and other industries.

SI..TK series rod ends bearings are made up of a maintenance-free radial spherical plain bearing G..PW 2RS and rod body,with female thread.

Features

• Sliding contact surface: steel/PTFE

• Lubricating: Maintenance-free

• Housing: carbon steel and zinc plated

• Inner ring: chrome steel,hardened,chrome-plated

• Race: brass

• Liner: PTFE

ITEM Dimension(mm) Weight
d d3 B C1 L3 W d2 h1 L4 L5 d4 d5 dk a kg
6H min ≈
SI5T/K 5 M5x0.8 8 6 10 9 18 27 36 4 8.5 11 11.11 13 0.016
SI6T/K 6 M6x1.0 9 6.75 12 11 20 30 40 5 10 13 12.7 13 0.022
SI8T/K 8 M8x1.25 12 9 16 14 24 36 48 5 12.5 16 15.875 14 0.047
SI10T/K 10 M10x1.5 14 10.5 20 17 28 43 57 6.5 15 19 19.05 13 0.077
SI10-1T/K 10 M10x1.25 14 10.5 20 17 28 43 57 6.5 15 19 19.05 13 0.077
SI12T/K 12 M12x1.75 16 12 22 19 32 50 66 6.5 17.5 22 22.225 13 0.1
SI12-1T/K 12 M12x1.25 16 12 22 19 32 50 66 6.5 17.5 22 22.225 13 0.1
SI14T/K 14 M14x2.0 19 13.5 25 22 36 57 75 8 20 25 25.4 16 0.16
SI14-1T/K 14 M14x1.5 19 13.5 25 22 36 57 75 8 20 25 25.4 16 0.16
SI16T/K 16 M16x2.0 21 15 28 22 42 64 85 8 22 27 28.575 15 0.22
SI16-1T/K 16 M16x1.5 21 15 28 22 42 64 85 8 22 27 28.575 15 0.22
SI18T/K 18 M18x1.5 23 16.5 32 27 44 71 93 10 25 31 31.75 15 0.32
SI20T/K 20 M20x1.5 25 18 33 30 50 77 102 10 27.5 34 34.925 14 0.42
SI22T/K 22 M22x1.5 28 20 37 32 54 84 111 12 30 38 38.1 15 0.54
SI25T/K 25 M24x2.0 31 22 42 36 60 94 124 12 33.5 42 42.86 15 0.72
SI28T/K 28 M27x2.0 35 24 51 41 66 103 136 14 37 46 47.63 15 0.82
SI30T/K 30 M30x2.0 37 25 51 41 70 110 145 15 40 50 50.8 17 1.1
SI30-1T/K 30 M27x2.0 37 25 51 41 70 110 145 15 40 50 50.8 17 1.1
SI35T/K 35 M36x2.0 43 28 56 50 81 125 165.5 17 46 58 57.15 16 1.6
SI40T/K 40 M42x2.0 49 33 60 55 91 142 187.5 19 53 65 66.67 16 2.4
SI50T/K 50 M48x2.0 60 45 65 65 117 160 218.5 23 65 75 82.5 12 5

SI8T/K 8mm Bore Female Right Hand Rod Ends Bearing Maintenance FreeSI8T/K 8mm Bore Female Right Hand Rod Ends Bearing Maintenance FreeSI8T/K 8mm Bore Female Right Hand Rod Ends Bearing Maintenance Free
