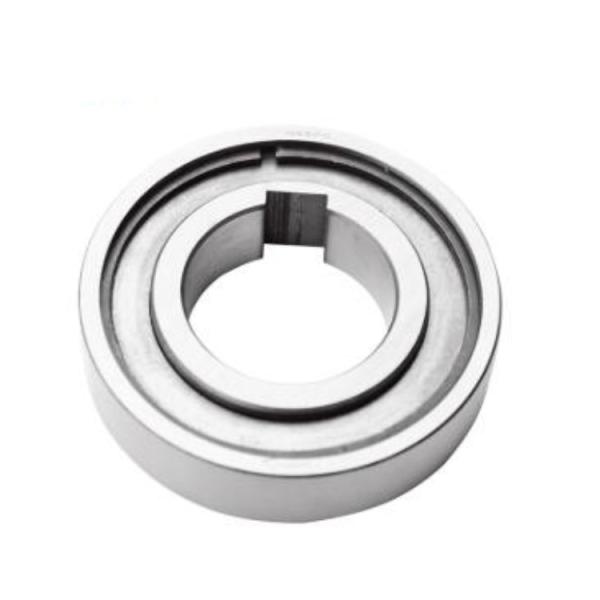

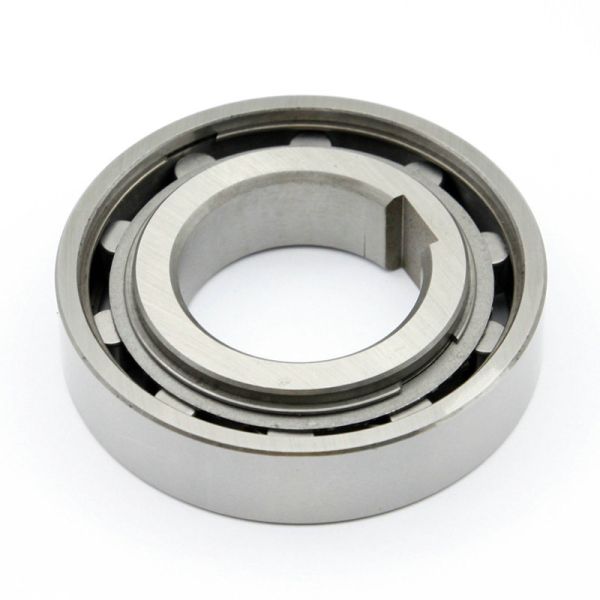

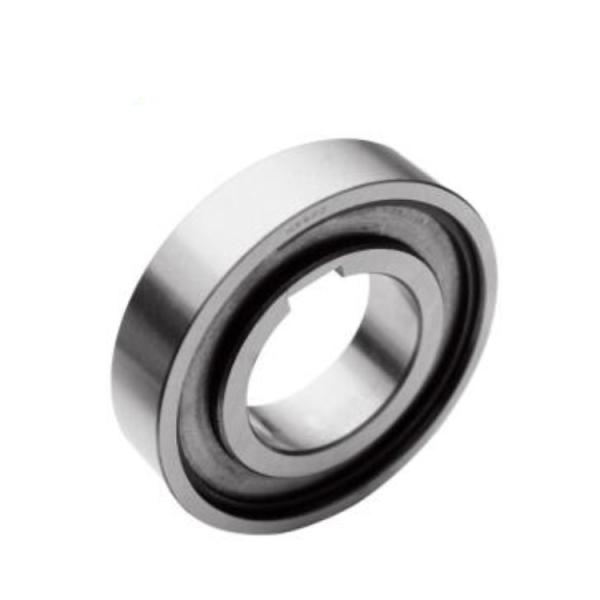

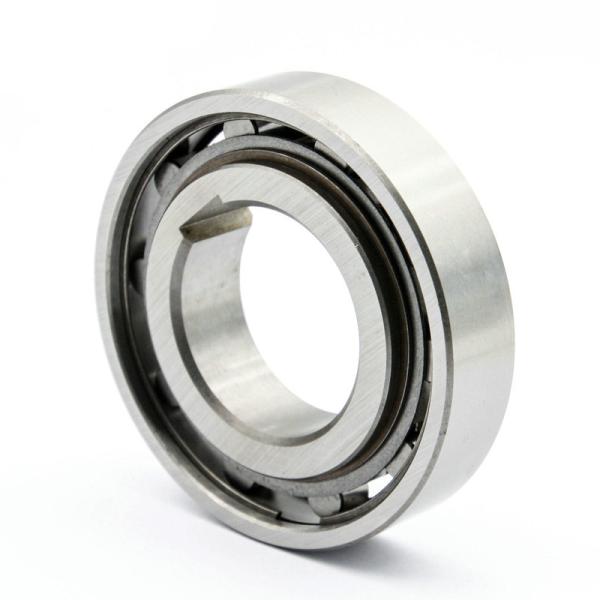

Backstop Cam One Way Clutch Bearings Freewheel Clutch For Reducers TSS40 TSS 40
Backstop Cam One Way Clutch Bearings Freewheel Clutch For Reducers TSS40 TSS 40
Backstop Cam One Way Clutch Bearings Freewheel Clutch For Reducers TSS40 TSS 40
Backstop Cam One Way Clutch Bearings Freewheel Clutch For Reducers TSS40 TSS 40
Backstop Cam One Way Clutch Bearings Freewheel Clutch For Reducers TSS40 TSS 40
Backstop Cam One Way Clutch Bearings Freewheel Clutch For Reducers TSS40 TSS 40
Backstop Cam One Way Clutch Bearings Freewheel Clutch For Reducers TSS40 TSS 40
Backstop Cam One Way Clutch Bearings Freewheel Clutch For Reducers TSS40 TSS 40
Specifications
Brand Name :
SFT
Model Number :
TSS40
Place of Origin :
China
MOQ :
negotiable
Price :
negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
50000PCS/MONTH
Delivery Time :
20-45DAYS
Packaging Details :
carton,pallet
Bore Size :
10 - 200 mm
Material :
Chrome steel
Feature :
High Precision
Torque Capacity(Nm) :
6.7 N.m
Seals Type :
OPEN
Surface Hardness :
HRC60-62
Description

Backstop Cam Clutch One Way Bearing Freewheel Clutch for Reducers TSS40 TSS 40

Cam Clutches are precision devices which lock the inner and outer races,through the wedging action of cams, to transmit torque in one direction of rotation; and overrun in the opposite direction. These units are often referred to as freewheels, sprags, overrunning, backstop or one-way clutches, depending upon their application.

Technical Datas:

Item TSS8
Material GCr15
Bore dia. 8 mm
Outer dia. 24 mm
Width 8 mm
Torque capacity 6.7 N.m
Weight 0.014 kg
Package Carton box, wooden box or as your requirements

Installation and Usage:

1. The TSS Series Cam Clutch is designed for press fit installation.

Correct interference dimensions must be maintained to obtain maximum clutch performance.

The internal diameter of the housing should meet the H7 tolerance. Refer to item 8 in the installation

and usage of BB Series Cam Clutch for information on the installation method.

2. Make sure the housing has enough strength to withstand the pressure required for the press fitting

installation of the clutch.

3. When installing the clutch, mount it with a type 62 bearing to avoid radial force, since this clutch does

not have any bearing support.

4. Confirm the direction of rotation before installation.

5. The recommended shaft tolerance is h7, and the key profile should be in accordance with the following

standard.

6. Suitable surface pressure of the key should be selectedaccording to your company design standards.

Lubrication:

1. Oil lubrication is recommended.

2. Do not use greases or lubricants with EP additives.

MODEL

Torque capacity

(N-m)

 Max Overrunning Clutch (r/min

Drag Torque

(N-m)

Bore size

(H7)

 Keyway A B C D E F

Weight

(g)
Inner race Outer race
TSS8 6.7 6000 3000 0.005 8 2x1.0 8 24 22.2 11.4 0.6 0.6 14
TSS10 12 4500 2300 0.007 10 3x1.4 9 30 27 15.6 0.6 0.6 27
TSS12 17 4000 2000 0.009 12 4x1.8 10 32 29.5 18 0.6 0.6 31
TSS15 22 3500 1800 0.01 15 5x1.2 11 35 32 20.6 0.6 0.6 39
TSS20 41 2600 1300 0.01 20 6x1.6 14 47 40 26.7 0.8 0.8 115
TSS25 56 2200 1100 0.02 25 8x2.0 15 52 45 32 0.8 0.8 140
TSS30 105 1800 900 0.03 30 8x2.0 16 62 55 40 0.8 1.0 215
TSS35 136 1600 800 0.03 35 10x2.4 17 72 63 45 0.8 1.0 300
TSS40 296 1400 700 0.18 40 12x2.2 18 80 72 50 0.8 1.0 425
TSS45 347 1300 650 0.21 45 14x2.1 19 85 75.5 57 1.2 1.0 495
TSS50 403 1200 600 0.22 50 14x2.1 20 90 82 62 1.2 1.0 545
TSS60 649 910 460 0.33 60 18x2.3 22 110 100 80 1.2 1.5 950

Notes:

1. T max = 2 × T KN

2. Inner race overruns

3. Outer race overruns
Keyway to DIN 6885.1
