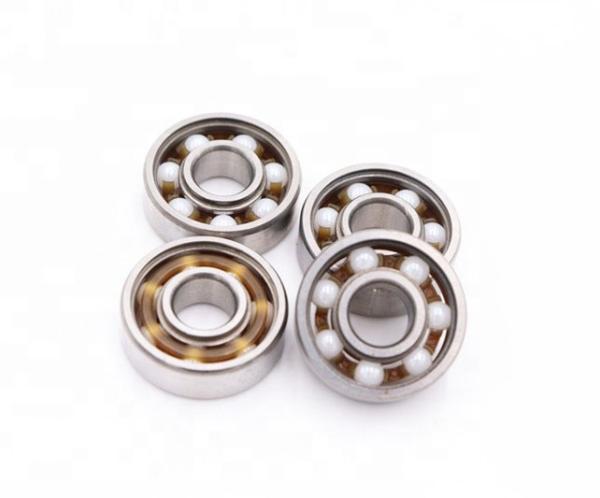

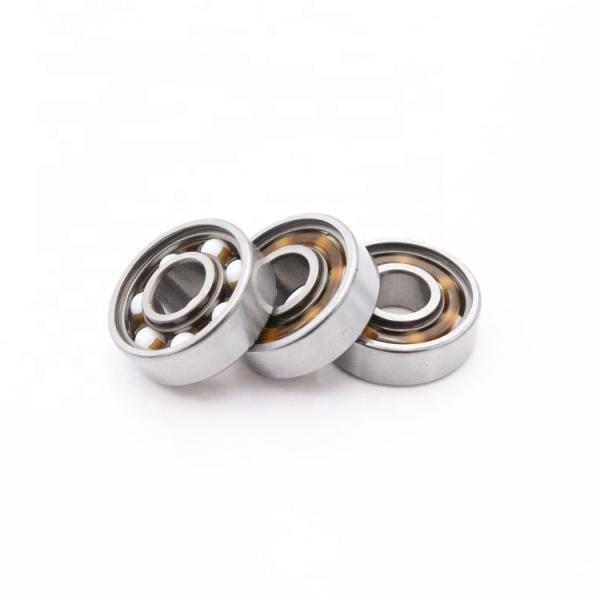

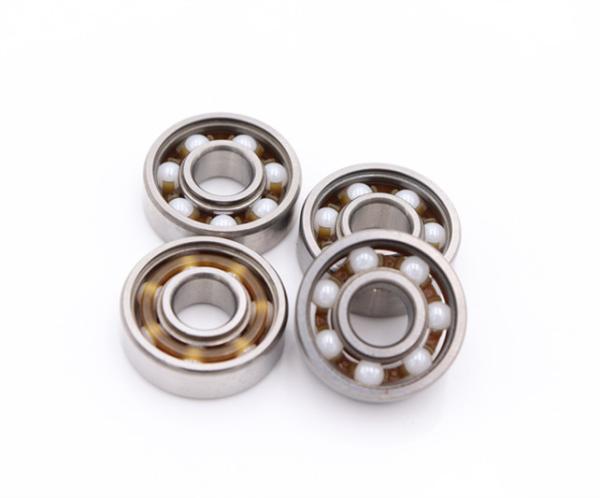

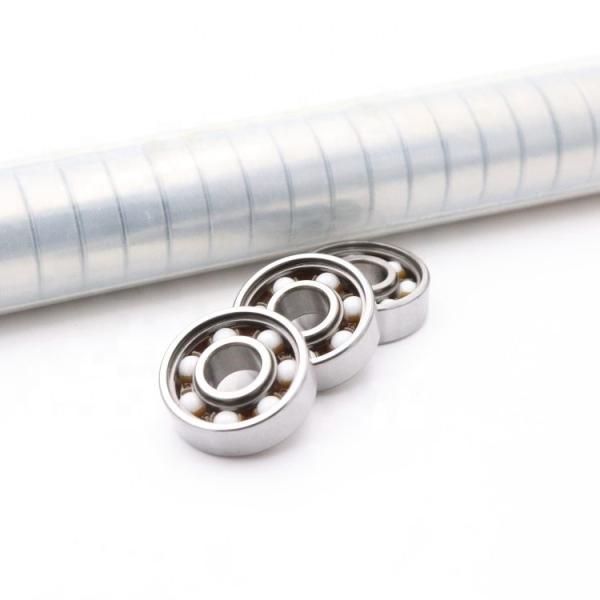

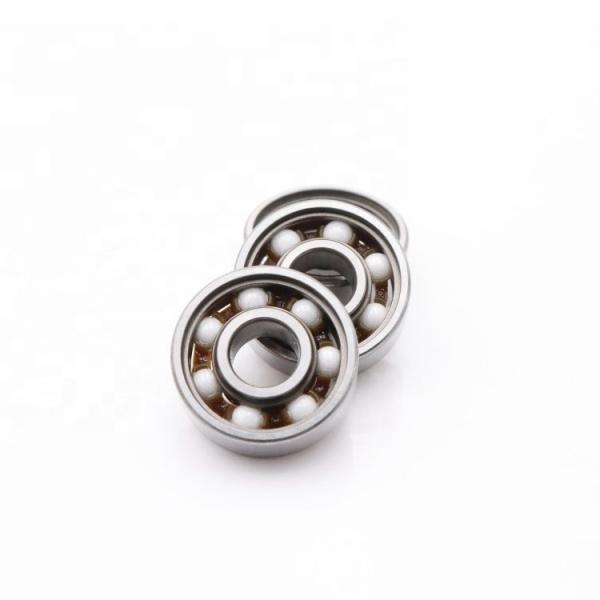

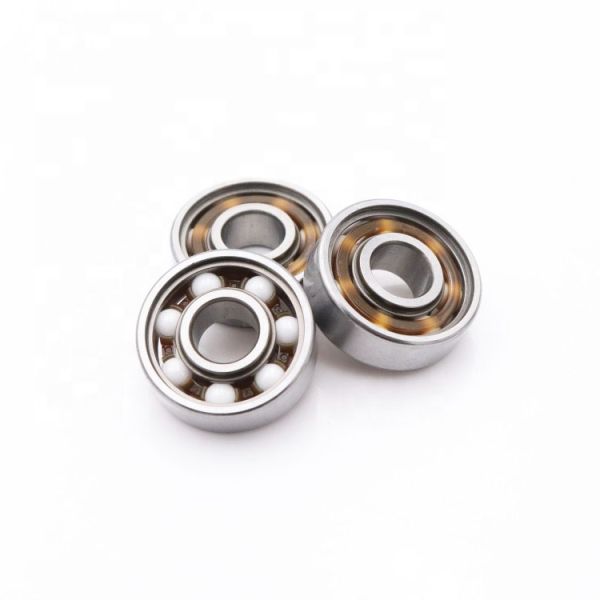

Hybrid Stainless Steel Ball Bearing 6204 CE ABEC-5 20*47*14mm
Hybrid Stainless Steel Ball Bearing 6204 CE ABEC-5 20*47*14mm
Hybrid Stainless Steel Ball Bearing 6204 CE ABEC-5 20*47*14mm
Hybrid Stainless Steel Ball Bearing 6204 CE ABEC-5 20*47*14mm
Hybrid Stainless Steel Ball Bearing 6204 CE ABEC-5 20*47*14mm
Hybrid Stainless Steel Ball Bearing 6204 CE ABEC-5 20*47*14mm
Hybrid Stainless Steel Ball Bearing 6204 CE ABEC-5 20*47*14mm
Hybrid Stainless Steel Ball Bearing 6204 CE ABEC-5 20*47*14mm
Specifications
Brand Name :
SFT
Model Number :
6204 CE
Place of Origin :
China
MOQ :
negotiable
Price :
negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
50000PCS/MONTH
Delivery Time :
20-45DAYS
Packaging Details :
carton,pallet
Number of Row :
Single row
Bore Size :
19.99 - 20 mm
Material of balls :
Si3N4 Ceramic Balls
Size :
20*47*14mm
Cage :
Steel Cage.nylon Cage
Material of rings :
Chrome Steel
Description

Stainless steel ball bearing 6204 CE hybrid ceramic bearing ABEC-5 20*47*14mm

Product Description
Ceramic Hybrid Bearings have Steel races and Ceramic Balls. Ceramic Balls are suitable for applications where high loads, high
speeds and extreme temperatures are factors. Long life and the need for minimal lubrication make this material appropriate for
extreme applications. Ceramic is non-porous, non-magnetic, non corrosive and lighter than steel. In ball form, ceramic balls are
also harder than steel and because ceramic balls are non-porous they are virtually frictionless and capable of spinning faster
than steel balls.

Ceramic Balls are usually made of following materials:

* Silicon Nitride (SiN4)
* Alumina Oxide (Al2O3)
* Zirconia Oxide (ZrO2)
* Silicon Carbide (SiC)

CERAMIC HYBRID BEARING BENEFITS

* High loads, high speeds and extreme temperatures are factors
* Increased bearing life and decreased down time
* Minimal need for lubrication
* No cold welding between ceramic balls and races
* Multi-purpose use in variety of machines and different production lines
* High efficiency, low weight and small size

CERAMIC HYBRID BEARING APPLICATIONS

Ceramic hybrid bearings are widely used in electric motors, aerospace applications, performance racing vehicles, laboratory
equipment, under water applications and more. Any application that requires higher speeds, lower friction and longer life are
ideal for ceramic hybrid bearings.

Bearing No. principle dimensions (mm) limiting speeds(rpm) basic load ratings(kn) mass (kg)
d D B r/min Grease oil dynamic static approx
623 3 10 4 0.15 50000 60000 0.63 0.218 0.0033
624 4 13 5 0.2 40000 48000 1.3 0.485 0.0055
625 5 16 5 0.3 36000 43000 1.88 0.68 0.0067
626 6 19 6 0.3 32000 40000 2.34 0.885 0.0085
627 7 22 7 0.3 32000 37000 3.35 1.4 0.013
628 8 24 8 0.3 31000 36000 4.0 1.59 0.017
629 9 26 8 0.3 30000 35000 4.55 1.96 0.020
6200 10 30 9 0.6 25000 30000 5.10 2.39 0.032
6201 12 32 10 0.6 22000 26000 6.10 2.75 0.037
6202 15 35 11 0.6 19000 23000 7.75 3.60 0.045
6203 17 40 12 0.6 18000 21000 9.60 4.60 0.064
6204 20 47 14 1.0 16000 18000 12.8 6.65 0.108
6205 25 52 15 1.0 13000 15000 14.0 7.85 0.127
6206 30 62 16 1.0 11000 13000 19.5 11.3 0.22
6207 35 72 17 1.1 9800 11000 25.7 15.3 0.267
6208 40 80 18 1.1 8700 10000 29.1 17.8 0.367
6209 45 52 19 1.1 7800 9200 32.5 20.4 0.416
6210 50 90 20 1.1 7100 8300 35.0 23.2 0.462
6211 55 100 21 1.5 6400 7600 42.5 29.2 0.602
6212 60 110 22 1.5 6000 7000 52.5 36.0 0.789
6213 65 120 23 1.5 5500 6500 57.5 40.0 0.99
6214 70 125 24 1.5 5100 6000 62.0 44.0 1.084
6215 75 130 25 1.5 4800 5600 66.0 49.5 1.171
6216 80 140 26 2.0 4500 5300 72.5 53.0 1.448
6217 85 150 28 2.0 4200 5000 83.5 64.0 1.803
6218 90 160 30 2.0 4000 4700 96.0 71.5 2.172
6219 95 170 32 2.1 3700 4400 109.0 82.0 2.62
6220 100 180 34 2.1 3500 4200 122.0 93.0 3.189
6221 105 190 36 2.1 3400 4000 133.0 105.0 3.782
6222 110 200 38 2.1 3200 3800 144.0 117.0 4.421
6224 120 215 40 2.1 2900 3400 155.0 131.0 5.295
6226 130 230 40 3.0 2700 3100 167.0 146.0 6.120

Hybrid Stainless Steel Ball Bearing 6204 CE ABEC-5 20*47*14mmHybrid Stainless Steel Ball Bearing 6204 CE ABEC-5 20*47*14mmHybrid Stainless Steel Ball Bearing 6204 CE ABEC-5 20*47*14mm
