Low Noise Double Row Angular Contact Ball Bearing 5204 ZZ 2RS

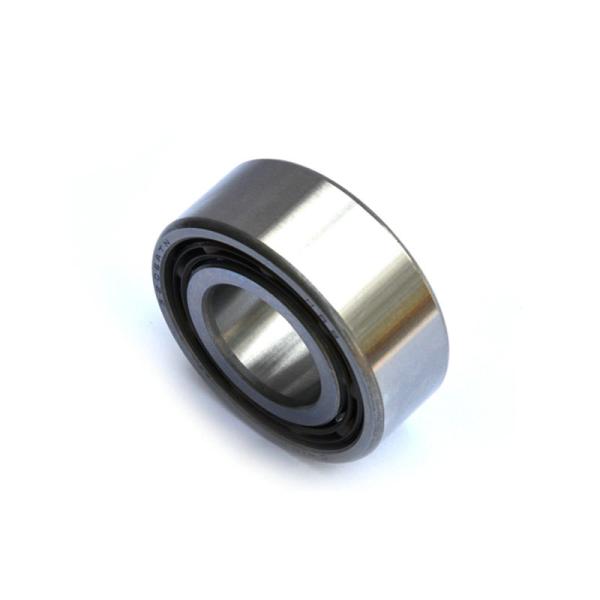

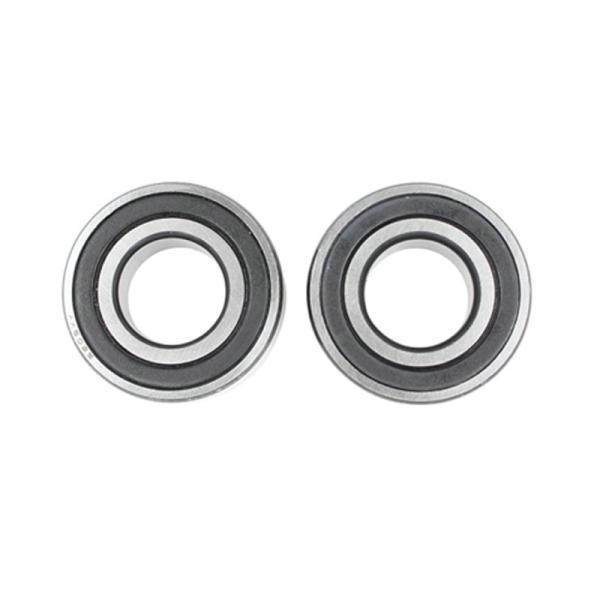

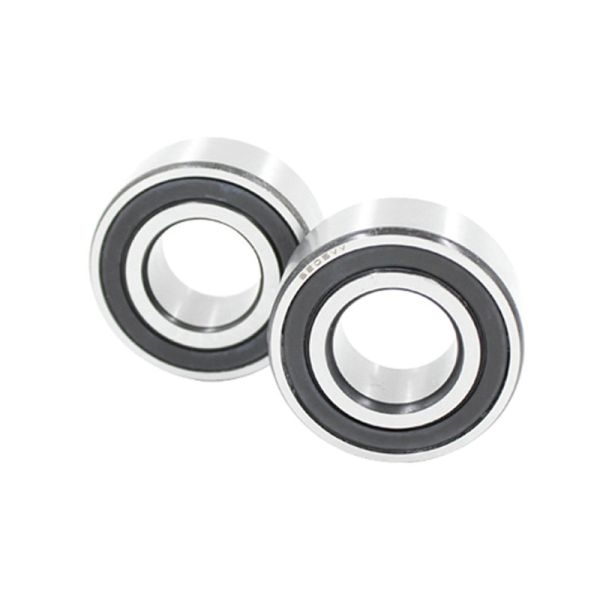

Low Noise Double Row Angular Contact Ball Bearing 5204 ZZ 2RS
Low Noise Double Row Angular Contact Ball Bearing 5204 ZZ 2RS
Low Noise Double Row Angular Contact Ball Bearing 5204 ZZ 2RS
Low Noise Double Row Angular Contact Ball Bearing 5204 ZZ 2RS
Low Noise Double Row Angular Contact Ball Bearing 5204 ZZ 2RS
Low Noise Double Row Angular Contact Ball Bearing 5204 ZZ 2RS
Low Noise Double Row Angular Contact Ball Bearing 5204 ZZ 2RS
Specifications
Brand Name :
SFT
Model Number :
5204 ZZ
Place of Origin :
China
MOQ :
negotiable
Price :
negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
50000PCS/MONTH
Delivery Time :
20-45DAYS
Packaging Details :
carton,pallet
Bore Size :
1 - 20 mm
Number of Row :
Double Row
Noise :
Z1,Z2,Z3
Vibration Level code :
V1,V2.V3
Cage :
Iron Cage
Seals Type :
ZZ/ZRS.RZ/RS. Open,
Description

Angular Contact Ball Bearing 5204 ZZ

Bearing Description of Angular Contact Ball Bearing:

Angular Contact Ball Bearings can bear radial load and axial load at the same time.Able to work at high speed.The higher the contact Angle, the higher the axial bearing capacity.The contact Angle is the Angle between the contact line of the ball and raceway in the radial plane and the vertical line of the bearing axis.High precision and high speed bearings are usually 15 degrees of contact.The contact Angle will increase under axial force.

Advantages of Angular Contact Ball Bearing:

Ultra clean steel to extend bearing life by up to 80%

Advanced grade technology

Quiet and smooth operation even at high speed

Super finished raceways

Offer products in 15,25 and 40 degree angles

Available in arrange of Polyamide, steel and brass cage assembles

Application Area of Angular Contact Ball Bearing:

(1)The single row:

machine tool spindle, high frequency motor, gas turbine, centrifugal separator, small car front wheel, differential pinion shaft

(2) double row:

oil pump, roots blower, air compressor, all kinds of transmission, fuel injection pump, printing machinery

More Model Number We can Supply

New Model Old Model ID(mm) OD(mm) Width(mm) Weight(KG)
5200 3200 10 30 14.3 0.049
5201 3201 12 32 15.9 0.057
5202 3202 15 35 15.9 0.064
5203 3203 17 40 17.5 0.096
5204 3204 20 47 20.6 0.153
5205 3205 25 52 20.6 0.175
5206 3206 30 60 23.8 0.286
5207 3207 35 72 27 0.436
5208 3208 40 80 30.2 0.59
5209 3209 45 85 30.2 0.64
5210 3210 50 90 30.2 0.689
5211 3211 55 100 33.3 0.986
5212 3212 60 110 38.1 1.27
5213 3213 65 120 39.7 1.57
5214 3214 70 125 41.3 1.8
5215 3215 75 130 44.4 1.9

Low Noise Double Row Angular Contact Ball Bearing 5204 ZZ 2RSLow Noise Double Row Angular Contact Ball Bearing 5204 ZZ 2RSLow Noise Double Row Angular Contact Ball Bearing 5204 ZZ 2RS
