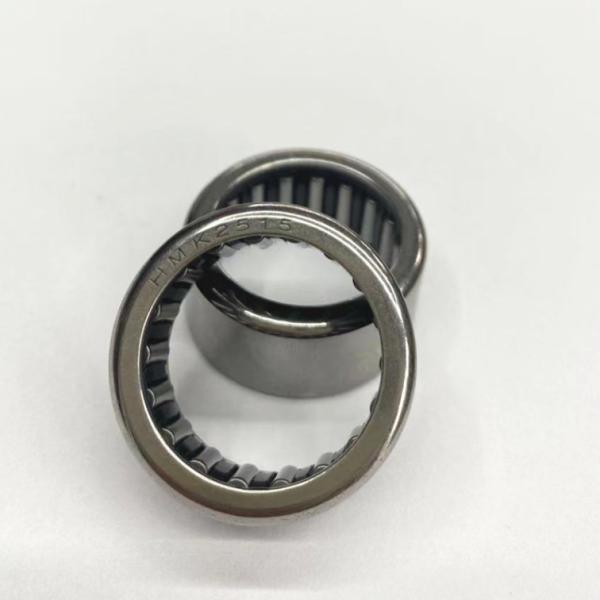

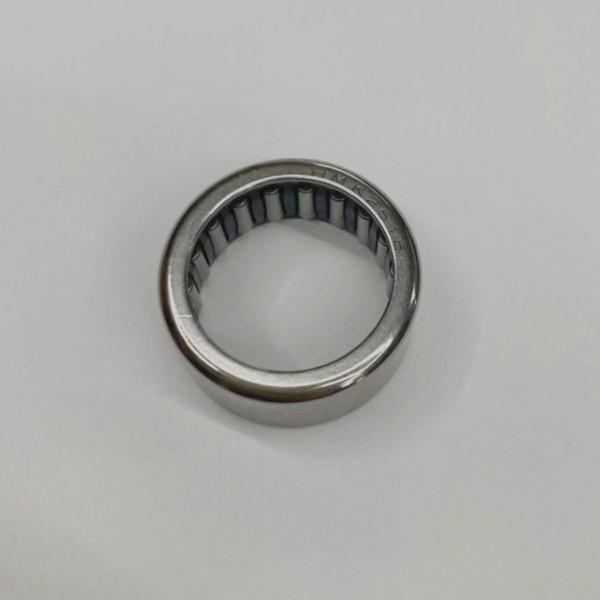

25*33*15Mm HMK2515 TA2515 Single Row Needle Roller Bearing Drawn Cup
25*33*15Mm HMK2515 TA2515 Single Row Needle Roller Bearing Drawn Cup
25*33*15Mm HMK2515 TA2515 Single Row Needle Roller Bearing Drawn Cup
25*33*15Mm HMK2515 TA2515 Single Row Needle Roller Bearing Drawn Cup
25*33*15Mm HMK2515 TA2515 Single Row Needle Roller Bearing Drawn Cup
25*33*15Mm HMK2515 TA2515 Single Row Needle Roller Bearing Drawn Cup
25*33*15Mm HMK2515 TA2515 Single Row Needle Roller Bearing Drawn Cup
25*33*15Mm HMK2515 TA2515 Single Row Needle Roller Bearing Drawn Cup
Specifications
Brand Name :
SFT
Model Number :
HMK2515
Place of Origin :
China
MOQ :
negotiable
Price :
negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
50000PCS/MONTH
Delivery Time :
20-45DAYS
Packaging Details :
carton,pallet
Lubrication :
Grease Lubrication
Bore Size :
25 mm
Number of Row :
Single Row
Seals Type :
2RS
Precision Rating :
P0,P4,P6
Cage material :
nylon & metal
Description

Drawn cup single row needle roller bearing

Product Description

Needle roller bearing is a special type of roller bearing which uses long,thin cylindrical rollers resembing needles.Ordinary
roller bearings' rollers are only slightly longer than their diameter, but needle bearings typically have rollers that are at
least four times longer than their diameter. Like all bearings, they are used to reduce the friction of a rotating surface.

Compared to ball bearings and ordinary roller bearings, needle bearings have a greater surface area in contact with the races, so they can support a greater load. They are also thinner, so they require less clearance between the axle and the surrounding strcture.

Application

Needle roller bearings are widely used in cars, compressors, construction,electric motors,

food industry, home appliances etc. As a rolling element, it turns the world.

Feature

1.Cam follower with needle rollers supports high static and dynamic loads in cam- and track-type applications
2.Stud-type design with a screwdriver slot for through-hole or threaded mounting
Full complement of rollers for higher radial load capacity than caged rollers
3.Nylon lip seals help retain lubricant and prevent contamination
4.Black oxide- treated bearing steel for durability and corrosion resistance

Needle roller bearings size:

Shaft Bearing Model Dimension(mm) Basic Load(N) Limit Speed(rpm) Weight
(mm) d D B Dynamic Static Grease Oil Mass(g)
8 HMK0810 8 15 10 3800 2870 20000 30000 6.7
HMK0812 8 15 12 6600 5800 20000 30000 10
HMK0820 8 15 20 9050 8750 20000 30000 13
9 HMK0912 9 16 12 5300 4450 18000 27000 8.7
HMK0916 9 16 12 7400 6850 18000 27000 12
10 HMK1010 10 17 10 4250 3450 16000 24000 7.9
HMK1012 10 17 12 5600 4850 16000 24000 9.4
HMK1015 10 17 15 7400 6950 16000 24000 12
HMK1020 10 17 20 1020 1050 16000 24000 16
12 HMK1212 12 19 12 7100 6900 13000 20000 11
HMK1215 12 19 15 9400 9900 13000 20000 14
HMK1220 12 19 20 1230 1400 13000 20000 18
15 HMK1510 15 22 10 6100 6000 11000 16000 11
HMK1512 15 22 12 8400 9050 11000 16000 13
HMK1515 15 22 15 1090 1270 11000 16000 16
HMK1520 15 22 20 1490 1890 11000 16000 22
17 HMK1715 17 24 15 1210 1500 9500 14000 18
HMK1720 17 24 20 1550 2070 9500 14000 24
HMK1725 17 24 25 1930 2740 9500 14000 30
18 HMK1813 18 25 13 1020 1220 8500 13000 16
HMK1815 18 25 15 1200 1510 8500 13000 19
HMK1817 18 25 17 1380 1800 8500 13000 21
HMK1819 18 25 19 1550 2090 8500 13000 24
HMK1820 18 25 20 1630 2230 8500 13000 25
HMK1825 18 25 25 2030 2960 8500 13000 31
19 HMK1916 19 27 16 1390 1630 8500 13000 25
HMK1920 19 27 20 1750 2210 8500 13000 31
20 HMK2015 20 27 15 1300 1730 8000 12000 21
HMK20120 20 27 20 1770 2560 8000 12000 27
HMK2025 20 27 25 2200 3400 8000 12000 37
HMK2030 20 27 30 2610 4200 8000 12000 71
21 HMK2116 21 29 16 1530 1910 7500 11000 27
HMK2120 21 29 20 1940 2580 7500 11000 33
22 HMK2210 22 29 10 8400 1010 7500 11000 15
HMK2215 22 29 15 1340 1850 7500 11000 22
HMK2220 22 29 20 1820 2740 7500 11000 30
HMK2225 22 29 25 2360 3850 7500 11000 37
HMK2230 22 29 30 2690 4500 7500 11000 45
24 HMK2420 24 31 20 1880 2920 6500 10000 32
HMK2428 24 31 28 2600 4450 6500 1000 45
25 HMK2510 25 33 10 9150 1040 6500 9500 19
HMK2515 25 33 15 1580 2100 6500 9500 29
HMK2520 25 33 20 2180 3150 6500 9500 39
HMK2525 25 33 25 2670 4100 6500 9500 48
HMK2530 25 33 30 3250 5300 6500 9500 58
26 HMK2616 26 34 16 1710 2340 6000 9000 32
HMK2620 26 34 20 2160 3150 6000 9000 40
28 HMK2820 28 37 20 2360 3250 5500 8500 49
HMK2830 28 37 30 3500 5450 5500 8500 73
29 HMK2920 29 38 20 2460 3500 5500 8500 50
HMK2930 29 38 30 3450 5400 5500 8500 75
30 HMK3015 30 40 15 1710 2210 5500 8000 40
HMK30125 30 40 25 3100 4700 5500 8000 73
HMK3030 30 40 30 3600 5750 5500 8000 87
32 HMK3230 32 42 30 4150 6450 5000 7500 92
35 HMK3512 35 45 12 1490 1760 4700 7000 40
HMK3515 35 45 15 2020 2620 4700 7000 50
HMK3525 35 45 25 3600 5450 4700 7000 83
37 HMK3720 37 47 20 2930 4300 4300 6500 70
HMK3730 37 47 30 4450 7300 4300 6500 105
38 HMK3815 38 48 15 2170 2930 4300 6500 54
HMK3825 38 48 25 3850 6100 4300 6500 90
HMK3830 38 48 30 4600 7700 4300 6500 107
40 HMK4015 40 50 15 2310 3250 4000 6000 56
HMK4025 40 50 25 4100 6750 4000 6000 94
HMK4030 40 50 30 4900 8500 4000 6000 112
45 HMK4525 45 55 25 4150 7150 3700 5500 104
HMK4530 45 55 30 4950 9000 3700 5500 125
50 HMK5012 50 62 12 1820 2360 3200 4800 67
HMK5020 50 62 20 3750 6000 3200 4800 112

Brief introduction

Needle bearing is a roller bearing with a cylindrical roller, which is thin and long relative to its diameter.This roller is called a needle roller.Although has a small cross-section, bearing still has high load capacity, needle bearing with fine and long roller (roller diameter D 5 mm or less, acuity 2.5 L/D, L) for the roller length, so the radial structure is compact, its diameter and load capacity at the same time, with other types of bearing outside diameter to a minimum, especially suitable for the limited size of the radial installation supporting structure.

25*33*15Mm HMK2515 TA2515 Single Row Needle Roller Bearing Drawn Cup25*33*15Mm HMK2515 TA2515 Single Row Needle Roller Bearing Drawn Cup25*33*15Mm HMK2515 TA2515 Single Row Needle Roller Bearing Drawn Cup
