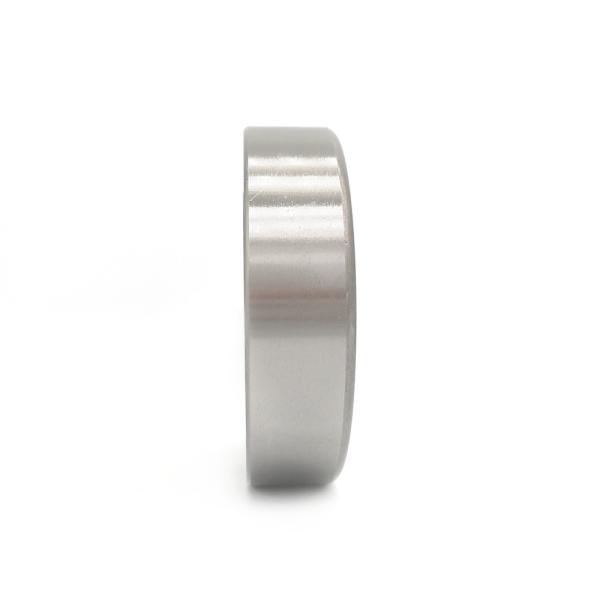

3304 3304 A/C3 Angular Contact Ball Bearing 20x52x22.2mm Skateboard Bearings
3304 3304 A/C3 Angular Contact Ball Bearing 20x52x22.2mm Skateboard Bearings
3304 3304 A/C3 Angular Contact Ball Bearing 20x52x22.2mm Skateboard Bearings
3304 3304 A/C3 Angular Contact Ball Bearing 20x52x22.2mm Skateboard Bearings
3304 3304 A/C3 Angular Contact Ball Bearing 20x52x22.2mm Skateboard Bearings
3304 3304 A/C3 Angular Contact Ball Bearing 20x52x22.2mm Skateboard Bearings
3304 3304 A/C3 Angular Contact Ball Bearing 20x52x22.2mm Skateboard Bearings
3304 3304 A/C3 Angular Contact Ball Bearing 20x52x22.2mm Skateboard Bearings
Specifications
Brand Name :
SFT
Model Number :
3304
Place of Origin :
China
MOQ :
negotiable
Price :
negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
50000PCS/MONTH
Delivery Time :
20-45DAYS
Packaging Details :
carton,pallet
Thickness :
22.2mm
Number of Row :
Single Row
Seals Type :
Open bearing, 2RS bearing, zz
Application :
Automotive.tractor.construction Machinery.rolling Mill
Hardness :
58-63HRC
Cage Material :
nylon cage ,metal cage
Description

supply angular contact ball bearing 3304 3304 A/C3 size 20x52x22.2mm skateboard bearings

Bearing Description of Angular Contact Ball Bearing:

Angular contact ball bearings are able to support radial load and axial load. As single row angular contact ball bearings can only support axial load in single direction, matched bearing mounting is often adopted to them as matched parts of bearings, preload for them is more convenient, Retainers are made of brass, synthetic resins or others subject to indive dual bearing features and application conditions.

Angular contact ball bearings have inner and outer ring raceways that are displaced relative to each other in the direction of the bearing axis. This means that these bearings are designed to accommodate combined loads, i.e. simultaneously acting radial and axial loads.

Angular contact ball bearings are available as:
single row angular contact ball bearings
double row angular contact ball bearings
four-point contact ball bearings
Super-precision angular contact ball bearings
Double row cam rollers
Hub bearing units

Specifications:angular contact ball bearing
Inside diameter 20mm
Outside diameter 52mm
Overall width 22.2mm
Cage material nylon cage bearing, metal cage bearing
Bearing number of row double row bearing
Bearing precision high precision bearing p4 p5 p6 p0
Closure type Open bearing, sealed bearing 2RS

Four point angular contact ball bearing catalogue:

BEARING P.N. Dimensions
d (mm) D (mm) B (mm)
QJ 318 N2MA * 90 190 43
QJ 219 N2MA * 95 170 32
QJ 319 N2MA * 95 200 45
QJ 220 N2MA * 100 180 34
QJ 320 N2MA * 100 215 47
QJ 1021 N2MA 105 160 26
QJ 1022 N2MA 110 170 28
QJ 222 N2MA * 110 200 38
QJ 322 N2MA * 110 240 50
QJ 224 N2MA * 120 215 40
QJ 324 N2MA * 120 260 55
QJ 226 N2MA * 130 230 40
QJ 326 N2MA * 130 280 58
QJ 228 N2MA * 140 250 42
QJ 328 N2MA * 140 300 62
