KH3050PP Self Aligning Linear Motion Bearing Ball Bushing Bearing 30*40*50
KH3050PP Self Aligning Linear Motion Bearing Ball Bushing Bearing 30*40*50
KH3050PP Self Aligning Linear Motion Bearing Ball Bushing Bearing 30*40*50
KH3050PP Self Aligning Linear Motion Bearing Ball Bushing Bearing 30*40*50
KH3050PP Self Aligning Linear Motion Bearing Ball Bushing Bearing 30*40*50
KH3050PP Self Aligning Linear Motion Bearing Ball Bushing Bearing 30*40*50
KH3050PP Self Aligning Linear Motion Bearing Ball Bushing Bearing 30*40*50
KH3050PP Self Aligning Linear Motion Bearing Ball Bushing Bearing 30*40*50
KH3050PP Self Aligning Linear Motion Bearing Ball Bushing Bearing 30*40*50
KH3050PP Self Aligning Linear Motion Bearing Ball Bushing Bearing 30*40*50
Specifications
Brand Name :
SFT
Model Number :
KH3050PP
Place of Origin :
China
MOQ :
negotiable
Price :
negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
50000PCS/MONTH
Delivery Time :
20-45DAYS
Packaging Details :
carton,pallet
Thickness :
50 mm
Precision Rating :
P0 P4 P5 P6
Hardness :
HRC59-63
Feature :
Low Noise, high precision
Outer diameter :
40 mm
Material :
Gcr15/Bearing steel
Description

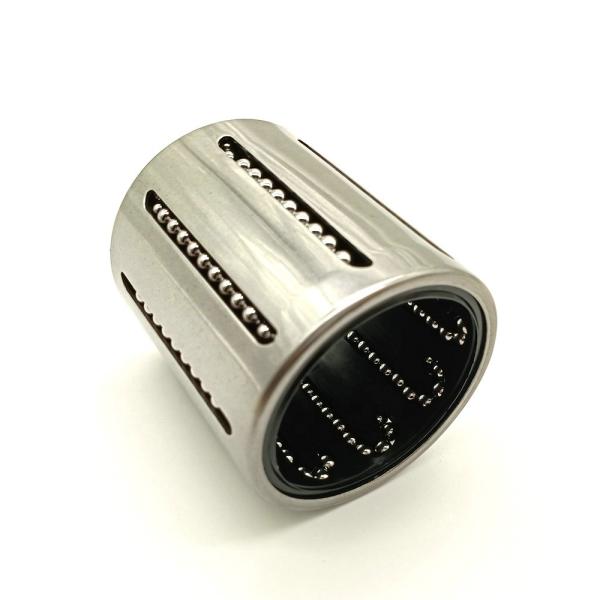

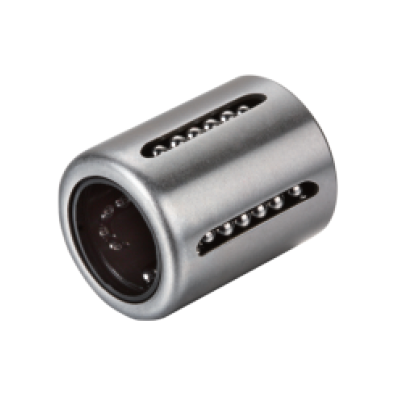

KH3050PP Self Aligning Linear Motion Ball Bushing Bearing 30*40*50

Description of linear ball bearing: Linear motion bearing consists of an outer cylinder,ball retainer,balls and two end rings. The ball retainer which holds the balls in the recirculating trucks in held inside the outer cylinder by end of rings.those parts are assembled to optimize their required functions.the outer cylinder is maintainedsufficient hardness by heat treatment,therefore it ensures the bushings projected travel life and satisfactory durability.we can offer a full line of linear motion bearing:the standard,the clearance adjustable type and the open.double retainer and flanged type, these products are easy to assemble,easy to replace.

Linear ball bearing have the follow charateristics:

1. Material:GCr15 chrome steel and stainless steel SUS440C

2. Cage: nylon, carbon steel and stainless steel cage

3. Quality grade: ABEC-1 ABEC-3

4. Type: KH0622,KH0824,KH1026,KH1428,KH1630,KH2030......

5. Packing: single nylon bag+carton+solid pallet or according to customer's request

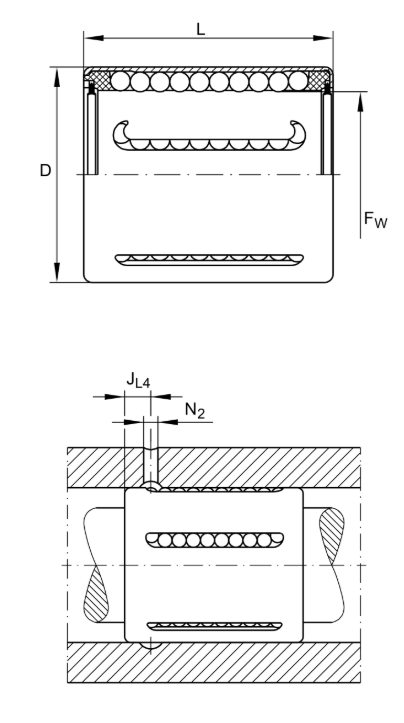

Parameter of linear ball bearings: The following is about KH series bearing KH3050 PP related structure and dimension, which I hope can help you better understand KH series bearing.

KH3050PP Self Aligning Linear Motion Bearing Ball Bushing Bearing 30*40*50

Bearings number

Number of ball rows

weight

Main dimensions

Basic load rating

d

D

L

Dynamic CN

StaticC0N

KH0622PP

4

7

6

12

22

400

239

KH0824PP

4

11.3

8

15

24

435

280

KH1026PP

4

14.4

10

17

26

500

370

KH1228PP

5

18.1

12

19

28

620

510

KH1428PP

5

20.6

14

21

28

620

520

KH1630PP

5

27.2

16

24

30

800

620

KH2030PP

6

32.7

20

28

30

950

790

KH2540PP

6

66

25

35

40

1990

1670

KH3050PP

7

95

30

40

50

2800

2700

KH4060PP

8

182

40

52

60

4400

4450

KH5070PP

9

252

50

62

70

5500

6300

Ps: This is part model number of Linear Ball Bearing we have, if you are fail to find the one you need, please contact us directly

Application:

Linear bearings are used widely in the precision equipment or special industrial machinery. Such as electronic equipment,

food machinery,

packing machinery, medical machine, printer, textile machinery, the robot, CNC machine tools cars, and digital three-dimensional

coordinate measuring device...

KH3050PP Self Aligning Linear Motion Bearing Ball Bushing Bearing 30*40*50KH3050PP Self Aligning Linear Motion Bearing Ball Bushing Bearing 30*40*50KH3050PP Self Aligning Linear Motion Bearing Ball Bushing Bearing 30*40*50
