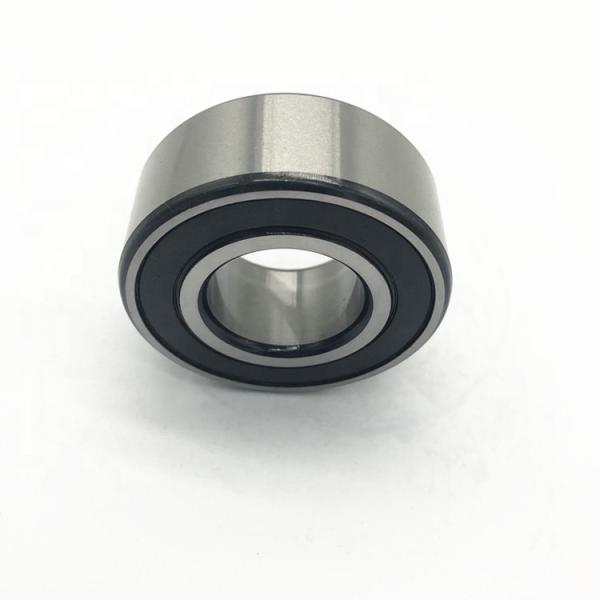

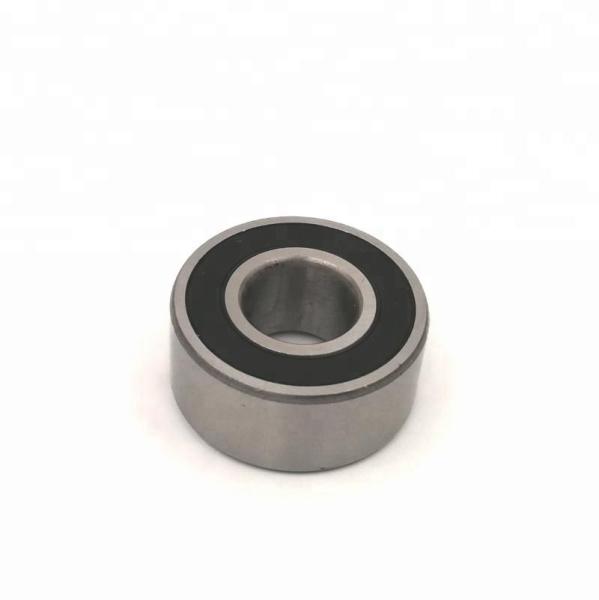

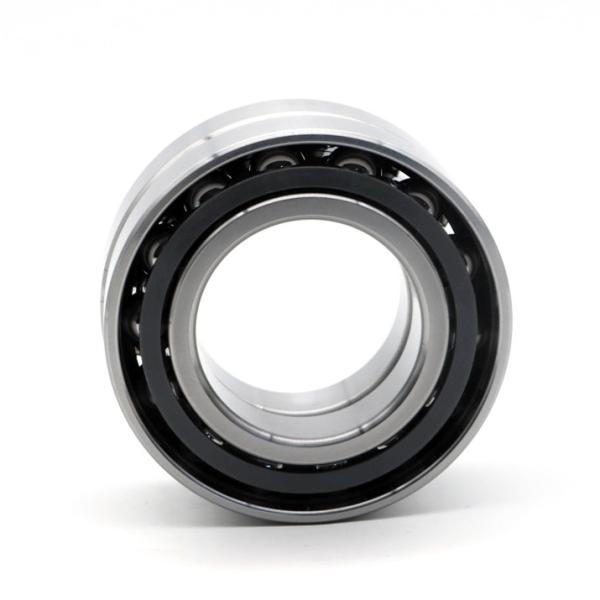

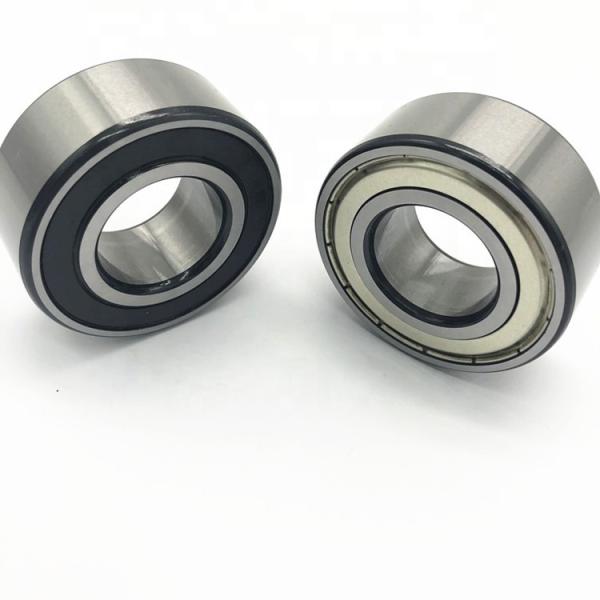

H7005C-2RZ/P4 DBA Angular Contact Thrust Ball Bearing Precision Matching 25*47*12mm
H7005C-2RZ/P4 DBA Angular Contact Thrust Ball Bearing Precision Matching 25*47*12mm
H7005C-2RZ/P4 DBA Angular Contact Thrust Ball Bearing Precision Matching 25*47*12mm
H7005C-2RZ/P4 DBA Angular Contact Thrust Ball Bearing Precision Matching 25*47*12mm
H7005C-2RZ/P4 DBA Angular Contact Thrust Ball Bearing Precision Matching 25*47*12mm
H7005C-2RZ/P4 DBA Angular Contact Thrust Ball Bearing Precision Matching 25*47*12mm
H7005C-2RZ/P4 DBA Angular Contact Thrust Ball Bearing Precision Matching 25*47*12mm
H7005C-2RZ/P4 DBA Angular Contact Thrust Ball Bearing Precision Matching 25*47*12mm
Specifications
Brand Name :
SFT
Model Number :
H7005C-2RZ/P4 DBA
Place of Origin :
China
MOQ :
negotiable
Price :
negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
50000PCS/MONTH
Delivery Time :
20-45DAYS
Packaging Details :
carton,pallet
Contact Angle :
15°/C
Number of Row :
Single row, Single Row
Seal :
Sealed or Open
Size :
25*47*12 mm
Vibration :
Z1V1 Z2V2 Z3V3
Cage :
STEEL BRASS
Description

Angular Contact Ball Bearing H7005C-2RZ/P4 DBA Precision Matching of Bearing Group Bearing25*47*12mm

Product Description

Singular row: machine tool spindle, high-frequency motor, gas turbine, centrifuge, the front-wheel of compact car, differential pinion shaft.

Double rows: oil pump, roots blower,air compressor,various variator, fuel injection pump and printing machinery.

Bearing Type

Size(mm)

Steel Balls Limit Speed(r/min)

Ceramic Balls Limit Speed(r/min)

Weight(kg)≈

d

D

B

r(min)

r1(min)

Grease Lubrication

Steel Balls

Ceramic Balls

H7001C-2RZ
12

28

8

0.3

0.15

50000

75000

0.020

0.017

H7002C-2RZ

15

32

9

0.3

0.15

42500

64000

0.028

0.025

H7003C-2RZ

17

35

10

0.3

0.15

38500

58000

0.038

0.034
H7004C-2RZ
20
42
12
0.6
0.15
32000
48000
0.072
0.065
H7005C-2RZ
25
47
12
0.6
0.15
28000
42000
0.075
0.067

Angular Contact Ball bearings are composed of Inner rings,Outer Rings,Balls and Cage.
1. Ring 's Material: Bearing Steel ZGCr15/GCr15
2. Balls' Material: Bearing Steel GCr15
3. Cage Material: Bakelite,Steel, Phenolic,Nylon,Plastic,Brass etc.
4. Angle: C -15°contact angle, AC-25°contact angle, B-40°contact angle
5.Tolerance Class: ABEC7,ABEC9 (P4,P2)
6. Preload: A-Light Preload , B-Medium Preload, C-Heavy Preload

Angular contact ball bearing include:
1) Single row angular contact ball bearing
2) Matched angular contact ball bearing
3) Double row angular contact ball bearing
4) Four-point contact ball bearing

Angular contact ball bearings features :
1) Load capacities are higher than deep groove ball bearings of same dimensions;
2) Used for bearing radial-axial combined loads or pure thrust loads;
3) Low operating friction and high limiting speed.


H7005C-2RZ/P4 DBA Angular Contact Thrust Ball Bearing Precision Matching 25*47*12mmH7005C-2RZ/P4 DBA Angular Contact Thrust Ball Bearing Precision Matching 25*47*12mmH7005C-2RZ/P4 DBA Angular Contact Thrust Ball Bearing Precision Matching 25*47*12mm
