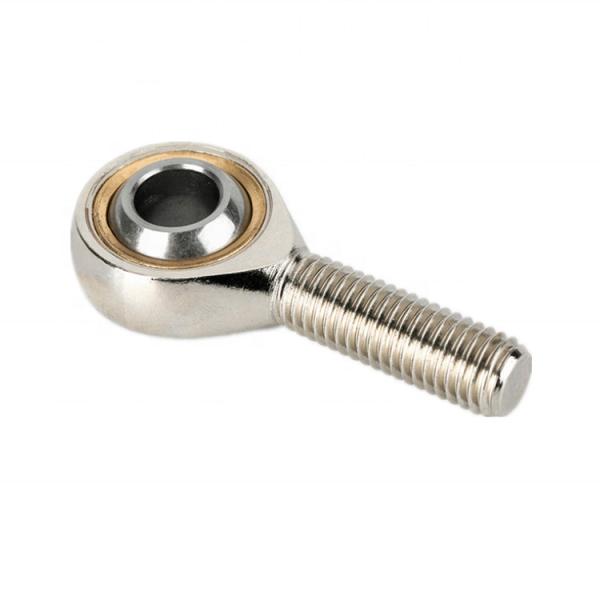

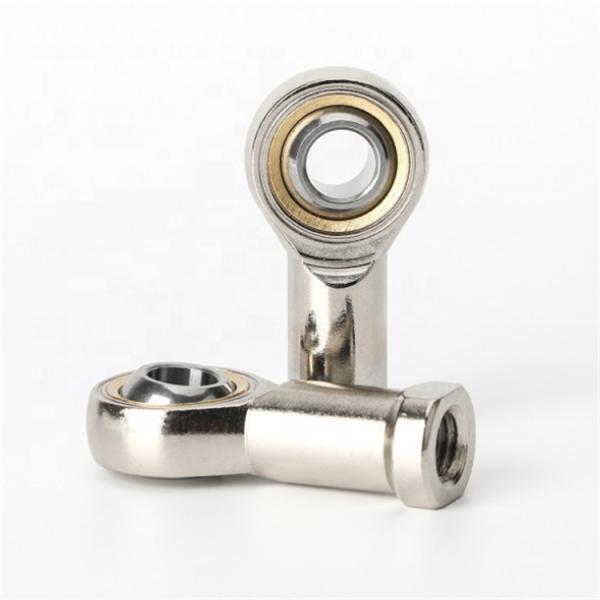

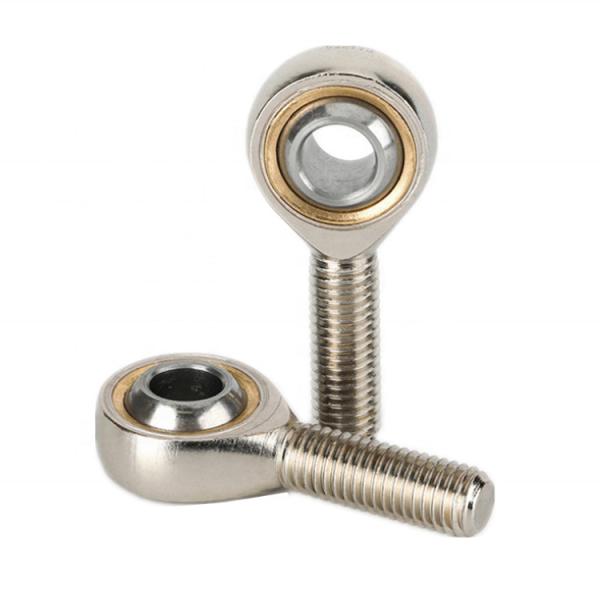

Stainless Steel SI8 SA8 10T/K Ball Joint Rod End Bearings High Temperature Resistance
Stainless Steel SI8 SA8 10T/K Ball Joint Rod End Bearings High Temperature Resistance
Stainless Steel SI8 SA8 10T/K Ball Joint Rod End Bearings High Temperature Resistance
Stainless Steel SI8 SA8 10T/K Ball Joint Rod End Bearings High Temperature Resistance
Stainless Steel SI8 SA8 10T/K Ball Joint Rod End Bearings High Temperature Resistance
Stainless Steel SI8 SA8 10T/K Ball Joint Rod End Bearings High Temperature Resistance
Stainless Steel SI8 SA8 10T/K Ball Joint Rod End Bearings High Temperature Resistance
Stainless Steel SI8 SA8 10T/K Ball Joint Rod End Bearings High Temperature Resistance
Specifications
Brand Name :
SFT
Model Number :
SI8 SA8 10T/K
Place of Origin :
China
MOQ :
negotiable
Price :
negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
50000PCS/MONTH
Delivery Time :
20-45DAYS
Packaging Details :
carton,pallet
Connection screw shape :
Male thread
thickness :
14mm
Feature :
High Precision
Ball Material :
Gcr15 steel, heat treated
Cage :
Steel Cage.Brass Cage.Nylon Cage
Surface Hardness :
HRC60-62
Description

Stainless steel SI8 SA8 10T/K ball joint rod end bearings High Temperature Resistance

Description

A joint bearing, also known as a heim joint (N. America) or rose joint (U.K. and elsewhere), is a mechanical articulating joint. Such joints are used on the ends of control rods, steering links, tie rods, or anywhere a precision articulating joint is required. A ball swivel with an opening through which a bolt or other

attaching hardware may pass is pressed into a circular casing with a threaded shaft attached. The threaded portion may be either male or female.


Rod End Bearing PHS10L mainly bear radial load, but also can withstand a certain amount of axial load which has little friction, high limiting speed, many type of size and forms. It's suitable for precision instruments, low noise motors, automobiles, motorcycles and general machinery, the machinery industry, the most common kind of bearing.


The Rod End is a spherical slide bearing incorporating a spherical inner ring with precision and hardness equivalent to that of steel ball bearings. It provides very smooth rotating and oscillating motion without play.

Material:
Rod end of steel and zinc coated, with male or female thread, spherical surface with bronze liner, inner ring of carbon chromium steel, spherical surface with chromium plating, can be lubricated via a nipple or a hole in the rod end. It has characteristics of large load capability, easy mounting and dismounting and mechanism simplification.

Application

Joint bearings are widely used in hydraulic engineering, metal forming machine tools, construction machinery, automation equipment, automotive shock absorbers, irrigation machinery and other industries.

Drawing and datasheet

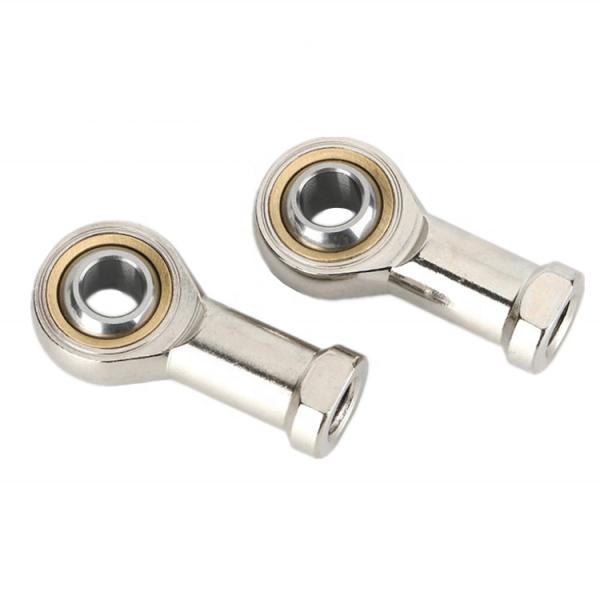

Requiring maintenance, steel-on-steel, female thread-GIR..DO, GIL..DO (SI..E, SIL..ES)
Part No. Dimension (mm) Mass
Right Left d d3 B C1 L3 S d2 (kg)
GIR5-DO GIL5-DO SI 5 E SIL 5 E 5 M5X0.8 6 4.5 10 10 21 16
GIR6-DO GIL6-DO SI 6 E SIL 6 E 6 M6 6 4.4 11 11 21 0.021
GIR8-DO GIL8-DO SI 8 E SIL 8 E 8 M8 8 6 15 14 24 0.039
GIR10-DO GIL10-DO SI 10 E SIL 10 E 10 M10 9 7 20 17 29 0.061
GIR12-DO GIL12-DO SI 12 E SIL 12 E 12 M12 10 8 23 19 34 0.096
GIR15-DO GIL15-DO SI 15 ES SIL 15 ES 15 M14 12 10 30 22 40 0.18
GIR17-DO GIL17-DO SI 17 ES SIL 17 ES 17 M16 14 11 34 27 46 0.22
GIR20-DO GIL20-DO SI 20 ES SIL 20 ES 20 M20x1.5 16 13 40 32 53 0.35
GIR25-DO GIL25-DO SI 25 ES SIL 25 ES 25 M24x2 20 17 48 36 64 0.64
GIR30-DO GIL30-DO SI 30 ES SIL 30 ES 30 M30x2 22 19 56 41 73 0.93
GIR35-DO GIL35-DO SI 35 ES SIL 35 ES 35 M36x3 25 21 60 50 82 1.3
GIR40-DO GIL40-DO SI 40 ES SIL 40 ES 40 M39x3 28 23 65 55 92 2
GIR45-DO GIL45-DO SI 45 ES SIL 45 ES 45 M42x3 32 27 65 60 102 2.5
GIR50-DO GIL50-DO SI 50 ES SIL 50 ES 50 M45x3 35 30 68 65 112 3.5
GIR60-DO GIL60-DO SI 60 ES SIL 60 ES 60 M52x3 44 38 70 75 135 5.5
GIR70-DO GIL70-DO SI 70 ES SIL 70 ES 70 M56x3 49 42 80 85 160 8.6

Stainless Steel SI8 SA8 10T/K Ball Joint Rod End Bearings High Temperature ResistanceStainless Steel SI8 SA8 10T/K Ball Joint Rod End Bearings High Temperature ResistanceStainless Steel SI8 SA8 10T/K Ball Joint Rod End Bearings High Temperature Resistance

Stainless Steel SI8 SA8 10T/K Ball Joint Rod End Bearings High Temperature ResistanceStainless Steel SI8 SA8 10T/K Ball Joint Rod End Bearings High Temperature Resistance

Stainless Steel SI8 SA8 10T/K Ball Joint Rod End Bearings High Temperature Resistance
