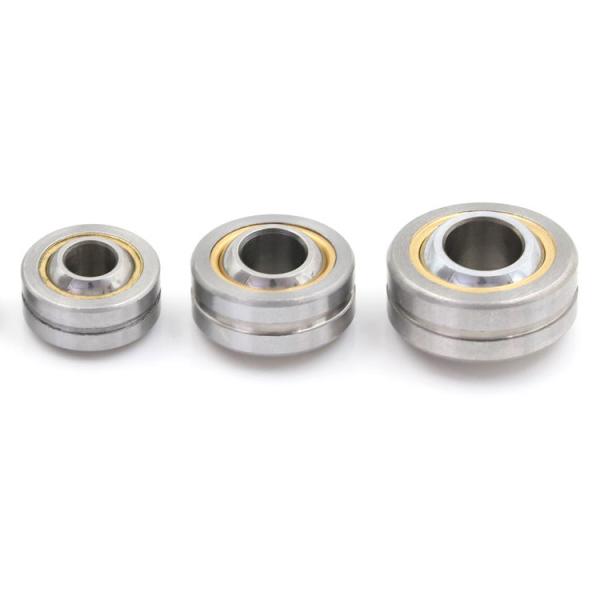

Self-Lubricated Joint Radial spherical plain bearings GEBK5S GEBK6S GEBK8S GEBK10S

Product Description of Spherical Plain Bearing:

Joint bearing is dominated by an inner and outer sphere within a spherical outer ring, canwithstand a greater load.According to their different types and structures that can withstand the radial load,axial load or radial,axial joint load.Since the inner surface of the outer sphere inlaid composite materials,so that the work can be generated in the bearing selflubricating.Generally used for slower swing movement,but also for the tilt angle within a certain range of motion,when the supporting shaft and shaft misalignment large shell hole,still work properly.Self-lubricating auxiliary bearing joints used in water conservancy, specialized machinery and other industries.

Radial spherical plain bearings have an inner ring with a sphered convex outside diameter and an outer ring with a correspondingly
sphered but concave inside surface. Their design makes them particularly suitable for bearing arrangements where alignment
movements between shaft and housing have to be accommodated, or where oscillating or recurrent tilting or slewing movements must
be possible at relatively slow sliding speeds.

Radial spherical plain bearings requiring maintenance have the sliding contact surface combination steel-on-steel. Bearings with
this sliding contact surface combination require regular relubrication. The high wear resistance of the sliding surfaces makes
these bearings especially suitable for bearing arrangements where heavy loads of alternating direction, shock loads or heavy
static loads have to be accommodated. Bearings which have cylindrical extensions at both sides of the inner ring are intended for
applications where normally spacer sleeves are arranged at either side of the bearing, or are specially designed for the bearing
arrangements of hydraulic cylinders.

Feature:

1. Design – Elimination of the guide ring allowed for a design change that improves cage balance and strength.
2. Material Technology – HPS series is made from high-cleanliness Z steel. Special surface treatment of spherical roller bearing increases resistance to wear.
3. Offer advanced material options: Super TF and TL steel, depending on application requirements.
4. Advanced Technology - patented Molded Oil lubrication system is also available.
5. Bearings are also available with an oil groove and holes in the outer ring for re-lubrication purposes. Optional inner ring oil groove and holes available.
