FC 20 Needle Type One Way Lock Bearing FC20 Needle Roller Clutch Bearing
FC 20 Needle Type One Way Lock Bearing FC20 Needle Roller Clutch Bearing
FC 20 Needle Type One Way Lock Bearing FC20 Needle Roller Clutch Bearing
FC 20 Needle Type One Way Lock Bearing FC20 Needle Roller Clutch Bearing
Specifications
Brand Name :
SFT
Model Number :
FC 20
Place of Origin :
CHINA
MOQ :
500
Price :
1-50USD/PC
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
5000PCS
Delivery Time :
45 days
Packaging Details :
neutral
Inner dia. :
20mm
Outer dia. :
26mm
Thickness :
16mm
Type :
Needle
Weight :
17g
Seals Type :
Non sealed
Description

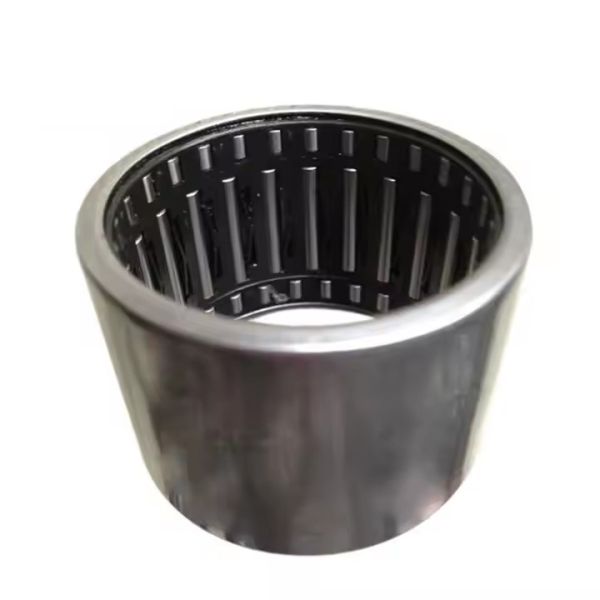

Needle Type One Way Lock Bearing FC20

Product Description

Features of FC one way lock bearing

♦Three pieces needles equipped to be locking assembly function.
♦Torque increases double of the normal HF Model.
♦Allow high indexing frequencies due to their low mass .

SPECIFICATIONS
Model FC20
Material Outer race: ST14, Holder: Nylon , Needle: Stainless Steel
Inner diameter 20mm
Outer diameter 16mm
Thickness 16mm
Torque capacity 28.5Nm
Weight 17g
Package roll pack
Delivery time 1 days for sample, 5-7 day for big order
Payment Terms TT, L/C, D/P, D/A, Western Union, Paypal

Catalogue of fc one way lock bearing for your choice

Type Weight(g) Dimension
Fw D C Rotational torque
FC4K 1 4 8 6 0.34
FC6 3 6 10 12 1.76
FC6K 3 6 10 12 1.76
FC8 4 8 14 12 5.3
FCL8K 3.5 8 12 12 5
FC10 4.8 10 16 12 6
FCL10K 4 10 14 12 5.3
FC12 11 12 18 16 12.2
FC14K 13 14 20 16 17.3
FC16 14 16 22 16 20.5
FC20 17 20 26 16 28.5
FC25 30 25 32 20 66
FC30 36 30 37 20 90
FC35 40 35 42 20 121
FCB8 10 14 14 20 5
FCB10 15 16 16 20 10
FCB12 18 18 18 26 12.2
FCB16 22 22 22 26 20.5
FCB20 27 26 26 26 28.5
FCB25 44 32 32 30 66
FCB30 51 37 37 30 90
FCB35 58 42 42 30 121
