Backstop Clutch Cage SF SF56-21 One Way Clutch for Conveyor
Backstop Clutch Cage SF SF56-21 One Way Clutch for Conveyor
Backstop Clutch Cage SF SF56-21 One Way Clutch for Conveyor
Backstop Clutch Cage SF SF56-21 One Way Clutch for Conveyor
Specifications
Brand Name :
SFT
Model Number :
SF56-21
Place of Origin :
China
MOQ :
negotiable
Price :
negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
50000PCS/MONTH
Delivery Time :
20-45DAYS
Packaging Details :
carton,pallet
Inner Diameter :
56.12 mm
Torque range (Nm) :
1050 Nm
Outer diameter :
100 mm
Applicable Industries :
CNC machine, PCB processing machinery, etc
WEIGHT :
0.11 kg
Type :
Sprag
Description

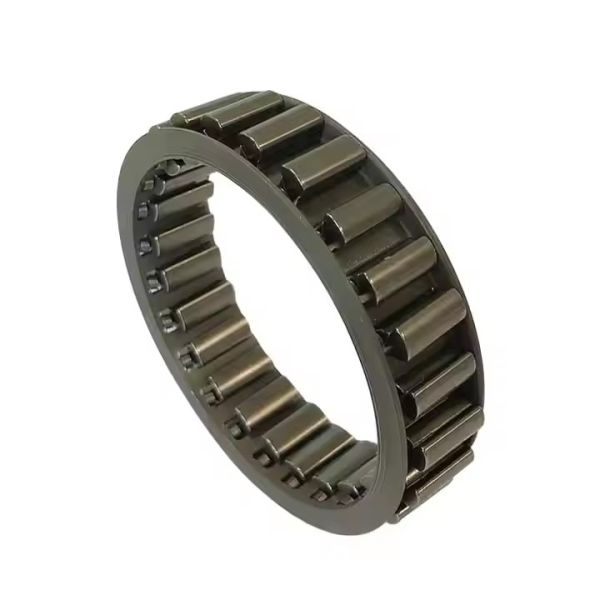

Backstop Clutch Cage SF SF56-21 One Way Clutch for Conveyor

Product Description

Product name SF one way bearings
Model SF42-21
Torque capacity 720Nm
Inner diameter 56.12mm
Outer diameter 100mm
Material GCr15
Weight 0.11kg
Package Carton Box / Wooden Box
Payment terms TT, L/C, D/A, D/P, Western Union
Delivery time IN STOCK

Catalogue of dc one way bearings for your choice

Backstop Clutch Cage SF SF56-21 One Way Clutch for Conveyor

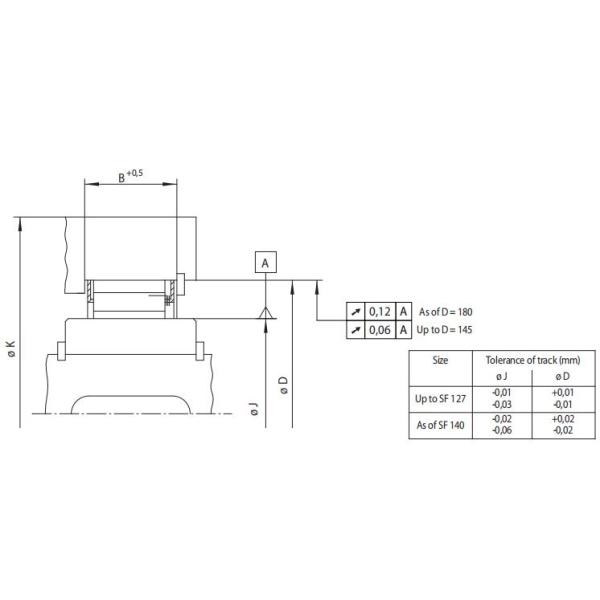

Freewheel Size Type Nominal t orque Type Nominal t orque Type Nominal t orque

Sprag lift-off at

outer ring speed

min-1

 J D B K Sprags Quantity Weight
MN MN MN mm mm mm mm kg
SF18-13,5 J 66 18,80 35,47 13,5 50 10 0,04
SF23-13,5 J 120 23,63 40,29 13,5 55 12 0,04
SF27-13,5 J 160 JT 160 JZ 100 3 600 27,78 44,42 13,5 65 14 0,05
SF31-13,5 J 170 JT 170 JZ 110 3 400 31,75 48,41 13,5 70 12 0,04
SF32-21,5 J 400 32,77 49,44 21,5 65 14 0,07
SF37-14,5 K 270 KT 270 KZ 210 2 900 37 55 14,5 75 14 0,06
SF42-21 J 720 42,10 58,76 21 85 18 0,09
SF44-14,5 K 500 KT 500 KZ 400 2 250 44 62 14,5 90 20 0,08
SF46-21 J 840 46,77 63,43 21 90 20 0,10
SF50-18,5 K 680 KT 680 KZ 580 2 250 50 68 18,5 90 20 0,10
SF56-21 J 1 050 56,12 72,78 21 100 22 0,11
SF57-18,5 K 950 KT 950 KZ 800 2 000 57 75 18,5 105 24 0,13
SF61-21 J 1 300 JT 1 300 JZ 1 150 1 550 61,91 78,57 21 110 26 0,14
SF72-23,5 K 2 100 KT 2 100 KZ 1 850 1 550 72 90 23,5 135 32 0,23
SF82-25 K 2 300 KT 2 300 KZ 2 100 1 450 82 100 25 140 36 0,26
SF107-25 K 3 300 KT 3 300 KZ 3 100 1 300 107 125 25 170 48 0,35
SF127-25 K 4 900 KT 4 900 KZ 4 600 1 200 127 145 25 210 56 0,40
SF140-50 S 13 600 ST 13 600 SZ 10 500 950 140 180 50 260 24 1,70
SF140-63 S 18 000 ST 18 000 SZ 14 000 800 140 180 63 260 24 2,00
SF170-50 S 17 000 ST 17 000 SZ 13 500 880 170 210 50 290 28 1,95
SF170-63 S 23 000 ST 23 000 SZ 18 500 720 170 210 63 290 28 2,40
SF200-50 S 23 000 ST 23 000 SZ 18 500 820 200 240 50 325 36 2,50
SF200-63 S 29 000 ST 29 000 SZ 23 500 680 200 240 63 325 36 3,10
SF230-63 S 37 000 ST 37 000 SZ 29 500 650 230 270 63 360 45 3,90
SF270-50 S 35 000 ST 35 000 SZ 29 500 720 270 310 50 410 48 3,40
SF270-63 S 44 000 ST 44 000 SZ 37 000 600 270 310 63 410 48 4,20
SF340-50 S 45 000 ST 45 000 SZ 43 000 640 340 380 50 510 60 4,20
SF340-63 S 67 500 ST 67 500 SZ 57 500 540 340 380 63 510 60 5,20
SF380-50 S 57 000 ST 57 000 SZ 48 500 610 380 420 50 550 63 4,40
SF440-63 S 93 000 ST 93 000 SZ 80 000 470 440 480 63 640 72 6,20
