Steel/PTFE fabric material GE100UK-2RS Spherical Plain Knuckle Bearing for Machinery Repair Shops
Steel/PTFE fabric material GE100UK-2RS Spherical Plain Knuckle Bearing for Machinery Repair Shops
Steel/PTFE fabric material GE100UK-2RS Spherical Plain Knuckle Bearing for Machinery Repair Shops
Steel/PTFE fabric material GE100UK-2RS Spherical Plain Knuckle Bearing for Machinery Repair Shops
Specifications
Brand Name :
SFT
Model Number :
GE100UK-2RS
Place of Origin :
China
MOQ :
negotiable
Price :
negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
50000PCS/MONTH
Delivery Time :
20-45DAYS
Packaging Details :
carton,pallet
Applicable Industries :
Machinery Repair Shops
Precision Rating :
High Precision
ID :
15-300mm
OD :
26-430mm
Lubrication :
PTFE
Material :
Steel/Steel and Steel/PTFE fabric material
Single package size :
29X28X19 cm
Single gross weight :
5.000 kg
Description

Features of Spherical plain bearing

SPECIFICATION
Model GE...ET/2RS / GE...UK/2RS
Material Stainless Steel / PTFE
Inner diameter 15-300mm
Outer diameter 26-430mm
ball width 12-165mm
Model Available GE, GEES2RS, GAC, GEC, GEG, GEZ, GEEM, GET, ......
Application Agricultural machinery, Shock absorber, etc
Package Tube, carton box, wooden box, pallet
Delivery time 1 day for sample, 3-5 day for medium order, 10-20 day for big order quantity
OEM Accept
Payment terms TT, L.C, D/A, D/P, Western Union, Paypal

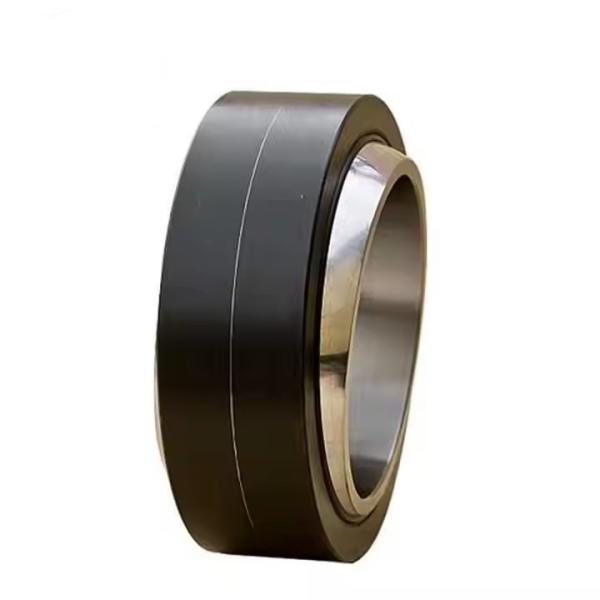

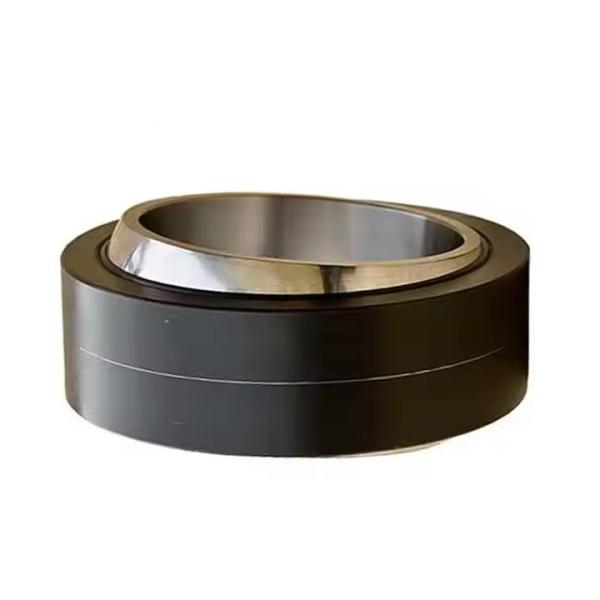

GE...ET-2RS/GE...UK-2RS Spherical Plain Bearing

1, Material:

Inner ring: GCr15, Heat treated, Hard Chromed Plated

Outer Ring: GCr15, Heat Treated , Phosphate Treated
2, Heat Treatment: the inner and outer rings are all quenched . The outer ring are phosphating , and the inner ring surface are chrome-plating.
3, Structure: The outer ring has an axial slot.Sealing rings are attached on the both of the sides.The inside surface of the outer ring is stuck with a layer of PTFE fabric.
4, Performance Characteristic: It has the advantages of self-lubricating, abrasion resistance, self aligning and low friction. It is suitable for dusty enviroment , and applies to the machine which requires heavy radial load and axial load in a small-range direction.

MODEL DIMENSIONS Radial Loads Weight
B D W T c1 c2 Static DYN kg
GE15ET-2RS GE15UK-2RS 15 26 12 9 0.3 0.3 16 84 0.027
GE17ET-2RS GE17UK-2RS 17 30 14 10 0.3 0.3 21 106 0.041
GE20ET-2RS GE20UK-2RS 20 35 16 12 0.3 0.3 30 146 0.066
GE25ET-2RS GE25UK-2RS 25 42 20 16 0.6 0.6 48 240 0.119
GE30ET-2RS GE30UK-2RS 30 47 22 18 0.6 0.6 62 310 0.153
GE35ET-2RS GE35UK-2RS 35 55 25 20 0.6 1 79 399 0.233
GE40ET-2RS GE40UK-2RS 40 62 28 22 0.6 1 99 495 0.306
GE45ET-2RS GE45UK-2RS 45 68 32 25 0.6 1 127 637 0.427
GE50ET-2RS GE50UK-2RS 50 75 35 28 0.6 1 156 780 0.546
GE55ET-2RS GE55UK-2RS 55 85 40 32 0.6 1 200 1000 0.939
GE60ET-2RS GE60UK-2RS 60 90 44 36 1 1 245 1220 1.04
GE70ET-2RS GE70UK-2RS 70 105 49 40 1 1 313 1560 1.55
GE80ET-2RS GE80UK-2RS 80 120 55 45 1 1 400 2000 2.31
GE90ET-2RS GE90UK-2RS 90 130 60 50 1 1 488 2440 2.75
GE100ET-2RS GE100UK-2RS 100 150 70 55 1 1 607 3030 4.45
GE110ET-2RS GE110UK-2RS 110 160 70 55 1 1 654 3270 4.82
GE120ET-2RS GE120UK-2RS 120 180 85 70 1 1 950 4750 8.05
GE140ET-2RS GE140UK-2RS 140 210 90 70 1 1 1070 5350 11.02
GE160ET-2RS GE160UK-2RS 160 230 105 80 1 1 1360 6800 14.01
GE180ET-2RS GE180UK-2RS 180 260 105 80 1.1 1.1 1530 7650 18.65
GE200ET-2RS GE200UK-2RS 200 290 130 100 1.1 1.1 2120 10600 28.03
GE220ET-2RS GE220UK-2RS 220 320 135 100 1.1 1.1 2320 11600 35.51
GE240ET-2RS GE240UK-2RS 240 340 140 100 1.1 1.1 2550 12700 39.91
GE260ET-2RS GE260UK-2RS 260 370 150 110 1.1 1.1 3030 15190 51.54
GE280ET-2RS GE280UK-2RS 280 400 155 120 1.1 1.1 3570 17850 65.06
GE300ET-2RS GE300UK-2RS 300 430 165 120 1.1 1.1 3800 19100 78
