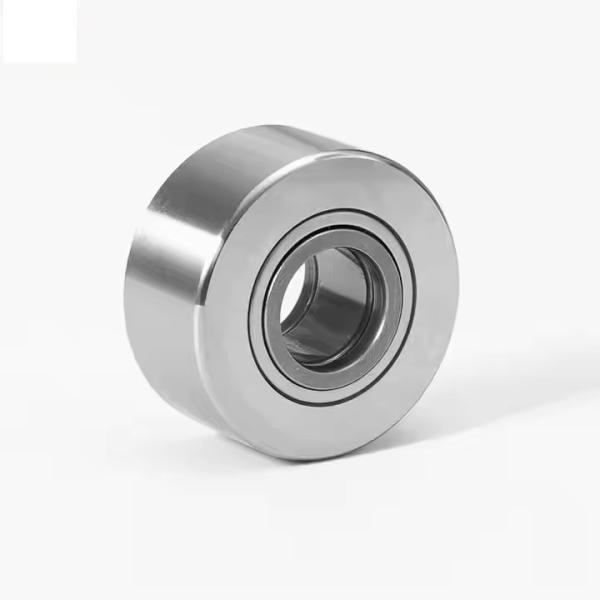

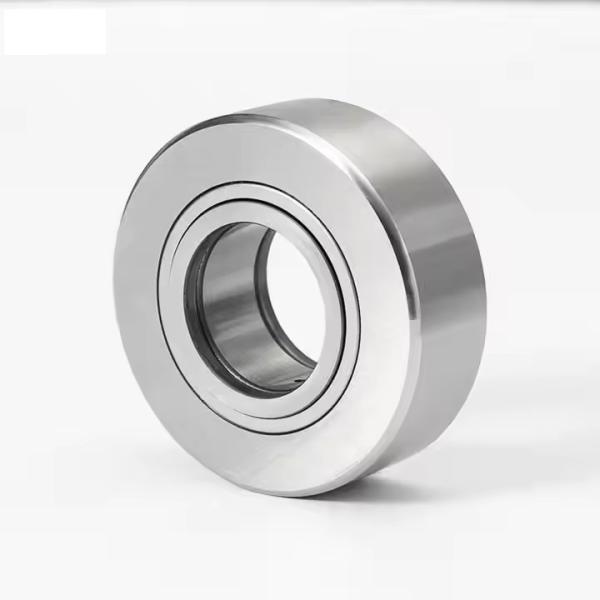

NUTR Series NUTR50 NUTR50110 Cam Follower Track Roller Bearing NUTR 50 110
NUTR Series NUTR50 NUTR50110 Cam Follower Track Roller Bearing NUTR 50 110
NUTR Series NUTR50 NUTR50110 Cam Follower Track Roller Bearing NUTR 50 110
NUTR Series NUTR50 NUTR50110 Cam Follower Track Roller Bearing NUTR 50 110
Specifications
Brand Name :
SFT
Model Number :
NUTR50110
Place of Origin :
CHINA
MOQ :
500
Price :
1-50USD/PC
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
5000PCS
Delivery Time :
45 days
Packaging Details :
neutral
OD :
110mm
Thickness :
32mm
Number of Row :
Single row
Driving Torgue :
54Nm
Weight :
1690G
Seal Type :
non-sealed
Description

NUTR Series NUTR50 NUTR50110 Cam Follower Track Roller Bearing NUTR 50 110

Product Description

Description of NUTR Track Roller Bearing :

1. Track roller bearings are needle roller bearings with the deep drawn, thin-walled outer ring with either an open end or closed end.

2. The bearings are characterized by a very low sectional height and high load carrying capacity

3. The bearings are typically used in applications where the housing bore can not be used as a raceway for a needle roller and cage assembly but where a very compact and ecnomical bearing arrangement is required.

4. Typically, drawn cup needle roller bearings have a single row of rollers. However, wide sizes incorporate two needle roller and cage assemblies immediately asjacent to each other with a lubrication hole in the outer ring.

Product name Track Roller Bearing
Model NUTR35
Material GCr15
Inner diameter 35mm
Outer diameter 72mm
Thickness 29mm
Limiting speed 2100r/min
Weight 630g
Payment terms TT. L/C, D/A,D/P,Western Union
Delivery time 2-4 days for the sample, 7 days for big order

Catalogue of track roller bearing nutr17 for your choice

Outside Diameter Bearing Designation and mass approx Boundary Dimensions Basic Load Rating Limiting Speed
With IR

Mass

 d D B C d1 Cr Dynamic Cor Static York Type Track Grease
Cw Cow
mm g mm N rpm
35 NUTR 15 99 15 35 19 18 20 20500 24500 13900 15300 6500
40 NUTR 17 147 17 40 21 20 22 21800 28500 16500 20500 5500
42 NUTR 15 42 158 15 42 19 18 20 20500 24500 16800 21800 6500
47 NUTR 17 47 220 17 47 21 20 22 21800 28500 19000 25000 5500
NUTR 20 245 20 47 25 24 27 36900 48900 26000 33500 4200
52 NUTR 20 52 321 20 52 25 24 27 36900 48900 29800 39800 4200
NUTR 5 281 25 52 25 24 31 40800 58500 27500 35000 3400
62 NUTR 25 62 450 25 62 25 24 31 40800 58500 32500 47800 3400
NUTR 30 465 30 62 29 28 38 56800 77500 39500 49500 2600
72 NUTR 30 72 697 30 72 29 28 38 56800 77500 46000 62800 2600
NUTR 35 630 35 72 29 28 44 63000 91000 42500 59000 2100
80 NUTR 35 80 836 35 80 29 28 44 63000 91000 49500 70500 2100
NUTR 40 816 40 80 32 30 51 87900 108000 54000 73600 1600
85 NUTR 45 883 45 85 32 30 55 93600 119000 54000 77500 1400
90 NUTR 40 90 1129 40 90 32 30 51 87900 108000 63800 93600 1600
NUTR 50 950 50 90 32 30 60 98900 140000 55900 79000 1300
100 NUTR 45 100 1396 45 100 32 30 55 93600 119000 70500 106000 1400
110 NUTR 50 110 1690 50 110 32 30 60 98900 140000 73600 118000 1300
