China Factory NATR NATV NATR6 NATV6 PP 6x19x12 Cam Follower Needle One Way Roller Bearing Track Bearing
China Factory NATR NATV NATR6 NATV6 PP 6x19x12 Cam Follower Needle One Way Roller Bearing Track Bearing
China Factory NATR NATV NATR6 NATV6 PP 6x19x12 Cam Follower Needle One Way Roller Bearing Track Bearing
China Factory NATR NATV NATR6 NATV6 PP 6x19x12 Cam Follower Needle One Way Roller Bearing Track Bearing
Specifications
Brand Name :
SFT
Model Number :
NATR6 NATV6
Place of Origin :
CHINA
MOQ :
500
Price :
1-50USD/PC
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
5000PCS
Delivery Time :
45 days
Packaging Details :
neutral
Bore Size :
5 - 50 mm
Width :
15.875mm
Inner dia. :
53.975mm
Outer dia. :
24 mm
Cage :
Steel Cage
Seals Type :
open
Description

Cam Follower Bearing NATR NATV Series One Way Roller Bearing

China Factory NATR NATV NATR6 NATV6 PP 6x19x12 Cam Follower Needle One Way Roller Bearing Track Bearing

Product Description

China Factory NATR NATV NATR6 NATV6 PP 6x19x12 Cam Follower Needle One Way Roller Bearing Track Bearing

Data Sheet

Item NATV/NATR
Material GCr15
Inner dia. 5-50 mm
Outer dia. 16-90 mm
Width 12-32mm
Weight 14-990g
Delivery time 10-15 days
Package single package or as your requirements

Feature

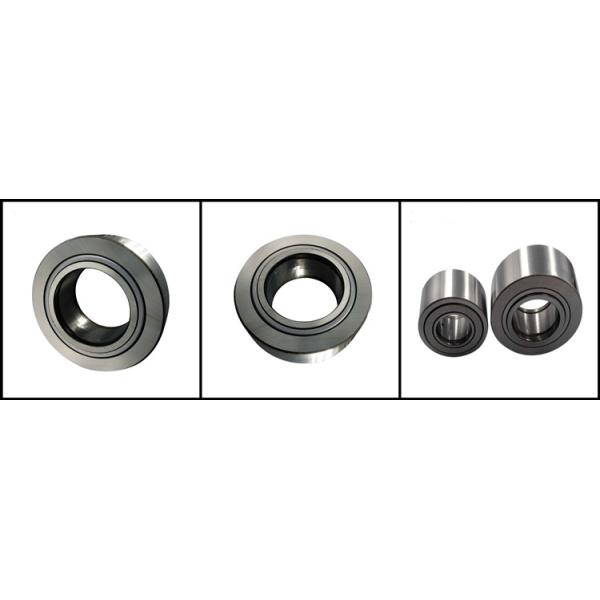

1.Cam Follower is a bearing having thick outer ring and a stud to which needletype rollers are built into, and it is a bearing having small friction coefficient and excellent rotational performance designed for outer ring revolution.

2.With the purpose of increasing the load area effectively, this bearing is designed so that the radial gap is smaller than the general needle roller bearings. Therefore, it alleviates the impact load, and a stable longlife is gained. Since the stud undergoes screw processing and stepped processing, they can be attached easily.

3.Cam Followers come in series of abundant types such as those with cages, full complement,

shield type, sealed type, spherical outer ring, cylindrical outer ring and ones with hexagon sockets.

Different Sizes For Your Reference

China Factory NATR NATV NATR6 NATV6 PP 6x19x12 Cam Follower Needle One Way Roller Bearing Track Bearing

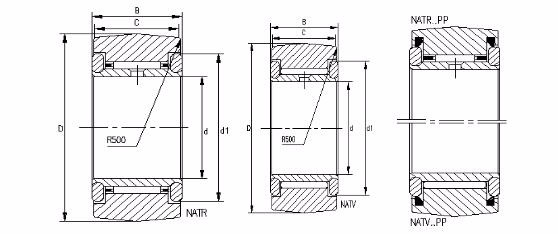

Shaft Dia. Bearing Designation BoundaryDimensions Weight

Without Inner

Race

 With Inner Race d D B C d1 rs g
mm mm min
16 NATR 5 NATR 5 PP 5 16 12 11 12 0.15 14
NATV 5 NATV 5 PP 5 16 12 11 12 0.15 15
19 NATR 6 NATR 6 PP 6 19 12 11 14 0.15 20
NATV 6 NATV 6 PP 6 19 12 11 14 0.15 21
24 NATR 8 NATR 8 PP 8 24 15 14 19 0.3 41
NATV 8 NATV 8 PP 8 24 15 14 19 0.3 42
30 NATR 10 NATR 10 PP 10 30 15 14 23 0.6 64
NATV 10 NATV 10 PP 10 30 15 14 23 0.6 65
32 NATR 12 NATR 12 PP 12 32 15 14 25 0.6 72
NATV 12 NATV 12 PP 12 32 15 14 25 0.6 72
35 NATR 15 NATR 15 PP 15 35 19 18 27 0.6 103
NATV 15 NATV 15 PP 15 35 19 18 27 0.6 105
40 NATR 17 NATR 17 PP 17 40 21 20 32 1 144
NATV 17 NATV 17 PP 17 40 21 20 32 1 152
47 NATR 20 NATR 20 PP 20 47 25 24 37 1 246
NATV 20 NATV 20 PP 20 47 25 24 37 1 254
52 NATR 25 NATR 25 PP 25 52 25 24 42 1 275
NATV 25 NATV 25 PP 25 52 25 24 42 1 285
62 NATR 30 NATR 30 PP 30 62 29 28 51 1 470
NATV 30 NATV 30 PP 30 62 29 28 51 1 481
72 NATR 35 NATR 35 PP 35 72 29 28 58 1.1 635
NATV 35 NATV 35 PP 35 72 29 28 58 1.1 647
80 NATR 40 NATR 40 PP 40 80 32 30 66 1.1 805
NATV 40 NATV 40 PP 40 80 32 30 66 1.1 890
85 NATR 45 NATR 45 PP 45 85 32 30 72 1.1 910
90 NATR 50 NATR 50 PP 50 90 32 30 76 1.1 960
NATV 50 NATV 50 PP 50 90 32 30 76 1.1

990
