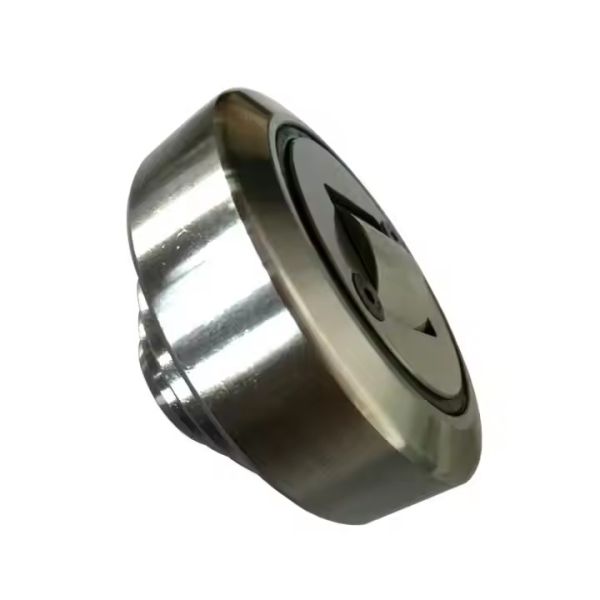

4.055 4.054 4.053 Combined Needle Roller Bearings
4.055 4.054 4.053 Combined Needle Roller Bearings
4.055 4.054 4.053 Combined Needle Roller Bearings
4.055 4.054 4.053 Combined Needle Roller Bearings
Specifications
Brand Name :
SFT
Model Number :
4.055
Place of Origin :
CHINA
MOQ :
500
Price :
1-50USD/PC
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
5000PCS
Delivery Time :
45 days
Packaging Details :
neutral
Precision Rating :
P0
Seals Type :
Sealed
Number of Row :
Single row
Cage :
Steel Cage
Weight :
0.900 kg
Seal Type :
non-sealed
Description
Product Description

Description of Combined Roller Bearing for Forklift

The Combined Roller Bearing is composed of two main rollers, a side roller and a shaft head, which are installed in two different directions to reduce space and reduce manufacturing costs. The radial and axial direction bearing capacity is relatively large, and the accessories are highly replaceable. The adjustable combined roller bearing can adjust the position of the mandrel by adjusting the eccentric outer hexagon or the eccentric valve to achieve the purpose of adjusting the axial dimension of the side roller.

Composite roller bearings are mainly used in: forklifts, stackers, metallurgical industry, container front forks, cranes and other large lifting equipment and material lifting equipment.

Catalogue of Combined Roller Bearings for Forklift

Model No.

D

mm.

T

mm.

 d -0.05 mm. H mm. h mm. B mm. A mm. S mm. r mm. C KN COKN COAKN

r/pm

max.

Weight

kg
4.053 52,5 40 30 33,0 27,0 17 5,0 15 2 24,0 32,0 7 800 0,46
4.054 62,5 42 30 37,5 30,5 20 2,5 20 3 31,0 35,5 11 900 0,53
4.055 70,1 48 35 44,0 36,0 23 2,5 22 4 45,5 51,0 14 900 0,80
4.056 77,7 54 40 48,0 36,5 23 3,0 26 4 48,0 56,8 18 800 1,00
4.057 77,7 53 40 40,0 29,0 23 3,0 26 4 48,0 56,8 18 800 0,87
4.058 88,4 59 45 57,0 44,0 30 3,5 26 3 68,0 72,0 23 750 1,62
4.059 101,2 67 50 46,0 33,0 28 3,0 30 3 73,0 82,0 27 700 1,74
4.06 107,7 71 55 54,0 39,0 31 3,0 34 5 81,0 95,0 36 650 2,27
4.061 107,7 71 60 69,0 55,0 31 4,0 34 5 81,0 95,0 36 650 2,82
4.062 123,0 80 60 72,3 56,0 37 5,0 40 5 110,0 132,0 50 550 3,89
4.063 149,0 103 60 78,5 58,5 43 5,5 50 3 151,0 192,0 71 450 6,52
