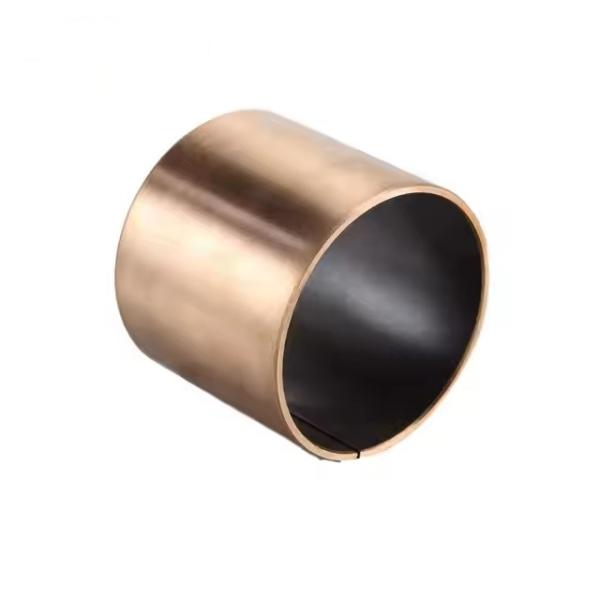

China Factory SF-1 Du Oilless Composite Sliding Self Lubricating Bearing Bushing , PAP P10 Composite Metal Polymer Plain DU Bearing Bushes
China Factory SF-1 Du Oilless Composite Sliding Self Lubricating Bearing Bushing , PAP P10 Composite Metal Polymer Plain DU Bearing Bushes
China Factory SF-1 Du Oilless Composite Sliding Self Lubricating Bearing Bushing , PAP P10 Composite Metal Polymer Plain DU Bearing Bushes
China Factory SF-1 Du Oilless Composite Sliding Self Lubricating Bearing Bushing , PAP P10 Composite Metal Polymer Plain DU Bearing Bushes
China Factory SF-1 Du Oilless Composite Sliding Self Lubricating Bearing Bushing , PAP P10 Composite Metal Polymer Plain DU Bearing Bushes
China Factory SF-1 Du Oilless Composite Sliding Self Lubricating Bearing Bushing , PAP P10 Composite Metal Polymer Plain DU Bearing Bushes
China Factory SF-1 Du Oilless Composite Sliding Self Lubricating Bearing Bushing , PAP P10 Composite Metal Polymer Plain DU Bearing Bushes
China Factory SF-1 Du Oilless Composite Sliding Self Lubricating Bearing Bushing , PAP P10 Composite Metal Polymer Plain DU Bearing Bushes
Specifications
Brand Name :
SFT
Model Number :
SF-1
Place of Origin :
China
MOQ :
500PCS
Price :
USD1-USD100/PC
Payment Terms :
D/P, T/T, Western Union, MoneyGram
Supply Ability :
100000PCS/Month
Delivery Time :
7-50days
Packaging Details :
bag+carton+pallet
Type :
sleeve
Material :
Steel Base+Bronze Powder+PTFE
Lubrication :
Self lubricating
Advantage :
Maintenance free
Bush types :
Cylindrial, Flanged, Thrust Washer
Surface treatment :
Coppper plating
Description
Specification
Material Structure

1. PTFE/Fibre mixture thickness 0.01~0.03mm
surfaces of the bearing assembly to establish the self-lubricating feature.
2. Sintered bronze powder thickness 0.20-0.35mm, provides strong mechanical bond and excellent thermal conductivity.
3. Steel backing Provides mechanical strength.
Technical Data:
GENERAL
Unit
Value
Maximum load
Static
Dynamic
N/mm2
N/mm2
250
140
Operating temperature
Min
Max
°C
°C
- 200
280
Coefficient of linear thermal expansion
Parallel to the surface
Normal to the surface
10-6/K
10-6/K
11
30
Material
Steel Base+Bronze Powder +PTFE
Typical Application
the printing, woven, tobacco and gymnastic machinery, etc.
Max Static Load
250N/mm²
Max Dynamic Load
140N/mm²
Max Oscoillation Load
60N/mm²
Max Line Speed
Dry 2.5m/s, Oil > 5m/s
PV Value Limit
Dry 1.8N/mm².m/s,Oil 3.6N/mm².m/s
Friction Coefficient
Dry 0.08~0.20, Oil 0.02~0.12
Mating Axis
Hardness >220, Roughness 0.4~1.25
Working Temperature
-200~+280℃
Thermal Conductivity
40W/mk
Coefficient Of Linear Expansion
11×10-6/K
In addition to the standard product catalog is displayed, we provide non-standard product or to order according to customer requirements.
