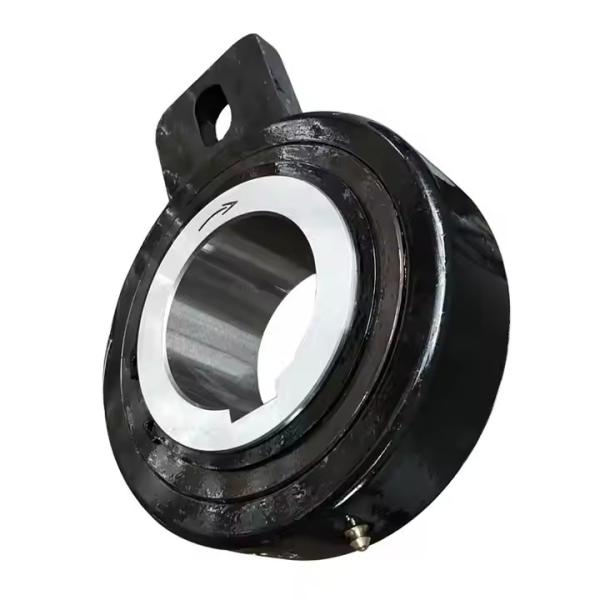

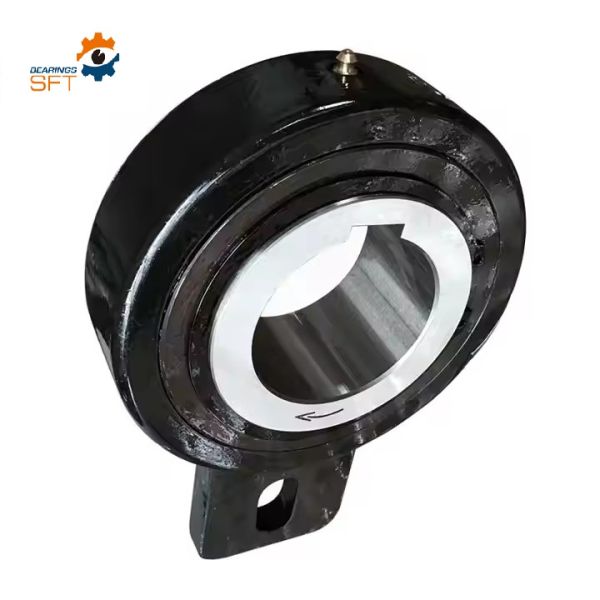

BSEU CAM CLUTCH BSEU25-25 Sprag Type One Way Backstop Bearing
BSEU CAM CLUTCH BSEU25-25 Sprag Type One Way Backstop Bearing
BSEU CAM CLUTCH BSEU25-25 Sprag Type One Way Backstop Bearing
BSEU CAM CLUTCH BSEU25-25 Sprag Type One Way Backstop Bearing
BSEU CAM CLUTCH BSEU25-25 Sprag Type One Way Backstop Bearing
BSEU CAM CLUTCH BSEU25-25 Sprag Type One Way Backstop Bearing
BSEU CAM CLUTCH BSEU25-25 Sprag Type One Way Backstop Bearing
BSEU CAM CLUTCH BSEU25-25 Sprag Type One Way Backstop Bearing
Specifications
Brand Name :
SFT
Model Number :
BSEU 25-25
Place of Origin :
China
MOQ :
negotiable
Price :
negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
50000PCS/MONTH
Delivery Time :
20-45DAYS
Packaging Details :
carton,pallet
Application :
Country elevator, Foods conveying conveyor
Inner diameter :
20mm
Outer diameter :
83mm
Torque capacity :
216 Nm
Type :
Sprag
Weight :
0.948 kg
Seals Type :
sealed
Material :
GCr15
Description

BSEU CAM CLUTCH BSEU25-25 Sprag type one way backstop bearing

Introduction

BSEU series Cam Clutch was developed as European style Backstopping Cam Clutch which has easy usage. It has Cam & Roller construction that the roller works as a bearing same as the small size BS series Cam Clutch. The outer race has special shape which was combined the torque arm, so only stopping the rotation is required. You can select the correct model from various bore size from 20 mm to 90 mm in each 5 mm. Backstopping for the country elevator or the foods conveying conveyor which is used in the factory is the recommendation. The recommends BS series Cam Clutch in the very dusty environment condition or the inclined conveyor and the bucket elevator which are used in outside location.

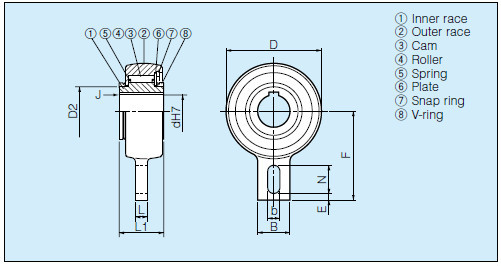

Different Sizes For Your Reference

BSEU CAM CLUTCH BSEU25-25 Sprag Type One Way Backstop Bearing

Model Bore Size Torque
Capacity
(N·m)		 Max.
Overrunning
(r/min)
Inner Race
D
D2
L1
L
B
F
b
N
E
J


W.

Min

kg


W. Max

kg
Dia
(H7)
Keyway
BSEU25 20 6×2.8 216  500 83 42 35 12 40 90 15 35 5 1
0.999
0.948
BSEU25 25 8×3.3 216  500 83 42 35 12 40 90 15 35 5 1
BSEU40 20 6×2.8 1,440  450 118 60 55 15 40 110 15 35 8 1.5

3.781

3.363
BSEU40 25 8×3.3 1,440  450 118 60 55 15 40 110 15 35 8 1.5
BSEU40 30 8×3.3 1,440  450 118 60 55 15 40 110 15 35 8 1.5
BSEU40 35 10×3.3 1,440  450 118 60 55 15 40 110 15 35 8 1.5
BSEU40 40 12×3.3 1,440  450 118 60 55 15 40 110 15 35 8 1.5
BSEU70 45 14×3.8 3,140  350 165 90 59 20 80 140 18 35 10 1.5

7.607

6.541
BSEU70 50 14×3.8 3,140  350 165 90 59 20 80 140 18 35 10 1.5
BSEU70 55 16×4.3 3,140  350 165 90 59 20 80 140 18 35 10 2
BSEU70 60 18×4.4 3,140  350 165 90 59 20 80 140 18 35 10 2
BSEU70 65 18×4.4 3,140  350 165 90 59 20 80 140 18 35 10 2
BSEU70 70 20×4.9 3,140  350 165 90 59 20 80 140 18 35 10 2
BSEU90 75 20×4.9 4,700  250 190 120 63 20 80 165 20 40 15 2
10.046
9.265
BSEU90 80 22×5.4 4,700  250 190 120 63 20 80 165 20 40 15 2
BSEU90 85 22×5.4 4,700  250 190 120 63 20 80 165 20 40 15 2
BSEU90 90 25×5.4 4,700  250 190 120 63 20 80 165 20 40 15 2

BSEU CAM CLUTCH BSEU25-25 Sprag Type One Way Backstop Bearing

BSEU CAM CLUTCH BSEU25-25 Sprag Type One Way Backstop Bearing

BSEU CAM CLUTCH BSEU25-25 Sprag Type One Way Backstop Bearing
