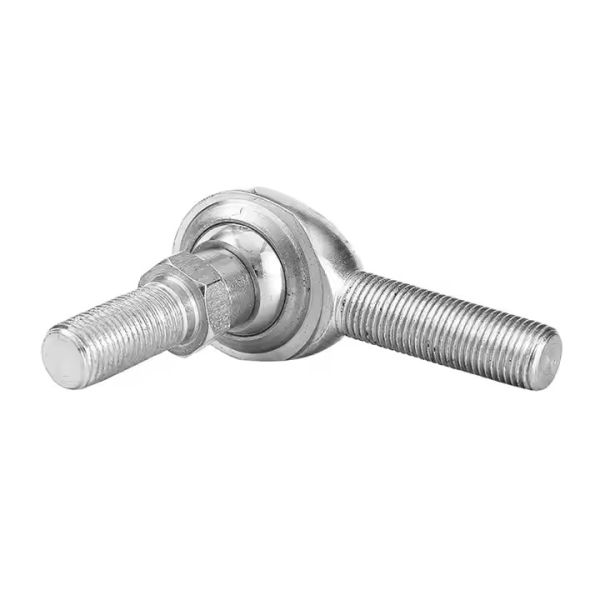

High Performance CM10TY Inch Size Chromoly Male Rod Ends With Stud
High Performance CM10TY Inch Size Chromoly Male Rod Ends With Stud
High Performance CM10TY Inch Size Chromoly Male Rod Ends With Stud
High Performance CM10TY Inch Size Chromoly Male Rod Ends With Stud
Specifications
Brand Name :
SFT
Model Number :
SF20ES
Place of Origin :
China
MOQ :
negotiable
Price :
negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
50000PCS/MONTH
Delivery Time :
20-45DAYS
Packaging Details :
carton,pallet
Product type :
Inch Rod Ends,2-piece,Male,Right & Left Hand Threads,With stud
Housing material/Finish :
Mild steel.Forged or Turned, Cr3 Zinc plated
Outer ring material/Finish :
Lubrication free
Sliding contact :
Steel to Nylon
Feature :
Reinforeced Nylon Polymer
Lubrication required/Lubrication free :
Lubrication free
Description

High Performance CM10TY Inch Size Chromoly Male Rod Ends with Stud

High Performance CM10TY Inch Size Chromoly Male Rod Ends With Stud

Bearing No. Dimensions(mm/inches) Ball
dia		 a°
mis.
angle		 Load
raings
(KN)		 weigh
≈kg
d2 C1 d3
UNF-2A		 h L1 (L4) N
UNF-2A		 s P L
CM3TY 15.88 5.94 10-32 31.75 19.05 39.69 10-32 11.1 12.7 25.8 11.11 22 4.4 0.018
CM3TY 0.625 0.234 10-32 1.250 0.750 1.562 10-32 0.437 0.500 1.016 7/16 22 4.4 0.018
CM4TY 19.05 6.35 1/4-28 39.67 25.4 49.2 1/4-28 12.7 14.27 26.18 12.7 20 8.2 0.022
CM4TY 0.750 0.250 1/4-28 1.562 1.000 1.937 1/4-28 0.500 0.562 1.031 1/2 20 8.2 0.022
CM5TY 22.23 7.92 5/16-24 47.63 31.75 58.75 5/16-24 15.06 17.45 30.96 15.88 21 10.2 0.045
CM5TY 0.875 0.312 5/16-24 1.875 1.250 2.312 5/16-24 0.593 0.687 1.219 5/8 21 10.2 0.045
CM6TY 25.4 9.11 3/8-24 49.23 31.75 61.92 3/8-24 20.62 23 39.67 18.26 23 14 0.068
CM6TY 1.000 0.359 3/8-24 1.938 1.250 2.437 3/8-24 0.812 0.906 1.562 23/32 23 14 0.068
CM7TY 28.58 10.31 7/16-20 53.98 34.93 68.27 7/16-20 23.8 26.97 44.45 20.62 22 17.6 0.108
CM7TY 1.125 0.406 7/16-20 2.125 1.375 2.678 7/16-20 0.937 1.062 1.750 13/16 22 17.6 0.108
CM8TY 33.33 11.5 1/2-20 61.93 38.1 78.58 1/2-20 25.4 28.58 50.8 23.8 24 23.7 0.158
CM8TY 1.312 0.453 1/2-20 2.438 1.500 3.093 1/2-20 1.000 1.125 2.000 15/16 24 23.7 0.158
CM10TY 38.1 12.3 5/8-18 66.68 41.28 85.73 5/8-18 34.93 38.1 63.5 28.57 26 25.7 0.276
CM10TY 1.500 0.484 5/8-18 2.625 1.625 3.375 5/8-18 1.375 1.500 2.500 9/8 26 25.7 0.276
CM12TY 44.45 15.06 3/4-16 73.03 44.45 95.25 3/4-16 41.28 46.02 76.2 33.33 23 42.4 0.467
CM12TY 1.750 0.593 3/4-16 2.875 1.750 3.750 3/4-16 1.625 1.812 3.000 21/16 23 42.4 0.467

High Performance CM10TY Inch Size Chromoly Male Rod Ends With Stud

High Performance CM10TY Inch Size Chromoly Male Rod Ends With Stud

Advantages

1.High quality
2.Competitive price
3.Various specification
4.Promotly delivery

Features

1.Ball joint housing with right or left-hand thread

2.Ball joint housing made of znic ealloy

3.With rubber dust seal
