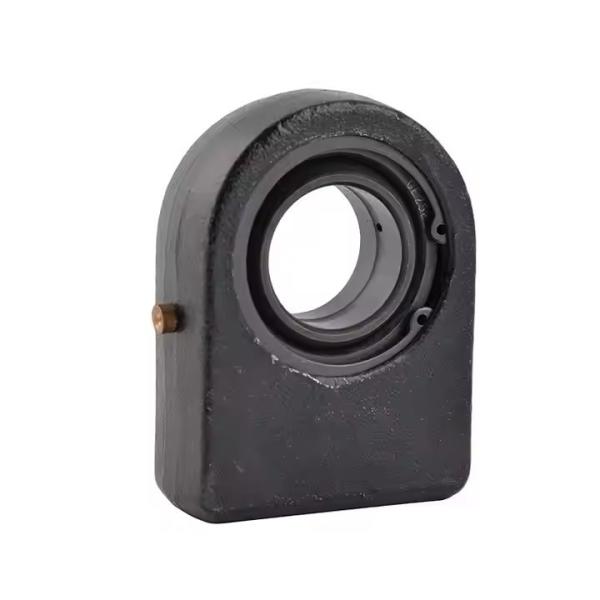

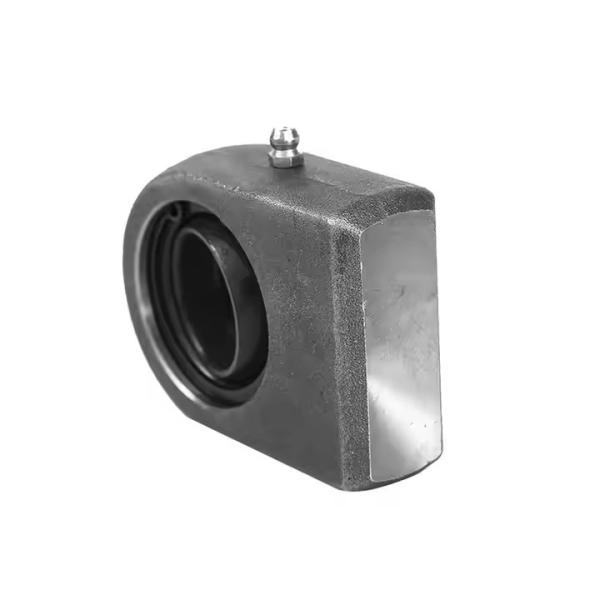

High Performance SF20ES Weldable Steel Hydraulic Cylinder Rod End Bearing For Construction Equipments
High Performance SF20ES Weldable Steel Hydraulic Cylinder Rod End Bearing For Construction Equipments
High Performance SF20ES Weldable Steel Hydraulic Cylinder Rod End Bearing For Construction Equipments
High Performance SF20ES Weldable Steel Hydraulic Cylinder Rod End Bearing For Construction Equipments
Specifications
Brand Name :
SFT
Model Number :
SF20ES
Place of Origin :
China
MOQ :
negotiable
Price :
negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
50000PCS/MONTH
Delivery Time :
20-45DAYS
Packaging Details :
carton,pallet
Type :
Hydraulic Rod Ends
Body Material :
Weldable steel, with dowel pin on shanks
Mounted bearing :
Mounted with GE..ES type of radial spherical plain bearings
Sliding contact surfaces :
Steel/Steel
Outer ring material/Finish :
Gcr15/AISI52100 steel,heat treated,sliding surface hard chrome plated
Inner ring material/Finish :
Reinforeced Nylon Polymer
Sliding contact :
Steel to Nylon
Lubrication required/Lubrication free :
Lubrication free
Description

High Performance SF20ES Weldable Steel Hydraulic Cylinder Rod End Bearing for Construction Equipments

High Performance SF20ES Weldable Steel Hydraulic Cylinder Rod End Bearing For Construction Equipments

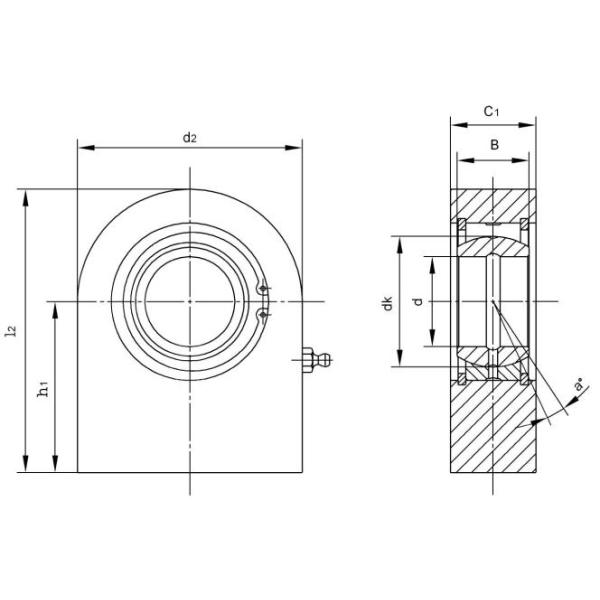

Bearing No. Dimensions(mm) a°
mis.
angle		 Load ratings
(KN)		 Weight
≈ kg
d B dk C1 d2 h1 (l2) Dynamic Static
SF20ES 20 16 29 19 50 38 63 9 30 67 0.36
SF25ES 25 20 35.5 23 55 45 72.5 7 48 69 0.53
SF30ES 30 22 40.7 28 65 51 83.5 6 62 118 0.85
SF35ES 35 25 47 30 83 61 102.5 6 79 196 1.5
SF40ES 40 28 53 35 100 69 119 7 99 305 2.42
SF45ES 45 32 60 40 110 77 132 7 127 386 3.39
SF50ES 50 35 66 40 123 88 149.5 6 156 441 4.24
SF60ES 60 44 80 50 140 100 170 6 245 570 7.10
SF70ES 70 49 92 55 164 115 197 6 313 724 10.7
SF80ES 80 55 105 60 180 141 231 6 400 804 15.1
SF90ES 90 60 115 65 226 150 263 5 488 1340 23.4
SF100ES 100 70 130 70 250 170 295 7 607 1516 33.1
SF110ES 110 70 140 80 295 185 332.5 6 654 2340 48.5
SF120ES 120 85 160 90 360 210 390 6 950 3210 79.5

High Performance SF20ES Weldable Steel Hydraulic Cylinder Rod End Bearing For Construction Equipments

High Performance SF20ES Weldable Steel Hydraulic Cylinder Rod End Bearing For Construction Equipments

Advantages

1.High quality
2.Competitive price
3.Various specification
4.Promotly delivery

Features

1.Ball joint housing with right or left-hand thread

2.Ball joint housing made of znic ealloy

3.With rubber dust seal
