Specifications
Brand Name :
SFT
Model Number :
XML10
Place of Origin :
China
MOQ :
negotiable
Price :
negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
50000PCS/MONTH
Delivery Time :
20-45DAYS
Packaging Details :
carton,pallet
Type :
Rod End
Material :
Steel Alloy
Feature :
Long Life
Keyword :
Male rod end
Description

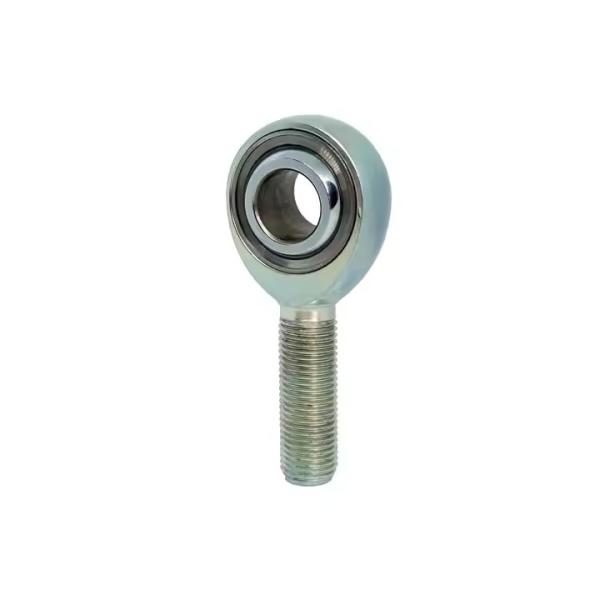

5/8"-18 Chromoly Steel Series Male Rod End XML10

5/8

For the ultimate in performance rod ends, look no further than QA1’s XM Chromoly Steel Series male rod ends. These heavy duty rod ends are commonly used on 4-link and ladder bars for their strength and durability. XM Series rod ends are completely self-sealing and self-lubricating because of their Nylon/PTFE injection molded race that keeps dirt and debris out.

BALL

· • 52100 Bearing Steel

· • Heat Treated

· • Hard Chrome Plated

· • Precision Ground

RACE

· • Nylon/PTFE

· • Self-Lubricating

· • Self-Sealing

BODY

· • Chromoly Steel

· • Heat Treated

· • Protective Coated for Corrosion Resistance

EXCLUSIVE FEATURES

· • Metal to Metal Support for Heavy Shock Loads

• Increased Cross-Sectional Thickness for Greater Tensile Strength

Part Number Name Thread Type

B

+0.0015

-0.0005

W

±0.005

T

±0.005

A

±0.005

D

±0.010

 Ball Dia.Ref.

C

+0.062 -0.031

 Thread UNF-3A Misalign Angle a° Ult. Radial Static Load Lbs. Approx. Bearing Weight
XM4 XM Endura Series Rod End Right/Left 0.25 0.375 0.281 1.562 0.75 0.5 1 1/4-28 16 5260 0.04
XM5 XM Endura Series Rod End Right/Left 0.3125 0.437 0.344 1.875 0.875 0.625 1.25 5/16-24 14 7639 0.07
XM6 XM Endura Series Rod End Right/Left 0.3125 0.437 0.344 1.938 1 0.625 1.25 3/8-24 12 10382 0.11
XM7 XM Endura Series Rod End Right/Left 0.375 0.5 0.406 2.125 1.125 0.719 1.375 7/16-20 10 14006 0.15
XM8 XM Endura Series Rod End Right/Left 0.5 0.625 0.5 2.438 1.312 0.937 1.5 1/2-20 12 16238 0.24
XM8-10 XM Endura Series Rod End Right/Left 0.5 0.625 0.5 2.625 1.5 0.937 1.625 5/8-18 10 23542 0.36
XM10 XM Endura Series Rod End Right/Left 0.625 0.75 0.562 2.625 1.5 1.125 1.625 5/8-18 16 17955 0.36
XM10-12 XM Endura Series Rod End Right/Left 0.625 0.75 0.562 2.875 1.75 1.125 1.75 3/4-16 13 31680 0.57
XM12 XM Endura Series Rod End Right/Left 0.75 0.875 0.687 2.875 1.75 1.312 1.75 3/4-16 14 28081 0.57
XM14 XM Endura Series Right/Left 0.875 0.875 0.765 3.375 2 1.375 2 7/8-14 7 45051 0.88

5/85/8

5/8
