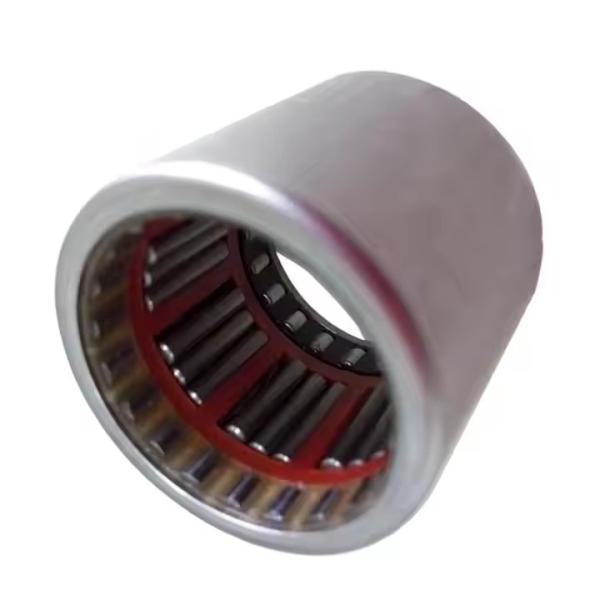

RCB061014 RCB 061014 Single Direction Clutch Drawn Cup Needle Bearing
RCB061014 RCB 061014 Single Direction Clutch Drawn Cup Needle Bearing
RCB061014 RCB 061014 Single Direction Clutch Drawn Cup Needle Bearing
RCB061014 RCB 061014 Single Direction Clutch Drawn Cup Needle Bearing
Specifications
Brand Name :
SFT
Model Number :
RCB 061014
Place of Origin :
CHINA
MOQ :
500
Price :
1-50USD/PC
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
5000PCS
Delivery Time :
45 days
Packaging Details :
neutral
Torque capacity :
4.83Nm
Inner diameter :
9.525mm
Outer diameter :
15.875mm
Type :
Needle
Needle Material :
GCr15
Thickness :
22.22mm
Description

Product Description

Features of RC Needle roller bearing

♦Three pieces needles equipped to be locking assembly function.
♦Torque increases double of the normal HF Model.
♦Allow high indexing frequencies due to their low mass .

Catalogue of RC needle roller bearing for your choice

Bearing Designation Mass Approx Designation
Fw D C Torque
g mm Nm
RC02 2 3.175 7.15 6.35 0.32
RC040708 3.5 6.35 11.112 12.7 2.03
RC040708-FS 3.5 6.35 11.112 12.7 2.03
RC061008 4.7 9.525 15.875 12.7 5.45
RC061008-FC 4.7 9.525 15.875 12.7 5.45
RC081208 9.2 12.7 19.05 12.7 8.84
RC081208-FS 9.2 12.7 19.05 12.7 8.84
RC101410 14.5 15.875 22.225 15.88 16.9
RC101410-FC 14.5 15.875 22.225 15.88 16.9
RC121610 16.2 19.05 25.4 15.88 23.3
RC121610-FS 16.2 19.05 25.4 15.88 23.3
RC162110 17 25.4 33.338 15.88 49.6
RC162110-FC 17 25.4 33.338 15.88 49.6
RCB061014 12 9.525 15.875 22.22 4.83
RCB061014-FS 12 9.525 15.875 22.22 4.83
RCB081214 16 12.7 19.05 22.22 7.9
RCB081214-FC 16 12.7 19.05 22.22 7.9
RCB101416 21.3 15.875 22.225 25.4 15.4
RCB101416-FS 21.3 15.875 22.225 25.4 15.4
RCB121616 26.5 19.05 25.4 25.4 20.9
RCB121616-FC 26.5 19.05 25.4 25.4 20.9
RCB162117 44.8 25.4 33.338 26.99 45
RCB162117-FS 44.8 25.4 33.338 26.99 45
  • High Precision and Quality: The RCB061014 bearing is designed with a precision rating of P0, ensuring high accuracy and reliability in various applications.
  • Wide Range of Industries: This bearing is suitable for various industries, including manufacturing plants, machinery repair shops, retail, printing shops, construction works, and energy & mining, catering to diverse user needs.
  • Long-lasting Torque Capacity: With a torque capacity of 4.83nm, this bearing can withstand heavy loads and provide consistent performance.
  • Quick Delivery: We offer fast delivery times, with 1 day for sample orders and 5-7 days for bulk orders, ensuring timely receipt of the product.
  • Economical and Compact Design: The bearing's compact size (9.525mm inner diameter, 15.875mm outer diameter, and 22.22mm thickness) and lightweight (12g) make it an economical choice for various applications.
  • RCB061014 RCB 061014 Single Direction Clutch Drawn Cup Needle Bearing
