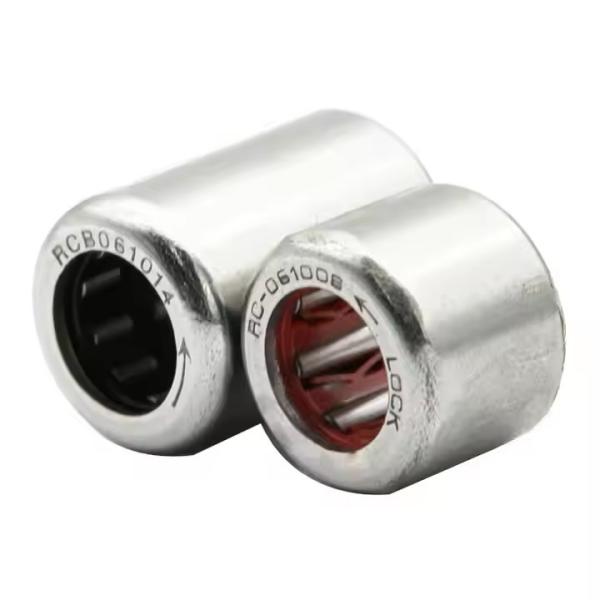

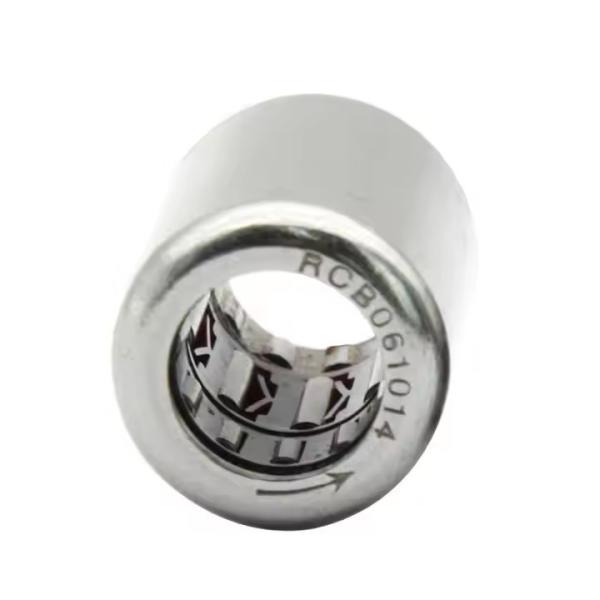

RC , RCB Series Bearing Manufacturer RCB101416 Drawn Cup One Way Needle Roller Inch Bearing
RC , RCB Series Bearing Manufacturer RCB101416 Drawn Cup One Way Needle Roller Inch Bearing
RC , RCB Series Bearing Manufacturer RCB101416 Drawn Cup One Way Needle Roller Inch Bearing
RC , RCB Series Bearing Manufacturer RCB101416 Drawn Cup One Way Needle Roller Inch Bearing
Specifications
Brand Name :
SFT
Model Number :
RCB101416
Place of Origin :
CHINA
MOQ :
500
Price :
1-50USD/PC
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
5000PCS
Delivery Time :
45 days
Packaging Details :
neutral
WEIGHT :
12 g
Inner diameter :
15.875mm
Outer diameter :
22.225 mm
Type :
Other Type
Material :
ST14/GCr15/Stainless Steel
Thickness :
25.4 mm
Description
Product Description

Data Sheet

Item RC RCB
Material Outer race: ST14, Holder: Nylon , Needle: Stainless Steel
Inner dia. 15.875 mm
Outer dia. 22.225 mm
Thickness 25.4 mm
Torque capacity 15.4 Nm
Weight 21.3 g
Package singer package or as your requirements
Delivery time 7-10 days

Different Sizes For Your Reference

Item

Weight

g

 Main Dimension

Fw

mm

D

mm

C

mm

Torque

Nm
RC02 2 3.175 7.15 6.35 1.5
RC040708 3.5 6.35 11.112 12.7 1.9
RC040708-FS 3.5 6.35 11.112 12.7 1.9
RC061008 4.7 9.525 15.875 12.7 4.83
RC061008-FC 4.7 9.525 15.875 12.7 4.83
RC081208 9.2 12.7 19.05 12.7 7.9
RC081208-FS 9.2 12.7 19.05 12.7 7.9
RC101410 14.5 15.875 22.225 15.88 15.4
RC101410-FC 14.5 15.875 22.225 15.88 15.4
RC121610 17 19.05 25.4 15.88 20.9
RC121610-FS 17 19.05 25.4 15.88 20.9
RC162110 16.2 25.4 33.338 15.88 45
RC162110-FC 16.2 25.4 33.338 15.88 45
RCB061014 12 9.525 15.875 22.22 4.83
RCB061014-FS 12 9.525 15.875 22.22 4.83
RCB081214 16 12.7 19.05 22.22 7.9
RCB081214-FC 16 12.7 19.05 22.22 7.9
RCB101416 21.3 15.875 22.225 25.4 15.4
RCB101416-FS 21.3 15.875 22.225 25.4 15.4
RCB121616 26.5 19.05 25.4 25.4 20.9
RCB121616-FC 26.5 19.05 25.4 25.4 20.9
RCB162117 44.8 25.4 33.338 26.99 45
RCB162117-FS 44.8 25.4 33.338 26.99

45
  • Features
    • High Load Capacity: Due to the use of needle rollers, it can bear relatively large radial loads, which makes it suitable for applications where space is limited but high load capacity is required.
    • Low Friction: The needle roller design reduces friction, enabling the bearing to operate more smoothly and efficiently, reducing energy consumption and wear.
    • One-way Function: It has a one-way clutch function, allowing rotation in one direction and locking in the opposite direction, providing convenience for the design of some transmission mechanisms.
    • Compact Structure: The drawn cup design makes the bearing have a relatively small size and light weight, which is convenient for installation and use in various precision machinery.
  • Applications
    • Automobile Industry: It can be used in automotive transmission systems, such as in differentials, gearboxes, etc., to transmit power and support rotating shafts.
    • Motorcycles: Applied to motorcycle engines, transmission chains and other parts to ensure the smooth operation of the transmission system.
    • Electrical Equipment: Such as in electric motors, generators and other equipment, it helps to support the rotor and reduce friction, improving the efficiency and service life of the equipment.
    • Office Equipment: Used in printers, copiers and other office equipment to support the rotation of rollers and shafts, ensuring the normal operation of the equipment.
