High Precision CM Series CM5 Threaded Inch Rod Ends for 4x4 Off-Road Vehicle
High Precision CM Series CM5 Threaded Inch Rod Ends for 4x4 Off-Road Vehicle
High Precision CM Series CM5 Threaded Inch Rod Ends for 4x4 Off-Road Vehicle
High Precision CM Series CM5 Threaded Inch Rod Ends for 4x4 Off-Road Vehicle
Specifications
Brand Name :
SFT
Model Number :
CM5
Place of Origin :
China
MOQ :
negotiable
Price :
negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
50000PCS/MONTH
Delivery Time :
20-45DAYS
Packaging Details :
carton,pallet
Type :
Inch size Rod ends
Ball Material :
Gcr15 steel, heat treated
Body Material :
Carbon steel, zinc plated, chromate treated
Sliding contact surfaces :
Steel /steel
Feature :
Low Noise. Long Life .High Precision
Description

High Precision CM Series CM5 Threaded Inch Rod Ends for 4x4 Off-Road Vehicle

High Precision CM Series CM5 Threaded Inch Rod Ends for 4x4 Off-Road Vehicle

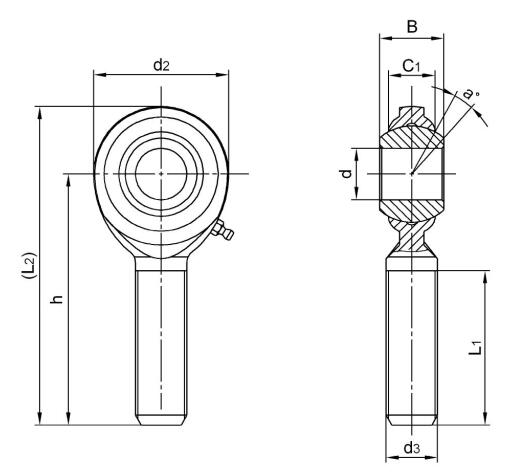

Bearing No. Dimensions(mm/inches) Ball
dia		 a°
mis.
angle		 Load
ratings
(KN)		 weight
≈kg
d+0.038
-0 012		 B C1 d2 d3
UNF-2A		 h L1 (L2)
CM3 4.826 7.92 5.94 15.88 10-32 31.75 19.05 39.69 11.112 13 4.4 0.136
CM3 0.1900 0.312 0.234 0.625 10-32 1.250 0.750 1.562 0.437 13 4.4 0.136
CM4 6.35 9.53 6.35 19.05 1/4-28 39.67 25.4 49.2 12.7 18 8.2 0.018
CM4 0.2500 0.375 0.250 0.750 1/4-28 1.562 1.000 1.937 0.500 18 8.2 0.018
CM5 7.938 11.10 7.92 22.23 5/16-24 47.63 31.75 58.75 15.875 14 12.7 0.317
CM5 0.3125 0.437 0.312 0.875 5/16-24 1.875 1.250 2.312 0.625 14 12.7 0.317
CM6 9.525 12.7 9.11 25.4 3/8-24 49.22 31.75 61.92 18.263 14 17 0.498
CM6 0.3750 0.500 0.359 1.000 3/8-24 1.938 1.250 2.687 0.719 14 17 0.498
CM7 11.11 14.27 10.31 28.58 7/16-20 53.98 34.93 68.27 20.625 13 21 0.068
CM7 0.4375 0.562 0.406 1.125 7/16-20 2.125 1.375 2.678 0.812 13 21 0.068
CM8 12.7 15.88 11.5 33.32 1/2-20 61.92 38.1 78.58 23.8 12 27.5 0.108
CM8 0.5000 0.625 0.453 1.312 1/2-20 2.438 1.500 3.093 0.937 12 27.5 0.108
CM10 15.875 19.05 12.29 38.1 5/8-18 66.68 41.28 85.73 28.575 16 29.9 0.163
CM10 0.6250 0.750 0.484 1.500 5/8-18 2.625 1.625 3.375 1.125 16 29.9 0.163
CM12 19.05 22.23 15.06 44.45 3/4-16 73.02 44.45 95.25 33.338 14 44.2 0.258
CM12 0.7500 0.875 0.593 1.750 3/4-16 2.875 1.750 3.750 1.312 14 44.2 0.258
CM14 22.225 22.23 15.06 50.8 7/8-14 85.73 47.63 111.1 33.338 14 74.7 0.408
CM14 0.8750 0.875 0.593 2.000 7/8-14 3.375 1.875 4.375 1.312 14 74.7 0.408
CM16 25.4 34.93 25.4 69.85 5/4-12 104.78 53.98 139.7 47.625 14 129.1 0.964
CM16 1.0000 1.375 1.000 2.750 5/4-12 4.125 2.125 5.500 1.875 14 129.1 0.964

High Precision CM Series CM5 Threaded Inch Rod Ends for 4x4 Off-Road Vehicle

High Precision CM Series CM5 Threaded Inch Rod Ends for 4x4 Off-Road Vehicle

Advantages

1.High quality
2.Competitive price
3.Various specification
4.Promotly delivery

Features

1.Ball joint housing with right or left-hand thread

2.Ball joint housing made of znic ealloy

3.With rubber dust seal
