UK 25 ZZ Freewheels One Way Sprag Bearing Clutch 25X52X15 CSK25
UK 25 ZZ Freewheels One Way Sprag Bearing Clutch 25X52X15 CSK25
UK 25 ZZ Freewheels One Way Sprag Bearing Clutch 25X52X15 CSK25
UK 25 ZZ Freewheels One Way Sprag Bearing Clutch 25X52X15 CSK25
Specifications
Brand Name :
SFT
Model Number :
UK 25 ZZ
Place of Origin :
China
MOQ :
negotiable
Price :
negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
50000PCS/MONTH
Delivery Time :
20-45DAYS
Packaging Details :
carton,pallet
Surface Hardness :
HRC60-62
Torque :
85N
Applicable Industries :
Manufacturing Plant, Machinery Repair Shops, Printing Shops, Construction works , Energy & Mining, Other
Width :
15mm
WEIGHT :
0.14kgs
Seals Type :
ZZ 2RS OPEN
Description

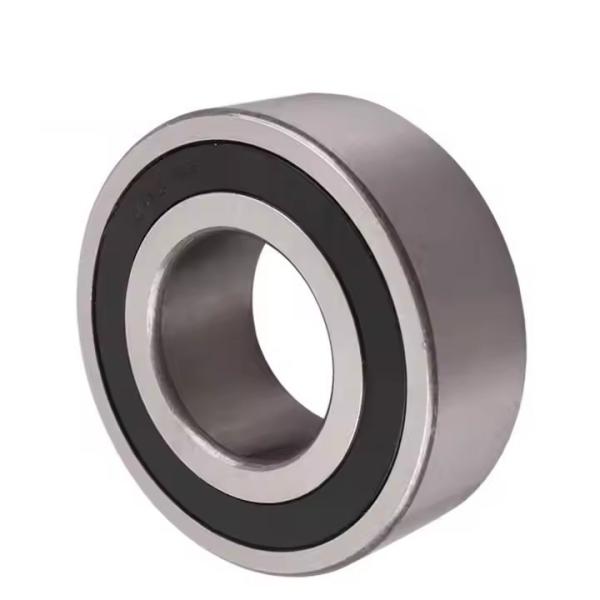

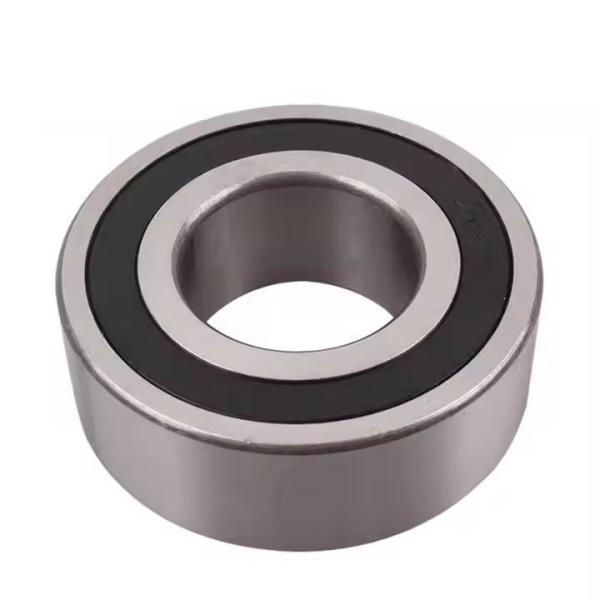

UK 25 ZZ Freewheels One Way Sprag Bearing Clutch 25X52X15

Product Description
Product Description UK Series is sprag type freewheel integrated into 62 series ball bearing

Product Type

 UK...ZZ : Basic type
UK...2RS: with 2RS lip seals
UKC..ZZ: With inner keyway
UKCC...ZZ: with inner and outer keyway
UKC...2RS: with 2RS lip seals and inner keyway
UKCC...2RS: with 2RS lip seals, both inner and outer keyway.

Package

 Each item is packed in small white box---packed in 19x14.5x7.5cm carton box --- then in 29x48x22cm box
Delivery time 1 day for sample, big quantity 5-7 days

SPECIFICATION FOR CSK40
Model UK 25 ZZ
Material GCr15
Inner diameter 25mm
Outer diameter 52mm
Thickness 15mm
Torque capacity 85Nm
Weight 0.14kg
Structure Sprag type
Application Textile machine, fans, ventilators, printing machine
Payment terms TT. L/C, D/A,D/P,Western Union

Catalogue of sprag bearing clutch for your choice

Tips: All the UK...ZZversions are equippede with " formchromed" sprags. This process increases several times the overrunning life time.

DATA SHEET FOR UK BEARING
Type Size Bearing series Bearing loads Weight Drag torque
dynamic static
UK...ZZ d TKN1) N max D L C C0 TR
[mm] [Nm] [min-1] [mm] [mm] [kN] [kN] [kg] [Ncm]
8* – 2.5 15000 22 9 3.28 0.86 0.015 0.5
12 6201 9.3 10000 32 10 6.1 2.77 0.04 0.7
15 6202 17 8400 35 11 7.4 3.42 0.06 0.9
17 6203 30 7350 40 12 7.9 3.8 0.07 1.1
20 6204 50 6000 47 14 9.4 4.46 0.11 1.3
25 6205 85 5200 52 15 10.7 5.46 0.14 2
30 6206 138 4200 62 16 11.7 6.45 0.21 4.4
35 6207 175 3600 72 17 12.6 7.28 0.3 5.8
40 – 325 3000 80 22 15.54 12.25 0.5 7
UK..2RS 8** 2.5 15000 22 9 3.28 0.86 0.015 0.8
12 – 9.3 10000 32 14 6.1 2.77 0.05 3
15 17 8400 35 16 7.4 3.42 0.07 4
17 30 7350 40 17 7.9 3.8 0.09 5.6
20 50 6000 47 19 9.4 4.46 0.145 6
25 85 5200 52 20 10.7 5.46 0.175 6
30 138 4200 62 21 11.7 6.45 0.27 7.5
35 175 3600 72 22 12.6 7.28 0.4 8.2
40 – 325 3000 80 27 15.54 12.25 0.6 10
