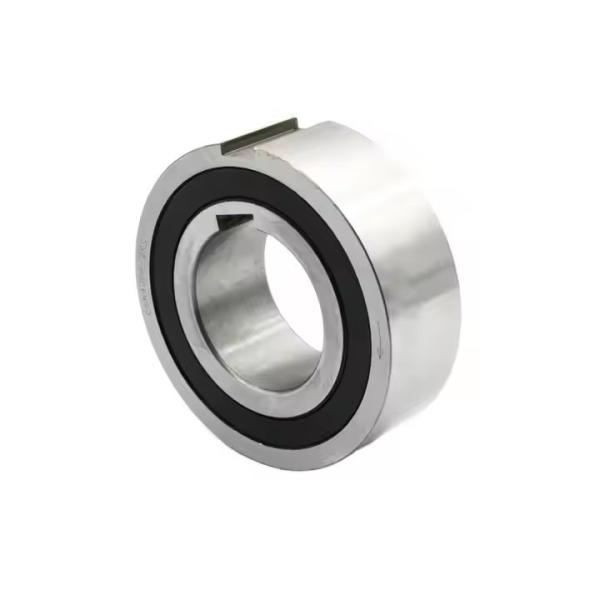

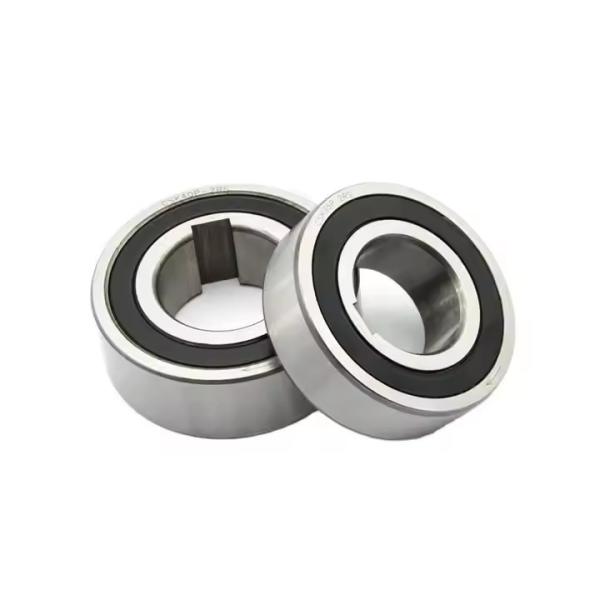

CSK25PP Sprag Type Bearing CSK25 PP 2RS One Way Overrunning Clutch for Electric Scooter
CSK25PP Sprag Type Bearing CSK25 PP 2RS One Way Overrunning Clutch for Electric Scooter
CSK25PP Sprag Type Bearing CSK25 PP 2RS One Way Overrunning Clutch for Electric Scooter
CSK25PP Sprag Type Bearing CSK25 PP 2RS One Way Overrunning Clutch for Electric Scooter
Specifications
Brand Name :
SFT
Model Number :
CSK25 PP-2RS
Place of Origin :
China
MOQ :
negotiable
Price :
negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
50000PCS/MONTH
Delivery Time :
20-45DAYS
Packaging Details :
carton,pallet
Torque (Nm) :
85
Height (mm) :
20
Applicable Industries :
Manufacturing Plant, Machinery Repair Shops, Printing Shops, Construction works , Energy & Mining, Other
ID :
25 mm
WEIGHT :
0.175 kg
Seals Type :
seal
Description

Data Sheet

Item CSK25PP-2RS
Material GCr15
Inner dia. 25 mm
Outer dia. 52 mm
Width 20 mm
Weight 0.175 kg
Torque 85 Nm
Drag torque 6 Ncm
Port Shanghai:Ningbo
Delivery time 15days


CAN BE USED AS:

1.OVERRUNNING CLUTCH

2.INDEXING CLUTCH

3.BACKSTOP CLUTCH

INTRODUCTION:

Types CSK..P and CSK..PP are sprag type freewheels integrated into 62.. series ball bearings (except size 40).They are bearing supported, delivered grease lubricated and protected against dust of more than 0,3 mm.

The use of additional “nylos” type seals is recommen-ded especially when the working temperature exceeds 50°C. Oil bath lubrication is also possible.

In addition to the basic CSK model, type CSK..P features a keyway on the inner race. For this reason it can be keyed to a shaft to k6 tolerance. The outer race must still be pressed into a rigid housing to N6 tolerance.

CSK..PP features a keyway on both the inner and outer race. The recommended mounting tolerances are h6 on the shaft and H6 in a rigid housing. Please contact us when either the ambient or the operating temperature is not within the range +5°C to +60°C.

Different Sizes For Your Reference

Type Size Bearing series Bearing loads Weight Drag torque
dynamic static
CSK..P d TKN1) nmax D L b t C C0 TR
[mm] [Nm] [min-1] [mm] [mm] [mm] [mm] [kN] [kN] [kg] [Ncm]
12 6201 9.3 10000 32 10 6.1 2.77 0.04 0.7
15 6202 17 8400 35 11 7.4 3.42 0.06 0.9
17 6203 30 7350 40 12 7.9 3.8 0.07 1.1
20 6204 50 6000 47 14 9.4 4.46 0.11 1.3
25 6205 85 5200 52 15 10.7 5.46 0.14 2
30 6206 138 4200 62 16 11.7 6.45 0.21 4.4
35 6207 175 3600 72 17 12.6 7.28 0.3 5.8
40 – 325 3000 80 22 15.54 12.25 0.5 7
CSK..PP 15 6202 17 8400 35 11 2 0.6 7.4 3.42 0.06 0.9
17 6203 30 7350 40 12 2 1 7.9 3.8 0.07 1.1
20 6204 50 6000 47 14 3 1.5 9.4 4.46 0.11 1.3
25 6205 85 5200 52 15 6 2 10.7 5.46 0.14 2
30 6206 138 4200 62 16 6 2 11.7 6.45 0.21 4.4
35 6207 175 3600 72 17 8 2.5 12.6 7.28 0.3 5.8
40 – 325 3000 80 22 10 3 15.54 12.25 0.5 7
CSK..P-2RS 12 – 9.3 10000 32 14 6.1 2.77 0.05 3
15 – 17 8400 35 16 7.4 3.42 0.07 4
17 – 30 7350 40 17 7.9 3.8 0.09 5.6
20 – 50 6000 47 19 9.4 4.46 0.145 6
25 – 85 5200 52 20 10.7 5.46 0.175 6
30 – 138 4200 62 21 11.7 6.45 0.27 7.5
35 – 175 3600 72 22 12.6 7.28 0.4 8.2
40 – 325 3000 80 27 15.54 12.25 0.6 10

MOUNTING
