Specifications
Brand Name :
SHACMAN
Model Number :
H3000
Certification :
ISO 9001/CCC
Place of Origin :
Shaanxi,Xian
MOQ :
1
Payment Terms :
T/T, L/C
Supply Ability :
5000 units/month
Delivery Time :
45 working days
Price :
Negotiable
Packaging Details :
Nude pack, with wax before shipment.
Modle :
SX3185MN381
Engine :
WP10.310E53
Transmission :
10JSD180+QH50
Axle :
7.5T/13T Double-stage,speed ratio-5.92
Wheel base :
3800 mm
Tire :
11.00R20
Fuel tank :
300L
Clutch :
φ430 Diaphragm spring clutch
Air inlet :
Ordinary air filter
Chassis :
850×300(8+7)
Suspension :
Multiple front and rear springs
Cabin :
Medium-length flat top
Color :
yellow;customizable
Description

SHACMAN H3000 4X2 DUMP TRUCK RED

Detailed Product Description

Model: SX3185MN381

Drive type: 4x2

Weight: Gross Vehicle Weight≤25

Engine Brand: WEICHAI

Engine Model: WP10.310E53

Engine Power/(kw/HP): 316kw / 310Hp

Gear box Brand: FAST

Gear box Model: 10JSD180+QH50

Dump Truck Parameters

Model SX3185MN381
Drive type 4x2
Weight Gross Vehicle Weight ≤50
Dimensions Wheelbase/(mm) 3775+1400
Performance Maximum speed/(km/h) 40~55/75
Ground clearance >314
Engine Brand WEICHAI
Model WP10.310E53
Power/(kw/HP) 250kw / 310Hp
Maximum torque / (N.M)/rpm 1240 N·M
Displacement/(L) 9.726 L
Emission standard Euro
Gear box Brand FAST
Model 12JSD200T-B+QH50
Clutch Type φ430 Diaphragm spring clutch
Cooling Type Domestic heat sink
Air inlet Type Ordinary air filter
Brakes Type Drum brake
Service brake Double circuit air brake
Park brake Rear wheel spring brake
Auxiliary brake WEVB engine exhaust brake
Steering Type ZF8098 technology, circulating ball steering machine
Chassis Type Parallel trapezoidal frame with variable section
Dimensions/(mm) 850×300(8+7)
Suspension Front Multi-layered leaf springs with 4 Main springs+4 U Bolts
Rear Multi-layered leaf springs with 4 Main springs+4 U Bolts
Axles Brand HANDE
Front axle 7.5T front axle MAN technology
Rear axle 13T MAN Double Reduction Drive axle with inter helix differential and differential lock, bridge speed ratio: 5.262
Tires Type 12.00R20
Fuel tank Tank capacity/(L) 300L Aluminum tank
Electrics Type 24V
Battery 165Ah Maintenance-free battery
Cab Type SHACMAN H3000 Medium-length flat cab
Equipment Hydraulic main seat, four-point hydraulic suspension cab, ordinary rearview mirror, electronically controlled automatic constant temperature air conditioner, electric window shaker, 165Ah maintenance-free Battery, SHACMAN logo, full English logo.
Features
  • The SHACMAN H3000 4x2 310HP Euro V Power Tipper Truck presents an outstanding combination of performance, versatility, and safety, making it a game-changer in the heavy haulage industry. Its cutting-edge features and commitment to environmental responsibility position it as a leading choice for businesses aiming to excel in heavy-duty transportation.
  • The heart of the SX3185MN381 lies in its formidable 310HP EuroⅤ powerplant. This high-performance engine delivers exceptional torque and acceleration, ensuring superior hauling capabilities even in the most challenging terrains and adverse conditions. With a focus on fuel efficiency and reduced emissions, the truck strikes a balance between power and environmental responsibility.

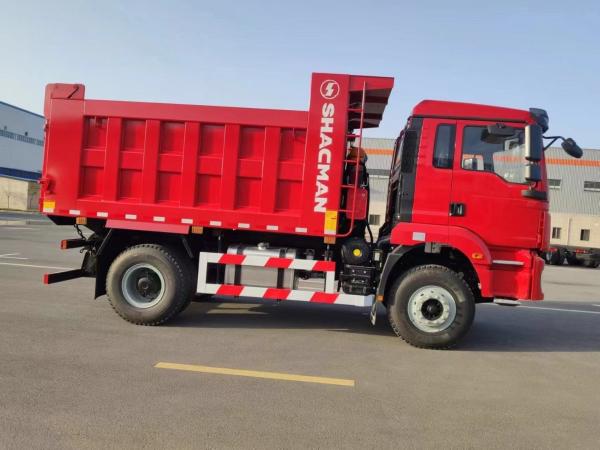

Detailed Image

EuroV SHACMAN H3000 Dump Truck 4x2 Six-Wheeler Dump Truck 310Hp Engine WEICHAI

FAQ
1. Who are we?
We are based in Shaanxi, China, start from 2015, sell to Africa (70.00%), Southeast Asia (10.00%), Central America (10.00%), South America (4.00%), Mid East (2.00%), Eastern Asia (2.00%), South Asia (2.00%). There are total about 11-50 people in our office.


2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment.


3. What can you buy from us?
Dump truck, track truck, lorry truck, Van truck, Mixer truck.


4. What services can we provide?
Accepted Delivery Terms: FOB, CFR, CIF, EXW, CIP, DDU;
Accepted Payment Currency: USD, EUR, CNY;
Accepted Payment Type: T/T, L/C, D/P D/A
Language Spoken: English, French
