H3000 16m³ Compression Garbage Truck SHACMAN Waste Collection Truck 300hp 6x4
H3000 16m³ Compression Garbage Truck SHACMAN Waste Collection Truck 300hp 6x4
H3000 16m³ Compression Garbage Truck SHACMAN Waste Collection Truck 300hp 6x4
H3000 16m³ Compression Garbage Truck SHACMAN Waste Collection Truck 300hp 6x4
Specifications
Brand Name :
SHACMAN
Model Number :
H3000
Certification :
ISO 9001/CCC
Place of Origin :
Shaanxi, Xian
MOQ :
1UNIT
Payment Terms :
T/T, L/C
Supply Ability :
5000UNITS
Delivery Time :
45 working days
Price :
Negotiation
Packaging Details :
Nude pack, with wax before shipment.
Modle :
SX5255ZYSMN384
Engine :
WP10.300E22
Transmission :
RTD-11509C+ QH50
Axle :
7.5T/2*13 double stage axle， Axle speed-4.769
Wheel base :
3775+1400mm
Tire :
12.00R20
Fuel tank :
300L
Clutch :
φ430 Diaphragm spring clutch
Air inlet :
Ordinary air filter
Chassis :
850×300(8+5)
Suspension :
Front /rear Multi-layer plate spring
Cabin :
H3000 standard cab
Color :
Neon Red/Green Mountain Green/Star and Moon Blue/Aurora White/Klein Blue/Brandy
Description

SHACMAN H3000 Garbage Truck 4x2 300Hp Euro II

Detailed Product Description
Model: SX5255ZYSMN384
Drive type: 4x2
Engine Brand: WEICHAI
Engine Model: WP10.300E22
Engine Power/(kw/HP): 220kw / 300Hp
Gear box Brand: FAST
Gear box Model: RTD-11509C+ QH50

Compression Garbage Truck Parameters

Model SX5255ZYSMN384
Drive type 6x4
Weight Gross Vehicle Weight ≤50
Dimensions Wheelbase/(mm) 3775+1400
Performance Maximum speed/(km/h) 45～60/80
Ground clearance >314
Engine Brand WEICHAI
Model WP10.300E22
Power/(kw/HP) 220w / 300Hp
Maximum torque / (N.M)/rpm 1240 N·M
Displacement/(L) 9.762 L
Emission standard Euro/ II
Gear box Brand FAST
Model RTD-11509C+ QH50
Clutch Type φ430 Diaphragm spring clutch
Cooling Type Domestic heat sink
Air inlet Type Ordinary air filter
Brakes Type Drum brake
Service brake Double circuit air brake
Park brake Rear wheel spring brake
Auxiliary brake WEVB engine exhaust brake
Steering Type ZF8098 technology, circulating ball steering machine
Chassis Type Parallel trapezoidal frame with variable section
Dimensions/(mm) 850×300(8+5)
Suspension Front Multi-layered leaf springs
Rear Multi-layered leaf springs
Axles Brand HANDE
Front axle 7.5T MAN
Rear axle 13T MAN Double Reduction Drive axle with inter helix differential and differential lock, bridge speed ratio: 4.769
Tires Type 12.00R20
Fuel tank Tank capacity/(L) 300L Aluminum
Electrics Type 24V
Battery 165Ah Maintenance-free battery
Cab Type SHACMAN H3000 standard cab
Equipment Hydraulic main seat, four-point hydraulic suspension cab, with sunshade, electronically controlled automatic constant temperature air conditioner, electric window shaker, 165Ah maintenance-free battery, SHACMAN Logo, full English logo.

Features

  • Chassis: The 6x4 is configured in a two-axle setting, with power sent to the rear axle.This configuration is suitable for both urban and suburban waste collection where off-road capability is not a major consideration.
  • Garbage compactor: The main feature of this vehicle is the installation of an integrated garbage compactor on the chassis.The waste compacting machine is designed to effectively compress and manage waste, optimize loading capacity, and reduce the number of waste disposal.

Detailed Image

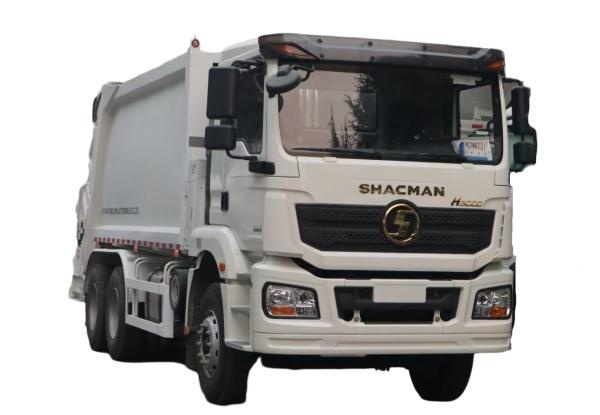

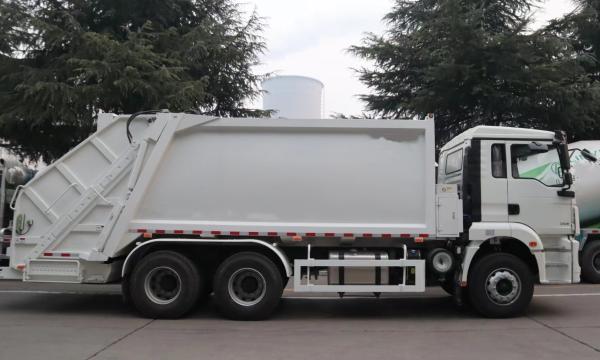

H3000 16m³ Compression Garbage Truck SHACMAN Waste Collection Truck 300hp 6x4

FAQ
1. Who are we?
We are based in Shaanxi, China, start from 2015, sell to Africa (70.00%), Southeast Asia (10.00%), Central America (10.00%), South America (4.00%), Mid East (2.00%), Eastern Asia (2.00%), South Asia (2.00%). There are total about 11-50 people in our office.

2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment.

3. What can you buy from us?
Dump truck, track truck, lorry truck, Van truck, Mixer truck.

4. What services can we provide?
Accepted Delivery Terms: FOB, CFR, CIF, EXW, CIP, DDU；
Accepted Payment Currency: USD, EUR, CNY;
Accepted Payment Type: T/T, L/C, D/P D/A
Language Spoken: English, French
