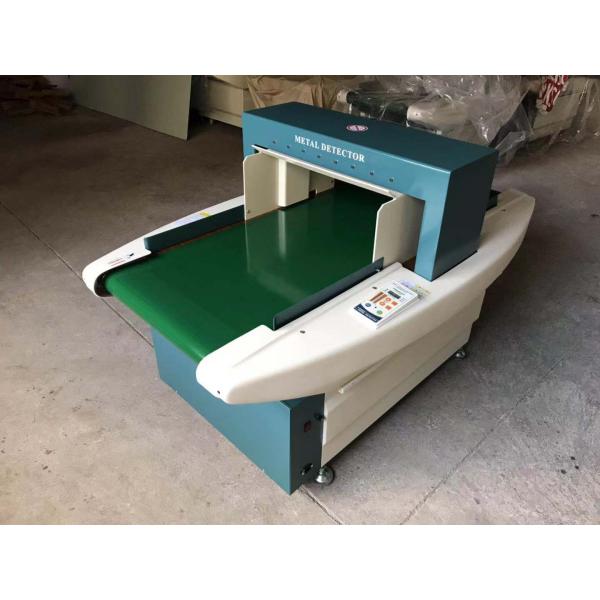

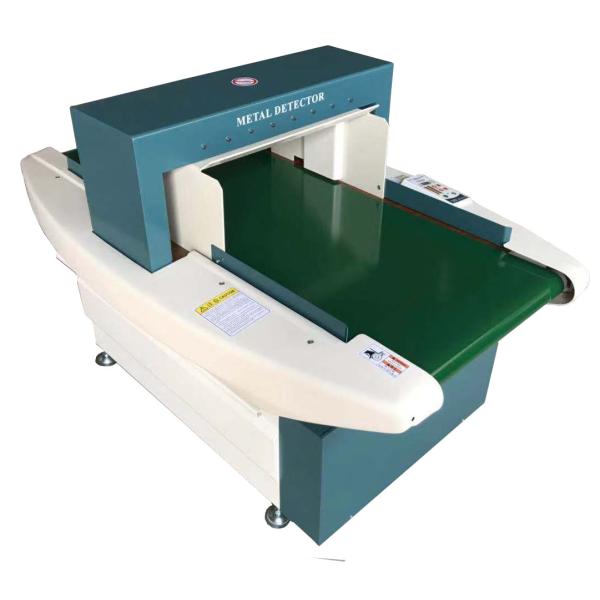

needle detector auto conveyor model for cloths,garment,shoes,textile inspection
needle detector auto conveyor model for cloths,garment,shoes,textile inspection
needle detector auto conveyor model for cloths,garment,shoes,textile inspection
needle detector auto conveyor model for cloths,garment,shoes,textile inspection
needle detector auto conveyor model for cloths,garment,shoes,textile inspection
needle detector auto conveyor model for cloths,garment,shoes,textile inspection
needle detector auto conveyor model for cloths,garment,shoes,textile inspection
needle detector auto conveyor model for cloths,garment,shoes,textile inspection
needle detector auto conveyor model for cloths,garment,shoes,textile inspection
needle detector auto conveyor model for cloths,garment,shoes,textile inspection
Specifications
Model Number :
JC-600
Certification :
CE
Place of Origin :
Shanghai,China
MOQ :
1pc
Price :
100
Payment Terms :
by T/T
Delivery Time :
15-20 working days
Packaging Details :
standard export wooden case
Supply Ability :
100000pcs
Model :
High accuracy model
Name :
needle detector,metal detector
Detection height :
from 80mm-200mm
Detection width :
600mm
HS code :
85437091
alarm :
pilot lamp flash with alarm and conveyor stop
Auto rejection :
By customer optional
Description

needle detector, metal detector, needle detectors, industrial metal detector, automatic metal detector, metal detector machiner, metal detector equipment, tunnel metal detector,belt metal detector,garment needle detector,garment metal detector,apparel needle detector,sock metal detector,sock needle detector,shoes metal detector,shoes needle detector,toy metal detector,toy needle detector,textile metal detector,textile needle detector,cloth metal detector,cloth needle detector,needle detection machine,metal detection machine,needle check,metal check,check needle,check metal,find metal,find needle,digital metal detector, electronic metal detector,broken needle

auto conveyor needle detector BT-JC600 for cloth,garment,shoes,textile product inspection

Automatic conveyor type needle detector machine JC-600needle detector auto conveyor model for cloths,garment,shoes,textile inspection

【Main features】

1. ABS plastic shell.

2. Cycled,9 pairs of sensor, excellent anti-disturbance performance.

3. Based on LED bar displayed control panel.

4. Smart auto counter. Count the alarm and pass numbers automatically.

5. Hi accuracy detection locating technology, LED indication for alarm location remind.

6. Alarm functions can be divided into three types, buzzer sound, lamplight flash and conveyor stop or belt return.

7. Optional conveying mode after alarm ;Optional automatical restart.

8. Reliability mechanical frame design, Hi stable during detection.

9. Designed for universal AC power supply, switch power supply.

【Range of Application】

It can be used to detect underwear, shirts, knitted sweaters, garments, shoes, socks, toys, carton, chemical, rubber, plastic, aluminum foil and others small packaged products.

【SPECIFICATIONS】

Model: JC-600
Detection tunnel width: 600mm
Detection tunnel height: 80mm/100mm/120mm/150mm/200mm/250mm/300mm/
Conveyor belt width : 570mm
Max capacity: 20kgs
Motor output : 200W
Speed(m/min): 25m/m
Display/Operation Panel LED display with button design
Display/Operation Language English/Chinese
Alarm method: Alarm and lamp flash to stop transfer
Conveyor belt: Flat PVC belt
Power: AC110V/220V 50-60hz
Net Weight:200-250kgs 250kgs

needle detector auto conveyor model for cloths,garment,shoes,textile inspection

【Series Standard】

Model Tunnel width Tunnel height Detection sensitivity
JC-600/80 600MM 80MM Fe, Steel ball≧0.8mm
JC-600/100 600MM 100MM Fe, Steel ball≧0.8mm
JC-600/150 600MM 150MM Fe, Steel ball≧1.0mm
JC-600/200 600MM 200MM Fe, Steel ball≧1.2mm
JC-600/200 600MM 300MM Fe, Steel ball≧2.0mm

More info,pls visit http://www.bjtoptech.com

needle detector,metal detector,garment needle detector,industrial metal detector,textile metal detector,metal detector machine
