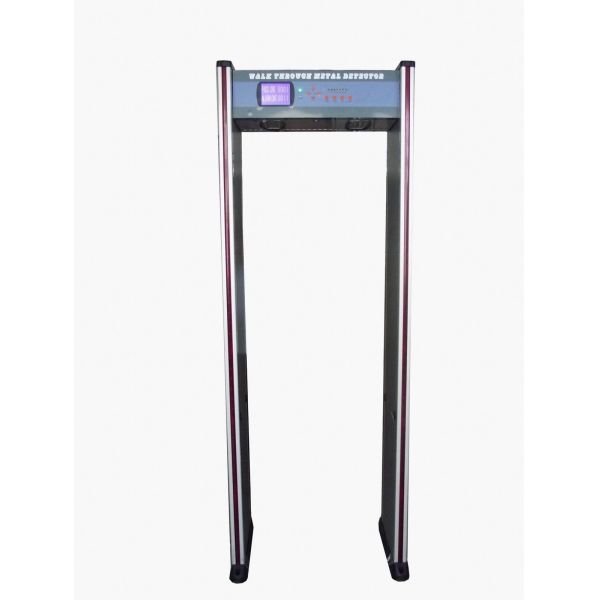

Walk-through Metal Detector，Door frame metal detector, JLS-8018(18 Zones&LCD display)
Walk-through Metal Detector，Door frame metal detector, JLS-8018(18 Zones&LCD display)
Walk-through Metal Detector，Door frame metal detector, JLS-8018(18 Zones&LCD display)
Walk-through Metal Detector，Door frame metal detector, JLS-8018(18 Zones&LCD display)
Walk-through Metal Detector，Door frame metal detector, JLS-8018(18 Zones&LCD display)
Walk-through Metal Detector，Door frame metal detector, JLS-8018(18 Zones&LCD display)
Specifications
Place of Origin :
China
Model Number :
JS-8018
MOQ :
1 pcs
Price :
USD1000
Packaging Details :
wooden case
Delivery Time :
15 working days
Payment Terms :
TT
Certification :
CE
Supply Ability :
10000pcs
model :
walk through model
Name :
metal detector
Detection zone :
18 detection zones
Panel display :
LCD display
LED alarm loation gatepost :
4 sets LED gatepost display
Description

metal detector,metal detectors,metal detection machine,walk through metal detector,metal detector door,walk through metal detector door,walk through detector door,door metal detector,metal detection door,metal detector gate,metal detection gate,handle hold metal detector,handle metal detector,portable metal detector,electronic metal detector,security metal detector door,detector door

JLS-8008

Walk-through Metal Detector，Door frame metal detector, JLS-8018(18 Zones&LCD display)

JLS-8018 (18 Zones/LCD display/2 LED alarm bar)

1.big LCD screen
2.Watertproof & fireproof
3.18zone Metal Detector
4.a Leading manufacture
Features
1. Easy to operate with the big LCD screen, Chinese & English operate language. Infrared remote controller adopted
2. Made of high quality alloy and PVC synthetic material, Watertightness and fireproofing.
3. 18(Eighteen) detecting zones which overlapped each other area as tall as examinee combine with alarm-LED on every zone. Show the position of target metal directly.
4. Four emitters match with receivers opposite, eliminate detecting blind spots.
5. Sensitivities can be adjusted: Each zone's sensitivity can be adjusted from 0 to 255. You can select the right sensitivity you want. For example you can change the sensitivity to avoid inferences such as the coins, keys, buckle, etc.
6. The function of statistics: The number of passed examinees and the alarm times can be count.
7. Parallel operation: The gate can not only work itself, but also work together with the same model (when parallel operate, the distance between each unit must more than 40 cm), so that it can meet the demand of big visitor flow rate.
8. Harmless to people: The gate is harmless to people with cardiac pacemakers, pregnant women, tapes, videotapes, etc.
9. Easy Assembly: Integrated design, you can assemble or disassemble it in 20 minutes with the operation instruction.
10. Protected by password: Only the authorized person can operate it.
11. Location signal display light: Display the responses of each zone apart (independent of alarm lights). Adjust the sensitivity of each zone according to the responses, and get the best sensitivities.
Walk-through Metal Detector，Door frame metal detector, JLS-8018(18 Zones&LCD display)
Technical Parameters
Power Supply 220V/AC
Power <15W
External Dimension 2200mm(H)*820mm(W)*550mm(D)
Passageway Dimension 2000mm(H)*700mm(W)*550mm(D)
Work environment -20°C- +45°C
Standard GB15210-2003<WALK THROUGH METAL DETECTOR>
Application
• Airports
• Correctional Facilities
• Public Buildings
• Private Buildings
• Schools
• Special Events
• Loss Prevention
• Nuclear Facilities
• Transportation Terminals
• Courthouses
• Corporate Security
• Historical Landmarks
Walk-through Metal Detector，Door frame metal detector, JLS-8018(18 Zones&LCD display)
Technical Parameters
Power Supply 220V/AC
Power <30V
External Dimension 2200mm(H)*820mm(W)*550mm(D)
Passageway Dimension 2000mm(H)*700mm(W)*550mm(D)
Work environment -20°C- +45°C
Standard GB15210-2003<WALK THROUGH METAL DETECTOR>

Standard configuration
Main Case ONE Unit
Left Probe ONE Unit
Right Probe ONE Unit
Power Line ONE Unit
Screws Eight Unit
Instruction

ONE Unit

(Including one Certificate of Quality & Guarantee Repair List)
Optional Accessories
Slipping groove: Let the personal belongings which may be interference (such as keys, watches, cell, etc) slip through.
Remote Control: Control the gate within 10 meters, when paralleled the distance should be short.
Storage Battery: Maintain the gate working for about 4 hours after charged.
