Single Core / 3 Core Armoured Electrical Cable
Single Core / 3 Core Armoured Electrical Cable
Single Core / 3 Core Armoured Electrical Cable
Single Core / 3 Core Armoured Electrical Cable
Single Core / 3 Core Armoured Electrical Cable
Single Core / 3 Core Armoured Electrical Cable
Single Core / 3 Core Armoured Electrical Cable
Single Core / 3 Core Armoured Electrical Cable
Specifications
Brand Name :
SHANCABLE
Model Number :
YJLV72
Certification :
ISO,CE,IEC,TUV,KEMA
Place of Origin :
Shanghai, China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
100KM/Week
Delivery Time :
10 Days
Packaging Details :
Wooden Drum
Product Name :
Armored /Armored Power Cable
Nominal Area of Conductor :
1.5mm2 to 1000 mm2
Test Voltage :
12.5 kV/ 5min.
Standard :
IEC 60502-2 IEC 60228
Application :
power distribution lines, laying in shaft, water underground
Rated Voltage :
3.6/6KV,
Corporation :
shenghua group
Brand :
Sh Cable
Description

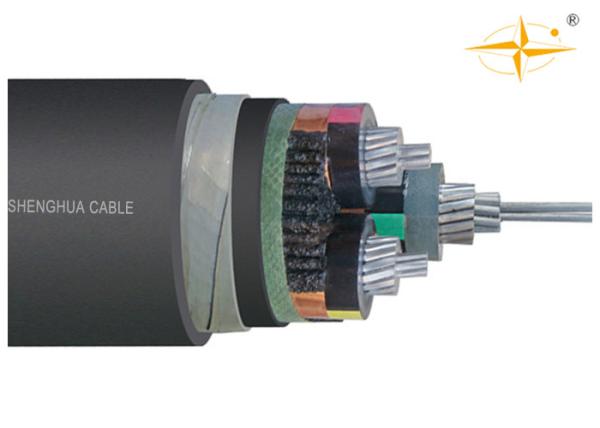

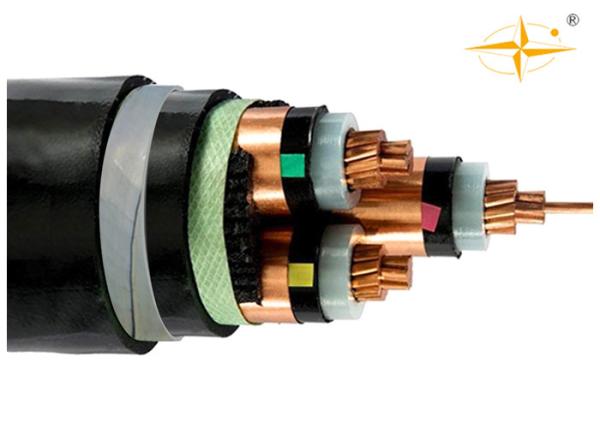

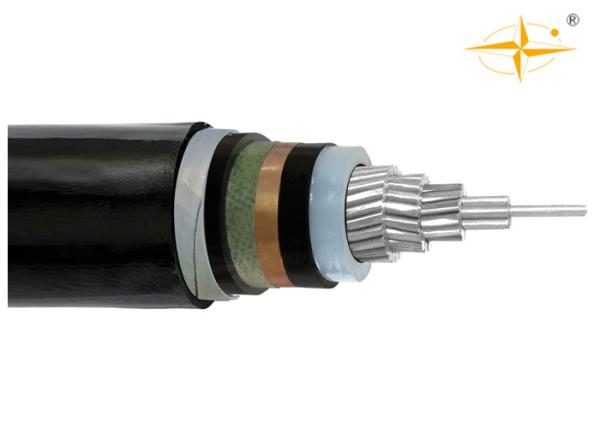

Single Core Three Core Armoured Electrical Cable Medium Voltage Power Cable

Conductor : Compact stranded copper conductor, Cl.2 as per IEC 60228
Insulation : XLPE(cross-linked polyethylene) rated at 90 OC
Inner covering : PVC
Armoring : Aluminum wire
Sheath : PVC type ST2 to IEC 60502, black

CODE Designation:

YJ: XLPE insulation

V: PVC sheath

72: Aluminum wire armoring

Applications:

Suitable for use in power distribution lines with rated voltage 3.6/6KV. For laying in shaft, water underground and large difference of level, able to bear external mechanical pressure and moderate pulling force.

Standards:

International: IEC 60502, IEC 60228

China: GB/T 12706.1-2008

Other standards such as BS,DIN and ICEA upon request

Technical data:

Rated voltage: 0.6 / 1 kV

Maximum Conductor Temperature: under normal (90 OC), emergency (130OC) or short circuit no more than 5 s (250℃) conditions.

Min. Ambient Temp. 0 OC, after installation and only when cable is in a fixed position

Min. Bending Radius: 15 x cable O.D

Certificates:

CE, RoHS, CCC, KEMA and more others at request

Brief technical Specification:

Nom. Cross-section of conductor Strands No./Dia. Of Conductor Insulation Thickness Inner Sheath Thickness Dia. Of Armor Wire Sheath Thickness Approx. O.D. Approx. Weight
mm2 pc/mm mm mm mm mm (mm) kg/km
1 × 25 7/2.14 2.5 1.2 1.6 1.8 24.0 1396
1 × 35 7/2.52 2.5 1.2 1.6 1.8 25.0 1550
1 × 50 10/2.52 2.5 1.2 1.6 1.8 26.0 1754
1 × 70 14/2.52 2.5 1.2 1.6 1.9 28.0 2054
1 × 95 19/2.52 2.5 1.2 1.6 1.9 29.0 2367
1 × 120 24/2.52 2.5 1.2 1.6 2.0 31.0 2701
1 × 150 30/2.52 2.5 1.2 2.0 2.0 33.0 3301
1 × 185 37/2.52 2.5 1.2 2.0 2.1 35.0 3756
1 × 240 48/2.52 2.6 1.2 2.0 2.2 38.0 4458
1 × 300 61/2.52 2.8 1.2 2.0 2.3 40.0 5223
1 × 400 61/2.97 3.0 1.3 2.5 2.4 45.0 6804
1 × 500 61/3.23 3.2 1.3 2.5 2.5 50.0 8094
