0.6/1kV 3x150+1x70 mm2 YJLV22 Armoured Electrical Cable AL/XLPE/STA/PVC Aluminum Power Cable
0.6/1kV 3x150+1x70 mm2 YJLV22 Armoured Electrical Cable AL/XLPE/STA/PVC Aluminum Power Cable
0.6/1kV 3x150+1x70 mm2 YJLV22 Armoured Electrical Cable AL/XLPE/STA/PVC Aluminum Power Cable
0.6/1kV 3x150+1x70 mm2 YJLV22 Armoured Electrical Cable AL/XLPE/STA/PVC Aluminum Power Cable
0.6/1kV 3x150+1x70 mm2 YJLV22 Armoured Electrical Cable AL/XLPE/STA/PVC Aluminum Power Cable
0.6/1kV 3x150+1x70 mm2 YJLV22 Armoured Electrical Cable AL/XLPE/STA/PVC Aluminum Power Cable
0.6/1kV 3x150+1x70 mm2 YJLV22 Armoured Electrical Cable AL/XLPE/STA/PVC Aluminum Power Cable
0.6/1kV 3x150+1x70 mm2 YJLV22 Armoured Electrical Cable AL/XLPE/STA/PVC Aluminum Power Cable
Specifications
Brand Name :
SHANCABLE
Model Number :
YJLV22 0.6/1 3+1
Certification :
ISO,CE,IEC,TUV,KEMA
Place of Origin :
Shanghai, China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
100KM/Week
Delivery Time :
10 Days
Packaging Details :
Wooden Drum
Model name :
Aluminum Power Cable
Rated Voltage :
0.6/1kV
Insulation :
XLPE
Conductor :
AL / Aluminum
Armour :
Steel Tape
Sizes :
1~ 630sqmm
Cores :
3+1cores
Sheath Material :
PVC
Standards :
IEC / BS / IS / VDE
Warranty :
2 years
Corporation :
shenghua group
Brand :
Sh Cable
Description

0.6/1kV 3x150+1x70 mm2 YJLV22 Armoured Electrical Cable AL/XLPE/STA/PVC Aluminum Power Cable

Applications

Used for power transmission and distribution line with voltage rated at 35kV and below.

1,This kind of cable is fit for AC 50HZ, rated voltage 6/6kv(not higher than 7.2kv) electric distribution network and industrial devices fixed laying.

2,It is used in underground power grid of city building, and industrial mining enterprises’ power distribution.

3,It is conform to ZL30TM004097.1-2012 [YJY 0.6/35kV]

4,GB/T 12706-2008 rated voltage 1kV(Um=1.2kV)to 35kV(Um=40.5kV)

Standards

IEC60502, BS6346, VDE, AS/NZS, UL,etc or as customer's request.

The Rated Voltage(kV):

1st class 0.6/1 1.8/3 3.6/6 6/10 8.7/15 12/20 18/30 21/35
2nd class 1/1 3/3 6/6 8.7/10 12/15 18/20 - 26/35


Number of cores:

1, 2, 3, 3+1, 3+2, 3+3, 4, 4+1, 4+2, 5 and so on.

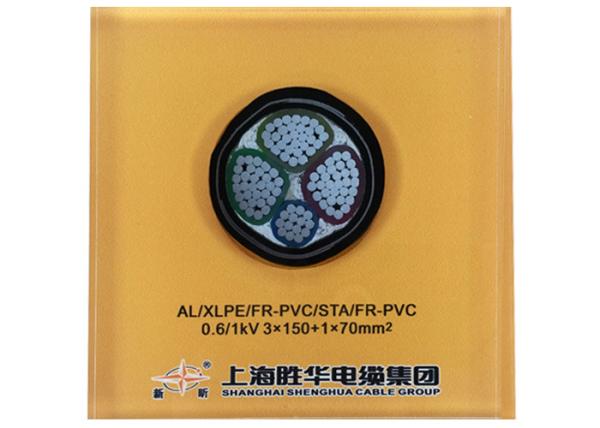

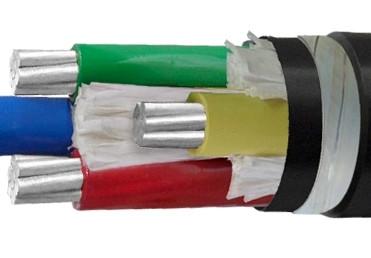

Cable Structure

Conductor Compact Stranded Aluminum Conductor, Class 2 as per IEC 60228
Circular solid AL Conductor, Class 1 as per IEC 60228
Insulation XLPE
Separate Screen Copper Tape, Al-foil tape (MV must, LV optional)
Filler Fillers strip, Yarn, or Paper
Wrapping Tape Non woven
Inner Covering Extruded PVC
Armour Steel Tape armoring
Overall Sheath

PVC

Technique property:

1,The long time working temperature is at 75℃, suffer short circuit (within 5 seconds), the temperature of core can not higher than 160℃

2,The ambient temperature should not lower than -10℃

3,The laying temperature should not lower than 0℃

4,Single core’s bend radius with no armor should not exceed 20D,single core’s bend radius with armor should not exceed than 15D,three cores’ bend radius with armor should not exceed 12D

Note:

1. Only a part of cables are listed in the table. Cables with other specifications can be inquired.

2. Cables can be supplied with a range of single mode or multi mode.
3. Specially designed Cables structure is available on request.

0.6/1kV 3x150+1x70 mm2 YJLV22 Armoured Electrical Cable AL/XLPE/STA/PVC Aluminum Power Cable

PACKING AND SHIPPING

We are capable of meeting the most strict delivery schedules according to per purchase order. Meeting the deadline is always the top priority as any delay in the delivery of cable can contribute to overall project delay and cost overrun.

Cable is supplied in wooden reels, corrugated boxes and coils. Cable ends are sealed with BOPP self adhesive tape and non-hygroscopic sealing caps to protect the cable ends from moisture. The required marking shall be printed with a weather-proof material on the outsides of drum according to customer's requirement.

Services


♦ We are the one of biggest manufacture of electric wire and power cable in China and has more than 20 years producing and marketing experience.
♦ We accept OEM. The cable size and material are customized.Ur own logo and own design are welcome. We will produce according to your requirement and description;
♦ Please send us inquiry for more products info and we will give you feedback in 12 hours.

FAQ

1. Shipping: By sea or air due to heavy weight. Samples will be send by DHL, Fedex. etc
2. Payment: We accept T/T, L/C , just choose what you like
3. Delivery time: Generally 7~10 working days upon receipt deposit. According to the quantity.
4. MOQ: Generally our MOQ is 1000meters. samples below 20 centimeter can be provided freely.
