600/1000V Copper Conductor XLPE Insulated Power cable Electrical cable
600/1000V Copper Conductor XLPE Insulated Power cable Electrical cable
600/1000V Copper Conductor XLPE Insulated Power cable Electrical cable
600/1000V Copper Conductor XLPE Insulated Power cable Electrical cable
600/1000V Copper Conductor XLPE Insulated Power cable Electrical cable
600/1000V Copper Conductor XLPE Insulated Power cable Electrical cable
600/1000V Copper Conductor XLPE Insulated Power cable Electrical cable
600/1000V Copper Conductor XLPE Insulated Power cable Electrical cable
Specifications
Brand Name :
SHANCABLE
Model Number :
YJV
Certification :
ISO,CE,IEC,TUV,KEMA
Place of Origin :
Shanghai, China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
L/C, T/T
Delivery Time :
10 Days
Packaging Details :
Wooden Drum
Insulation color :
natural color or customization
Core :
1.2.3.4.5
Cable Mark :
Ink printing or embossing
Core mark :
ink with Number or color strip
Conductor :
Pure Copper
Outer sheath Color :
Black or customization
Supply Ability :
100KM/Week
Corporation :
shenghua group
Brand :
Sh Cable
Description

600/1000V Copper Conductor XLPE Insulated Power cable Electrical cable

Conductor : Compact stranded copper conductor, Cl.2 as per IEC 60228
Insulation : XLPE(cross-linked polyethylene) rated at 90 OC
Outer sheath : PVC

CODE Designation:

YJ: XLPE insulation

V: PVC sheath

Applications:

Suitable for use in power distribution lines with rated voltage 0.6/1 KV. These cables have a low dielectric loss, used in indoors, in cable ducts, underground, in power or switching stations, local energy distributions, industrial plants, where there is no risk of mechanical damage.

Standards:

International: IEC 60502-1, IEC 60228

China: GB/T 12706.1-2008

Germany: VDE 0276

Britain: BS 7889

Technical data: Rated voltage:0.6/1kV Low Voltage

Maximum Conductor Temperature: under normal (90℃), emergency (130℃) or short circuit no more than 5 s (250℃) conditions.

Min. Ambient Temp. 0 OC, after installation and only when cable is in a fixed position

Min. Bending Radius: 20 x cable O.D for single core without armor

15 x cable O.D for multi core without armor

15 x cable O.D for single core with armor

12 x cable O.D for multi core with armor

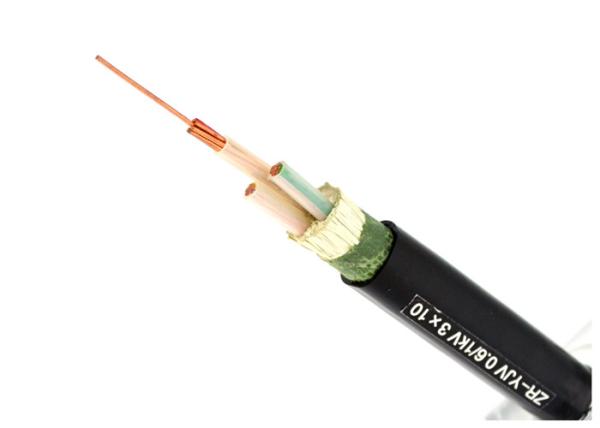

Construction:

  1. Solid or Stranded copper conductor
  2. XLPE insulation
  3. Filler
  4. PVC outer sheath

Ordering Advice

Rated Voltage

Application Standard: IEC/BS/UL/GB

Number of Cores

Conductor Size & Construction

Type of Insulation

Armored or unarmored. If armor, the armor type & material

The Requirement of Sheath

Length of Cable & Packing Requirement

Other Requirement

Certificates:

CE, RoHS, CCC, KEMA and more others at request

Brief technical Specification:

Nom. Cross-section of conductor Strands No./Dia. Of Conductor Insulation Thickness Inner Sheath Thickness Dia. Of Armor Wire Sheath Thickness Approx. O.D. Approx. Weight
mm2 pc/mm mm mm mm mm (mm) kg/km
1 × 25 7/2.14 2.5 1.2 1.6 1.8 24.0 1396
1 × 35 7/2.52 2.5 1.2 1.6 1.8 25.0 1550
1 × 50 10/2.52 2.5 1.2 1.6 1.8 26.0 1754
1 × 70 14/2.52 2.5 1.2 1.6 1.9 28.0 2054
1 × 95 19/2.52 2.5 1.2 1.6 1.9 29.0 2367
1 × 120 24/2.52 2.5 1.2 1.6 2.0 31.0 2701
1 × 150 30/2.52 2.5 1.2 2.0 2.0 33.0 3301
1 × 185 37/2.52 2.5 1.2 2.0 2.1 35.0 3756
1 × 240 48/2.52 2.6 1.2 2.0 2.2 38.0 4458
1 × 300 61/2.52 2.8 1.2 2.0 2.3 40.0 5223
1 × 400 61/2.97 3.0 1.3 2.5 2.4 45.0 6804
1 × 500 61/3.23 3.2 1.3 2.5 2.5 50.0 8094
