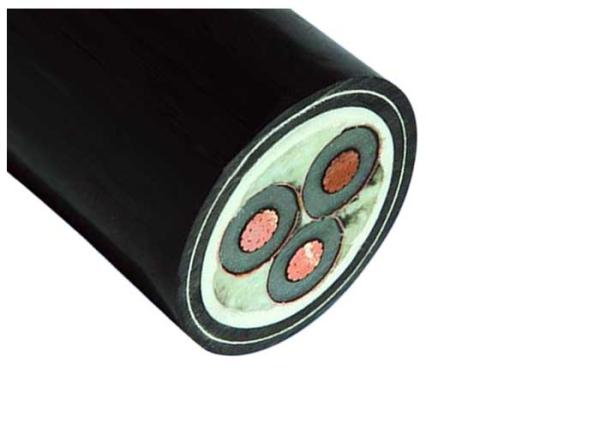

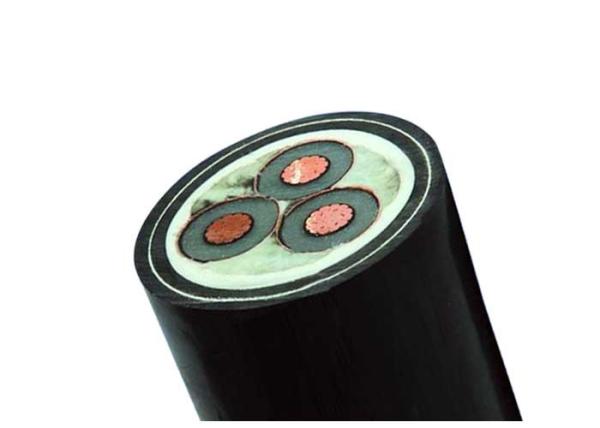

MV TR-XLPE Insulated URD armoured power cable Core Three Medium Voltage
MV TR-XLPE Insulated URD armoured power cable Core Three Medium Voltage
MV TR-XLPE Insulated URD armoured power cable Core Three Medium Voltage
MV TR-XLPE Insulated URD armoured power cable Core Three Medium Voltage
MV TR-XLPE Insulated URD armoured power cable Core Three Medium Voltage
MV TR-XLPE Insulated URD armoured power cable Core Three Medium Voltage
MV TR-XLPE Insulated URD armoured power cable Core Three Medium Voltage
MV TR-XLPE Insulated URD armoured power cable Core Three Medium Voltage
Specifications
Brand Name :
SHANCABLE
Model Number :
YJV22-12.7/22KV 3x120SQMM
Certification :
ISO,CE,IEC,TUV,KEMA
Place of Origin :
Shanghai, China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
100KM/Week
Delivery Time :
10 Days
Packaging Details :
Wooden Drum
Construction :
CU/XLPE/CWS/PVC/STA/PVC
Outer sheath Material :
PVC or Flame-retardant PVC
Test Voltage: :
24KV
Warranty :
2 Years
Conductor :
Stranded Copper
Core :
Three
Corporation :
shenghua group
Brand :
Sh Cable
Description

MV TR-XLPE URD Cable,Medium Voltage TR-XLPE Insulated URD Armoured Electrical Cable

Property:
1). 15KV,25KV, 35kv TR-XLPE Insulation
2). 100% Insulation
3). Concentric Neutral
4). Maximum Conductor Temperature: Normal continuous 90°C, Overload 130°C, Short Circuit 250°C

Application:
Medium-Voltage TR-XLPE Power Cable is suitable for Primary underground Distribution System; buried directly or installed in underground ducts or conduits or exposed to sunlight for above ground application. To be used a 15,000 volts or less. Rated for continuous operation at 90℃ conductor temperature.

Construction:

Conductor Bare aluminum or copper stranded class B conductor (compressed stranding)
Strand Shield Extruded semi-conducting strand shield
Insulation Cross-linked polyethylene (XLPE) or tree-retardant cross-linked polyethylene (XLPE-TR) insulation
Insulation Shield Extruded semi-conducting insulation shield
Neutral Wires Coated or uncoated copper concentric neutral wires
Embedded Jacket Non-conducting linear low density PE (LLDPE) encapsulating jacket with extruded red stripes. Optional semi-conducting PE jacket

Six main type of TR-XLPE power cables for Medium-Voltage Primary Distribution:

15kV TR-XLPE URD Cable 100% Insulation Level
15kV TR-XLPE URD Cable 133% Insulation Level
25kV TR-XLPE URD Cable 100% Insulation Level
25kV TR-XLPE URD Cable 133% Insulation Level
35kV TR-XLPE URD Cable 100% Insulation Level
35kV TR-XLPE URD Cable 133% Insulation Level
