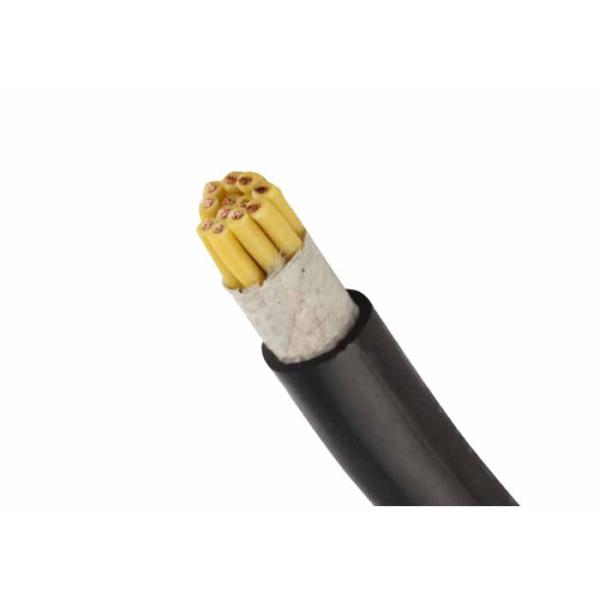

Multi Cores Al-foil Screen PVC Sheathed Control Wire Tinned Copper Wire Brain Screened Cable
Multi Cores Al-foil Screen PVC Sheathed Control Wire Tinned Copper Wire Brain Screened Cable
Multi Cores Al-foil Screen PVC Sheathed Control Wire Tinned Copper Wire Brain Screened Cable
Multi Cores Al-foil Screen PVC Sheathed Control Wire Tinned Copper Wire Brain Screened Cable
Multi Cores Al-foil Screen PVC Sheathed Control Wire Tinned Copper Wire Brain Screened Cable
Multi Cores Al-foil Screen PVC Sheathed Control Wire Tinned Copper Wire Brain Screened Cable
Specifications
Brand Name :
SHAN CABLE
Model Number :
KVVP3 KVVP
Certification :
CE/KEMA/CCC
Place of Origin :
SHANGHAI CHINA
MOQ :
2000m
Price :
0.5-33.5 $/M
Supply Ability :
40KM per Week
Delivery Time :
2 weeks
Packaging Details :
Wooden Steel Drum
Core :
2 to 61
Screen :
Al-foil or Tinned Copper Wire Brain Double Screen
Color :
Black
Crosssection :
2.5mm2 to 10mm2
Conductor type :
Class 1 or Class 2
Drain Wire :
Copper Wire or Tinned Copper Wire
Conductor :
Copper
Corporation :
shenghua group
Brand :
Sh Cable
Description

Multi Cores Al-foil Screen PVC Sheathed Control Cable Tinned Copper Wire Brain Screened Cable

Construction

Conductor: Solid or Stranded or Flexible Copper Conductor

Insualtion: PVC

Screen: Al-foil Screen with Tinned Drain Wire or Tinned Copper Wire Brain Screen.

Sheath: PVC

Application

For system connection wire of control, signal, protection or measuring with rated voltage up to and including 450/750V.

Why Choose Screen Control Cable

Reduce the impact of external current transmission, Keep safe and Correctly.

Standard

IEC Standard: IEC 60227, IEC60228

China Standard: GB9330

Other standards such as BS,DIN and ICEA upon request

Certificates

CE, RoHS, CCC, KEMA and more others at request

Operating characteristics

Rated voltages U0/U: 450/750V

Permissible Max. continuous operating temperature of conductor:

PVC insulated: 70°C

Upon short circuit (Max. Duration time 5s) the Max.

temperature of conductor not higher than:

PVC insulated: 160°C;

Ambient temperature of installation not less than 0°C.

Brain density:≥80%

Cross-Sectional
Area mm2		 Thickness of
Insulation mm

Thickness of
Al-foil

mm

 Thickness of
Sheath mm		 Overall Diameter
mm		 Min resistance of
insulation at
70℃ MΩ/km		 Max.D.C resistance
of at 20℃
MΩ/km		 Approx Weight
(kg/km)
min max
4x2.5 0.8 0.3 1.5 13.4 16.1 0.001 7.98 450
4x4 0.8 0.3 1.5 14.4 17.4 0.0085 4.95 505
4x6 0.8 0.3 1.5 15.6 18.8 0.007 3.3 619
4x10 1 0.3 1.7 19.4 23.5 0.0065 1.91 947
5x2.5 0.8 0.3 1.5 14.3 17.2 0.001 7.98 506
5x4 0.8 0.3 1.5 15.4 18.6 0.0085 4.95 586
5x6 0.8 0.3 1.7 16.7 20.2 0.007 3.3 737
5x10 1 0.3 1.7 21 25.4 0.0065 1.91 1125
7x0.75 0.6 0.3 1.5 11.8 14.2 0.012 26 317
7x1.0 0.6 0.3 1.5 12.2 14.7 0.011 19.5 425
7x2.5 0.7 0.3 1.5 13.5 16.3 0.01 7.98 554
7x4 0.8 0.3 1.5 15.2 18.4 0.0085 4.95 701
7x6 0.8 0.3 1.7 18 21.7 0.007 3.30 900
7x10 1 0.3 1.7 22.7 27.4 0.0065 1.91 1397
10x0.75 0.6 0.3 1.5 13.8 16.7 0.012 26 449
10x1 0.6 0.3 1.5 14.4 17.4 0.011 19.5 558
10x1.5 0.7 0.3 1.5 16.1 19.5 0.011 13.3 753
10x2.5 0.8 0.3 1.7 18.8 22.7 0.01 7.98 956
10x4 0.8 0.3 1.7 20.5 24.8 0.0085 4.95 1203
10x6 0.8 0.3 1.7 22.5 27.1 0.007 3.3 1534

Company Committment

Here's Shanghai Shenghua Cable Is Committed to Offer for Every Customer:

High quality cable product with competitive price;

OEM cable product

Custom design per specific cable requirements and budgets;

Fast and on-time delivery of cable;

Flexible business deal;

Chief cable engineer with over 40 years' experience;

Harmonious colleague and customer relationship;

All cable products 100% Inspection;

Comprehensive after-sale service.
